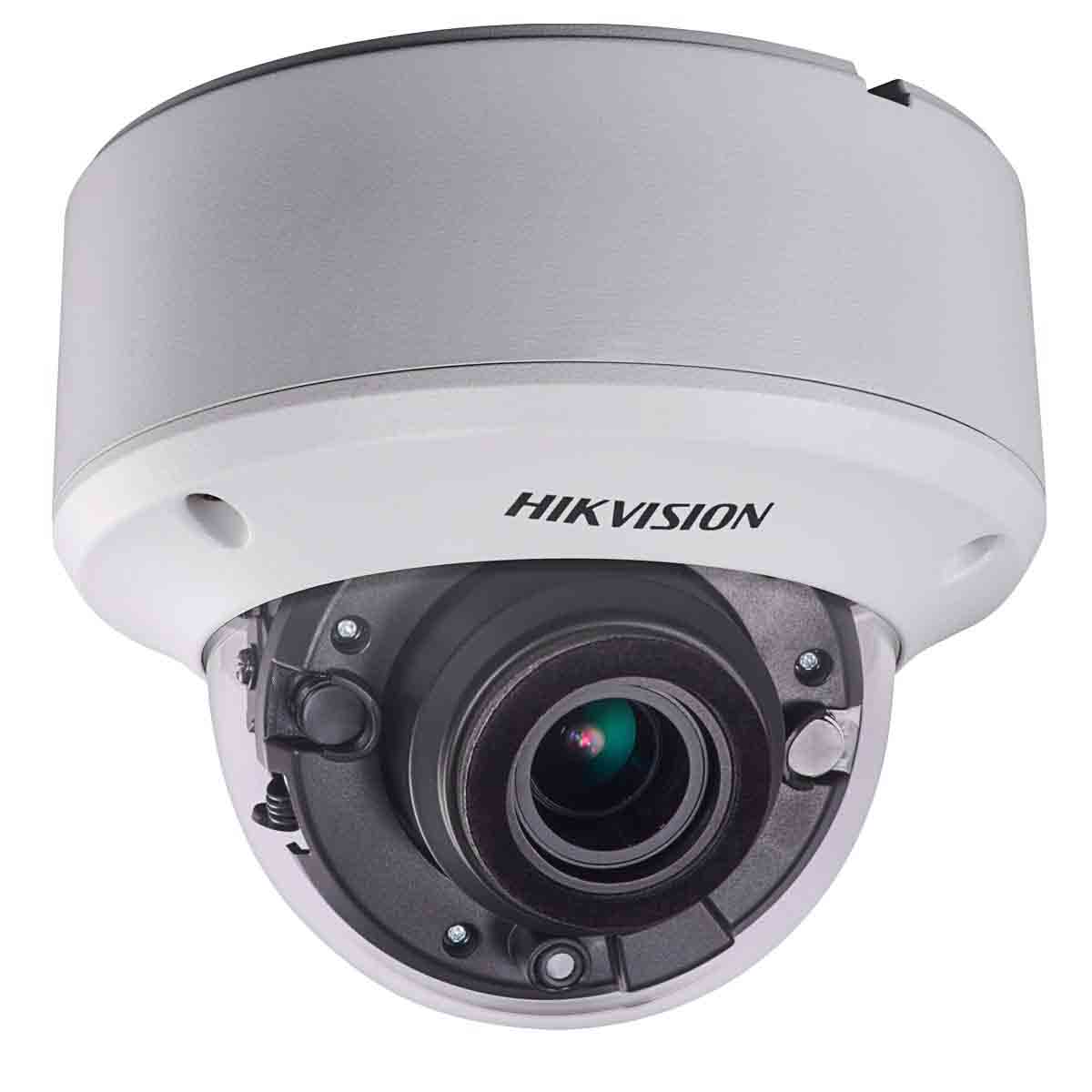

DS-2CE59U8T-VPIT3Z Hikvision HD-TVI Ultra Low Light 8MP (4k UHD) Motorised Zoom IK10 Vandal Dome Camera with 60M EXIR Night Vision
Product ID DS-2CE59U8T-VPIT3Z

DS-2CE59U8T-VPIT3Z Hikvision HD-TVI Ultra Low Light 8MP (4k UHD) Motorised Zoom IK10 Vandal Dome Camera with 60M EXIR Night Vision

Trade Only Item
In Stock 0
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV
Happy Bday
Happy Bday
Happy Bday

Free Shipping


  • Summary
  • Full Spec
  • Diagram

Key Features

  • 8.29 Megapixel high-performance CMOS
  • Analog HD output, up to 8MP (3840 × 2160) resolution
  • Ultra-low light
  • Auto focus, 2.8 mm to 12 mm motorized vari-focal lens
  • 120 dB true WDR, 3D DNR
  • EXIR 2.0, smart IR, up to 60m IR distance
  • IP67 weatherproof, IK10
  • Up the Coax(HIKVISION-C)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

Compatible with Hikvision HD-TVI recorders that must be capable of recording 8MP resolution only like the "HTHI" range.

Camera
Image Sensor 8.29 MP high performance CMOS
Effective Pixels 3840 (H) x 2160 (V)
Min. Illumination Color: 0.003 Lux@ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/12.5 s to 1/10,000 s
Lens 2.8mm to 12mm - Angle of View: 108.1° to 45.6°
Lens Mount Φ14
Adjustment Range Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355°
Day & Night IR cut filter with auto switch
Video Frame Rate PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps
HD Video Output 1 Analog HD output
Synchronization Internal synchronization
WDR (wide dynamic range) 120dB
Menu
D/N Mode Auto / Color / B/W
Auto White Balance Auto/Manual/Natural
BLC Support
AGC Support
Language English
General
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 9W
Weather Proof Ratings IP67
Protection Ratings IK10
IR Range up to 60m
Communication Up the coax
Protocol: HIKVISION-C (TVI output)

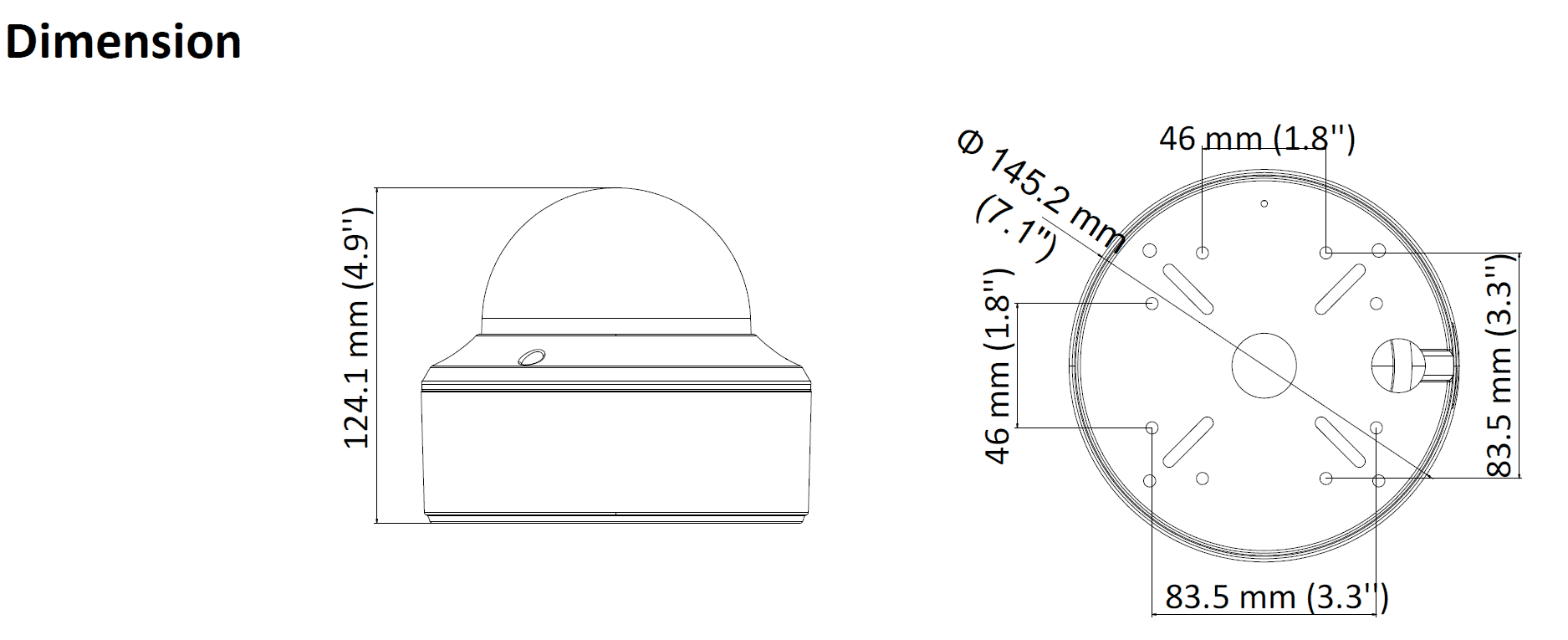

Dimensions Φ 145.2 mm x 124.1 mm
Weight Approx. 645g
