| Video / Audio Input |
| Video compression |
H.264, H.264+ |
| Analog and HD-TVI Video Input |
8CH; BNC interface (1.0Vp-p, 75 Ω) |
| HD-TVI Input |
1080p25, 1080p30, 720p25, 720p30 |
| AHD Input |
1080p25, 1080p30, 720p25, 720p30 |
| CVI Input |
1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input |
Support |
| IP Video Input |
2-ch Up to 960P resolution |
| Audio compression |
G.711u |
| Audio input / Two-way audio in |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Video / Audio Output |
| HDMI / VGA output |
1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution |
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF |
| Frame rate |
Main stream:
1080p lite mode enabled: 1080p lite/720p lite@12fps
1080p lite mode disabled: 720p @12fps
Sub-stream:
CIF/QVGA/QCIF@25fps |
| Video bit rate |
32 Kbps - 4 Mbps |
| Audio output |
1-ch, RCA (Linear, 1KΩ) |
| Audio bit rate |
64 Kbps |
| Dual-stream |
Support |
| Stream type |
Video, Video & Audio |
| Synchronous playback |
8CH |
| Network Management |
| Remote Connections |
128 |
| Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPâ„¢, HTTPS |
| Hard Disk |
| SATA |
1 SATA interface |
| Capacity |
Up to 6 TB capacity |

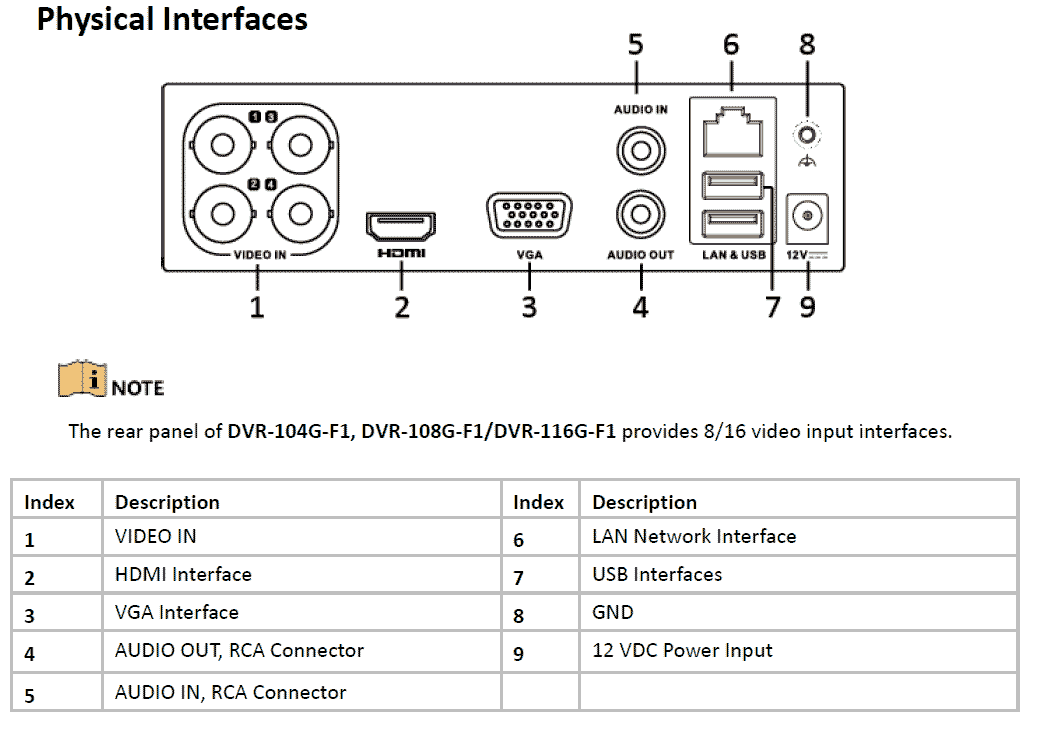

| External Interface |
| Network interface |
1; 10M / 100M self-adaptive Ethernet interface |
| USB interface |
Rear panel: 2 x USB2.0 |
| General |
| Power supply |
12v DC |
| Consumption |
Max 12W |
| Working temperature |
-10 °C ~ +55 °C |
| Working humidity |
10% ~ 90% |
| Dimensions (W x D x H) |
200 × 200 × 45 mm |
| Weight |
Approx. 0.8Kg |
