NVR-216MH-C-16P HiLook by Hikvision 16 Channel H.265 8MP NVR with 16 PoE Ports

Product ID NVR-216MH-C-16P
0 reviews | Write a review
£234.00
£234.00
Quantity
-
+
3 Year Warranty
IP CCTV

Free Shipping

  • Summary
  • Full Spec

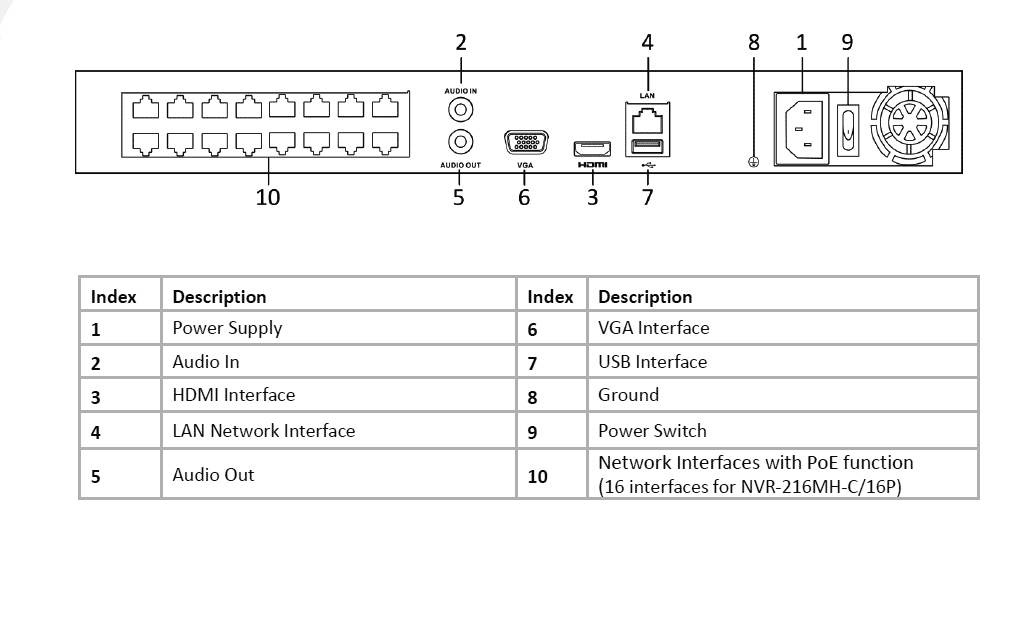

  • Diagram

Key Features

  • 16CH Video Input
  • H.265+/H.265 compression
  • 160Mbps
  • Up to 8 Megapixels resolution recording
  • HDMI and VGA Output
  • 16 independent PoE network interfaces

Download

Manufacturers Spec Sheet (PDF)

IP video input 16CH
Incoming bandwidth 160Mbps
Outgoing bandwidth 80Mbps
Recording resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
HDMI output 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA output 1CH, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio output 1-ch, RCA (Linear, 1 KΩ)
Decoding format H.265+/H.265/ H.264+/H.264
Live View / Playback resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback 16-ch
Decoding 1-ch @ 8 MP / 4-ch @ 1080p
SATA 2 SATA interface
Capacity Up to 6TB each disk
Network interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface 2, USB2.0
Alarm Input n/a
Alarm Output n/a
PoE Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface, < 150W, IEEE 802.3 af/at
Power supply 100 to 240 VAC
Consumption Max 280W
Consumption (without hard disk) Max 15
Working temperature -10 °C ~ +55 °C
Working humidity 10% ~ 90%
Dimensions (W x D x H) 385 x 315 x 52 mm
Weight Approx. 3Kg (without hdd)
