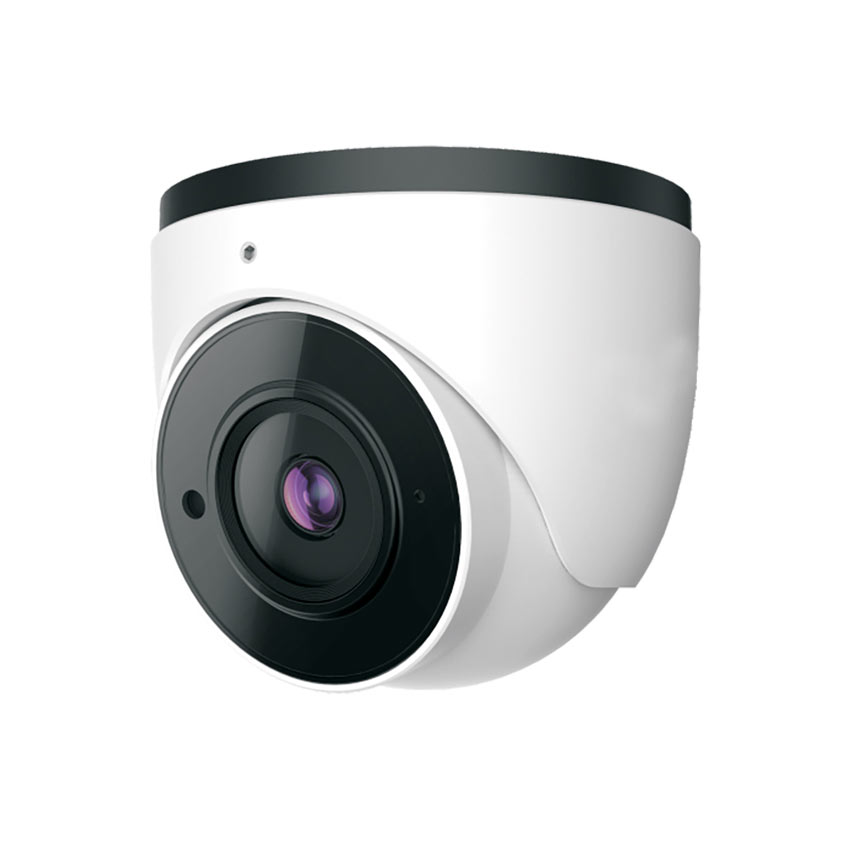

EYEVIP4K-FW OYN-X 8MP Eyeball Dome IP Camera with up to 30m Night Vision & PoE
Product ID EYEVIP4K-FW

EYEVIP4K-FW OYN-X 8MP Eyeball Dome IP Camera with up to 30m Night Vision & PoE

£119.00
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • Max. resolution: 8MP (3840 × 2160)
  • 3.6mm Lens - Viewing angle 87.7°
  • ICR auto switch, true day / night
  • 20 ~ 30m IR night view distance
  • PoE
  • IP66
  • Plug & play with ALL OYN-X "Falcon" NVR’S

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor 1 / 2.5 “CMOS
Min. Illumination 0.024 lux @F1.2, AGC ON; 0 lux with IR
Shutter Time 1/25s ~ 1/100,000s
Lens 3.6mm
Lens Mount M12
Day & Night ICR
WDR Digital WDR
Digital noise reduction 2D / 3D DNR
Video compression H.265 / H.264 / MJPEG
Resolution 8MP (3840×2160), 2K (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, CIF, 480×240
Frame rate Main stream: 8MP (1 ~ 15fps) / 2K (1 ~ 30fps) / (1 ~ 30fps) / 1080P (1 ~ 30fps) / 720P (1 ~ 30fps)
Bit rate 128 Kbps ~ 16 Mbps
Encode Mode VBR / CBR
Quality Five levels under VBR; Freely adjustable under CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
Audio Compression n/a
ROI Each ROI to be configured separately
Interfaces
Network 1 RJ45
Built in Mic No
Functions
Remote Monitoring IE browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users;
Support multi-stream real time transmission
Network Protocol TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol ONVIF, GB-T/28181-2011
Storage Network remote storage
Smart Alarm Motion Alarm
PoE Support
IR Distance 20 - 30m
Weather-Proof IP67
General
Power Supply 12 VDC / PoE
Power Consumption Max. 6W
Operating Conditions -30 °C ~ 60°C; Humidity: less than 95 % (non-condensing)
Dimensions Φ94.6 × 82.8
Weight Approx. 450g

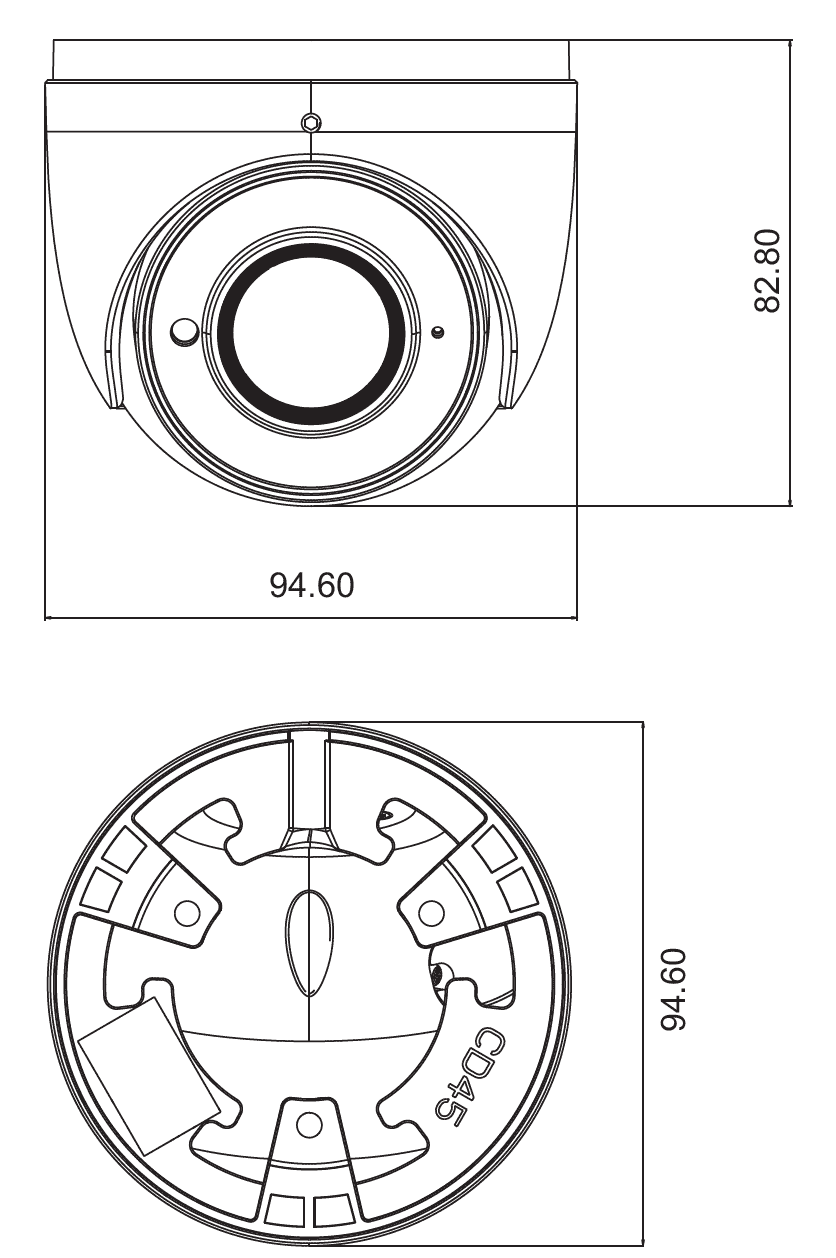

dvr dimensions
