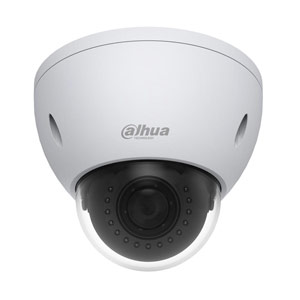

HAC-HDBW3220E-Z Dahua HD-CVI 1080P Motorised Zoom Dome Camera with 50M Night Vision & Alarm/Audio Inputs
Product Code HAC-HDBW3220E-Z

HAC-HDBW3220E-Z Dahua HD-CVI 1080P Motorised Zoom Dome Camera with 50M Night Vision & Alarm/Audio Inputs

£208.50
0 reviews | Write a review
3 Year Warranty
HD-CVI CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 1/2.8" 2.4Megapixel CMOS
  • 25fps@1080P, 25/50fps@720P
  • High speed, long distance real-time transmission
  • HD and SD switchable, Tester out
  • OSD Menu, control over coaxial cable
  • DWDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR
  • Audio, Alarm
  • 2.7~12mm motorised lens, Auto Iris
  • Max. IR LEDs length 50m, Smart IR
  • IP67, IK10, AC24V/DC12V

Download

Manufacturers Spec Sheet (PDF)

Compatibility

For use with HD-CVI recorders ONLY.

Camera
Image Sensor 1/2.8" 2.4Megapixel CMOS
Effective Pixels 1984(H) × 1225(V)
Electronic Shutter 1/3s~1/100,000s
Video Frame Rate 25/50fps@720P; 25fps@1080P
Synchronization Internal
Min. Illumination 0.05Lux/F1.4, 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Tester out
Camera Features
Max. IR LEDs Length 50m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 2D/3D
OSD Menu Support
Lens
Focal Length 2.7~12mm
Angle of View H: 93º~35º
Lens Type Motorised / Auto Iris
Mount Type Φ14
Auxiliary Functions
Alarm 1 channel in/out
Audio 1 channel in
General
Power Supply AC24V±10% / DC12V±10%
Power Consumption Max 8.4W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance
(Video & Data)
Over 500m via 75-3 coaxial cable
Ingress Protection IP67 & IK10

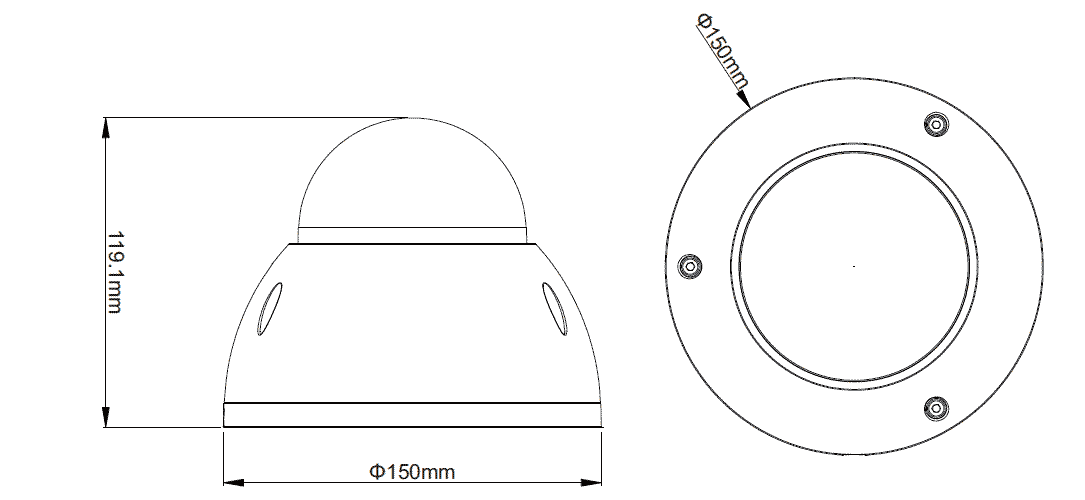

Dimensions Φ150mm × 119.1mm
Weight 0.8kg
Material Metal
