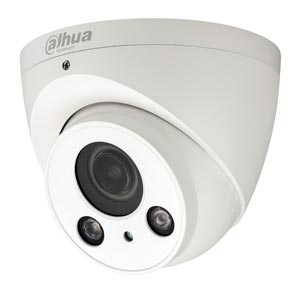

HAC-HDW2220R-Z Dahua HD-CVI 1080P Motorised Zoom Dome Camera with 60M Night Vision
Product ID HAC-HDW2220R-Z

HAC-HDW2220R-Z Dahua HD-CVI 1080P Motorised Zoom Dome Camera with 60M Night Vision

£118.50
In Stock 0
Sold out

0 reviews | Write a review
3 Year Warranty
HD-CVI CCTV
Happy Bday
Happy Bday
Happy Bday

Free Shipping


  • Summary
  • Full Spec

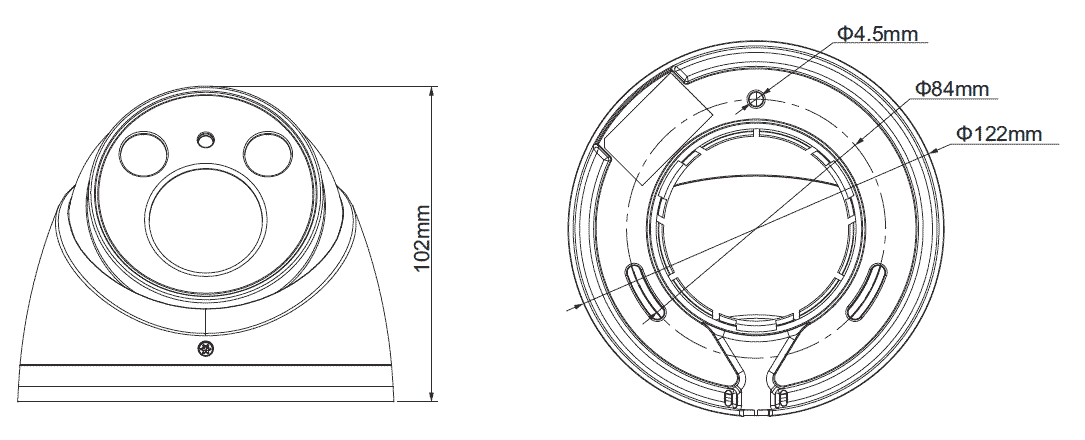

  • Diagram

Key Features

  • 1/2.8" 2.4Megapixel CMOS
  • 25fps@1080P, 25/50fps@720P
  • High speed, long distance real-time transmission
  • HD and SD switchable
  • OSD Menu, control over coaxial cable
  • DWDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR
  • 2.7~12mm motorised lens
  • Max. IR LEDs length 60m, Smart IR
  • IP67, DC12V

Download

Manufacturers Spec Sheet (PDF)

Compatibility

For use with HD-CVI recorders ONLY.

Camera
Image Sensor 1/2.8" 2.4Megapixel CMOS
Effective Pixels 1984(H) × 1225(V)
Electronic Shutter 1/3s~1/100,000s
Video Frame Rate 25/50fps@720P; 25fps@1080P
Synchronization Internal
Min. Illumination 0.05Lux/F1.4, 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length 60m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 2D/3D
OSD Menu Support
Lens
Focal Length 2.7~12mm
Angle of View H: 99º~34º
Lens Type Motorised / Fixed Iris
Mount Type Φ14
General
Power Supply DC12V±20%
Power Consumption Max 6.8W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance
(Video & Data)		 Over 500m via 75-3 coaxial cable
Ingress Protection IP67
Dimensions Φ122mm × 102mm
Weight 0.55kg
Material Metal
