HAC-HDW2401EM Dahua HD-CVI 120dB WDR 4MP Eyeball Dome Camera with 50M Night Vision
Product ID HAC-HDW2401EM

HAC-HDW2401EM Dahua HD-CVI 120dB WDR 4MP Eyeball Dome Camera with 50M Night Vision

Login for Price
Was £75.90save £27.90
0 reviews | Write a review
3 Year Warranty
HD-CVI CCTV

  • Summary
  • Full Spec

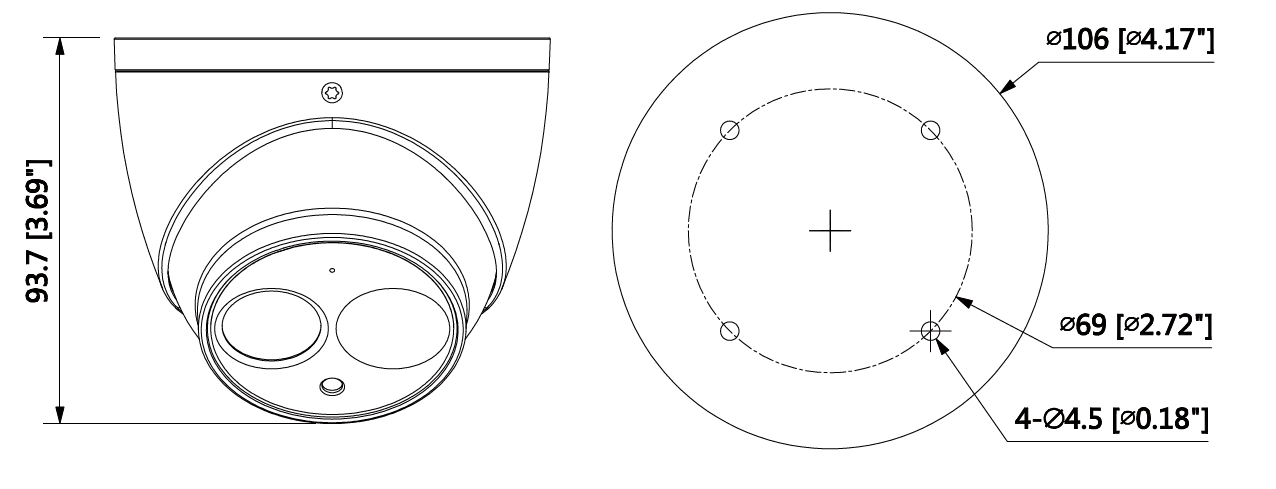

  • Diagram

Key Features

  • Max 4MP real-time
  • 120dB True WDR, 3DNR
  • 2.8mmmm fixed lens (99.7°)
  • Max. IR length 50m, Smart IR
  • IP67, DC12V

Download

Manufacturers Spec Sheet (PDF)

Compatibility

For use with HD-CVI recorders ONLY.

For 4MP resolution a 7000-4M series recorder is required

Camera
Image Sensor 1/3" CMOS
Effective Pixels 2688(H)×1520(V), 4.1MP
Scanning System Progressive
Electronic Shutter PAL: 1/4s~1/100,000s
Min. Illumination 0.01Lux/F1.5, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 50m (164feet)
IR On/Off Control Auto / Manual
IR LEDs 1
Lens
Lens Type Fixed lens / Fixed iris
Focal Length 2.8mm
Angle of View H: 99.7°
Max Aperture F1.5
Focus Control n/a
Pan / Tilt / Rotation
Pan / Tilt / Rotation Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
Video
Resolution 4MP (2560×1440)
Frame Rate 25fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual
Interface
Audio Interface N/A
Eelectrical
Power Supply DC12V ±25%
Power Consumption Max 5.3W
Environmental
Operating Conditions -30°C~+60°C / Less than 90% RH
* Start up should be done at above -30°C
Storage Conditions -30°C~+60°C / Less than 90% RH
Ingress Protection & Vandal Resistance IP67
Environmental
Casing Aluminium
Dimensions Φ106mm × 93.7mm
Weight 0.44kg
