Product ID HCVR7216AN-4M

HCVR7216AN-4M Dahua 16 Channel 4MP / 1080P HD-CVI Hybrid DVR

In Stock 0
0 reviews | Write a review
3 Year Warranty

Free Shipping

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 16ch 4MP HD-CVI DVR
  • H.264+/H.264 dual-stream video compression
  • Support HDCVI/CVBS video inputs
  • Additional 8 IP camera inputs (via LAN), each channel up to 8MP
  • Max 96Mbps Incoming Bandwidth
  • HDMI output up to 4K (3840 x 2160) resolution
  • Smart Search and Intelligent Video System


Manufacturers Spec Sheet (PDF)


  • Analogue: Any Analogue Cameras
  • HD-CVI: Any Dahua HD-CVI Camera (up to 4MP)
  • IP: Any Dahua Manufactured IP Camera (up to 8MP)
  • System
    Main Processor Embedded processor
    Operating System Embedded Linux
    Interface 1 HDMI(up to 3840x2160),1 VGA
    Resolution 3840x2160,1920×1080, 1280×1024, 1280×720, 1024×768
    Display Split 16CH: 1/4/8/9/16/25
    OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
    Video Detection & Alarm
    Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
    Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss, Tampering and Diagnosis
    Alarm Input n/a
    Relay Output n/a
    Playback & Backup
    Sync Playback 16CH: 1/4/9/16
    Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
    Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
    Backup Mode USB Device / Network
    Internal HDD 2 SATA Port, up to 8TB capacity for each disk
    eSATA n/a
    Auxiliary Interface
    USB Interface 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
    RS485 1 port for PTZ Control
    Audio and Video
    HDCVI Camera Input 16 Channel, BNC
    IP Camera Input 16+8 Channel, each channel up to 8MP
    Audio Input/Output 1/1, RCA
    Two-way Talk Reuse audio in/out, RCA
    Compression H.264+/H.264
    Resolution 4K, 4MP, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
    Record Rate Main stream: 1st channel 4K(1~12/15fps)/ 4MP(1~15fps), others 4MP(1~15fps);
    1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
    Sub steram:D1/CIF/QCIF(1~25/30fps)
    Bit Rate 1Kbps ~ 12288Kbps Per Channel
    Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
    Recording Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
    Interface 1 RJ-45 Port (1000M)
    Network Functions HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
    Max. User Access 128 users
    Smart Phone iPhone, iPad, Android
    Interoperability ONVIF 2.4.2, CGI Conformant
    Power Supply DC12V/5A
    Power Consumption 15W(without HDD)
    Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 0 ~ 90% RH
    Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

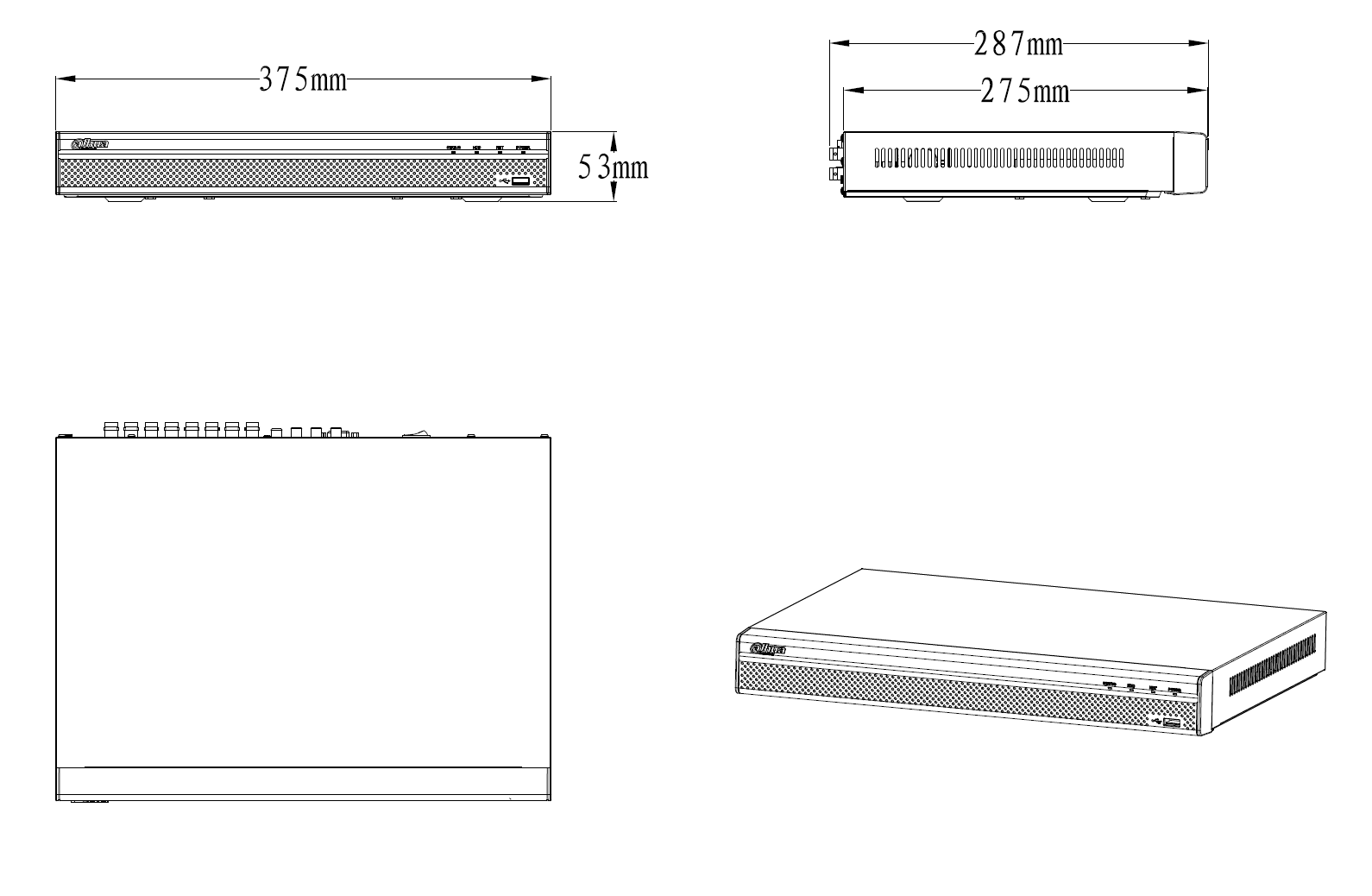

    Dimension 1U, 375mm×287mm×53mm
    Net Weight 3.2kg (without HDD)
