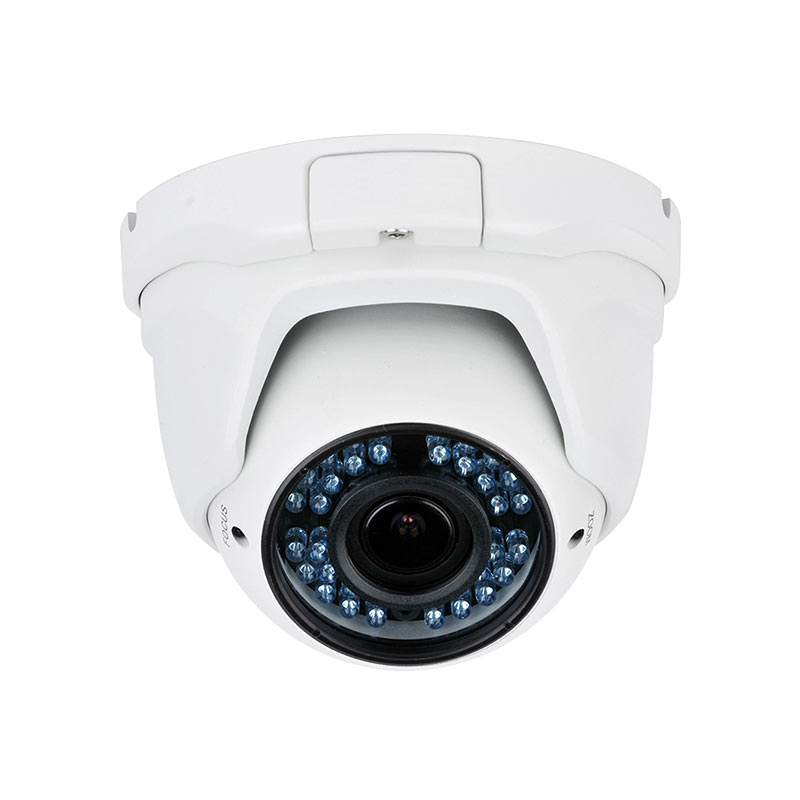

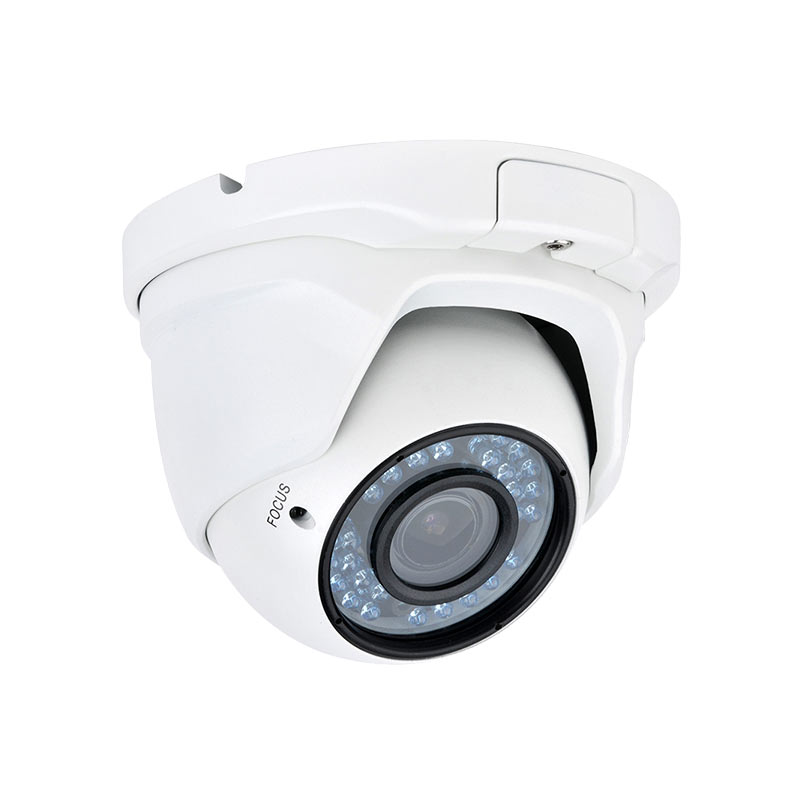

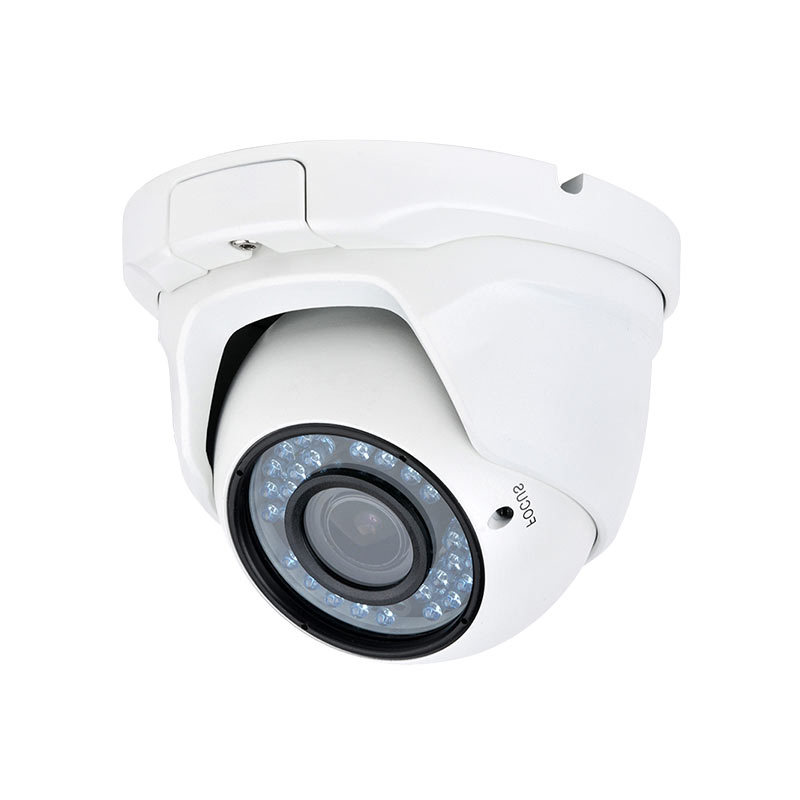

IP4MVDW iSentry 4.0 MegaPixel Manual Zoom IP Dome Camera with 30m IR Night Vision & PoE
Product Code IP4MVDW

IP4MVDW iSentry 4.0 MegaPixel Manual Zoom IP Dome Camera with 30m IR Night Vision & PoE

£110.00
Rating: 5/5 based on 1 review
1 Year Warranty
IP CCTV
Only 1 in Stock

  • Summary
  • Full Spec

Description

The IP4MVDW is capable of 4 Megapixel (2688 x 1520) resolution at up to 15fps - that's twice the resolution of 1080P - and housed in a very sleek metal dome casing it is suitable for many security applications.

The camera also has a 2.8 to 12mm Vari-focal lens, allowing you to adjust the angle of view to get the perfect picture - please note this is a manual adjustment you will make during the installation process.

The camera has 42 LEDs which provide night vision up to 30 metres in complete.

As with all IP products, we strongly advise sticking with brand - and hence only recommend using this camera with the iSentry range of NVRs.

Key Features

  • 4MP @ 15FPS or 3MP/2MP @ 25FPS
  • 2.8-12mm Manual Vari-Focal Lens,
  • 42 Leds ,up to 30 meters IR range
  • Support True D/N, 3D-DNR, DWDR and BLC, Region of Interest
  • ONVIF2.4, CGI & SDK
  • IP66
  • POE: IEEE 802.3af
Camera
Sensor/DSP 1/3" Progressive Scan CMOS
Day / Night ICR
Min. Illumination 0.1lux @F1.2,AGC on,0 lux with IR on
Lens 2.8-12mm Manual VF Lens
IR LED 42 LEDs
IR Distance up to 30m
Electronic Shutter 1/20~1/30000s
Video
Compression H.264 / MJPEG
Max.image Resolution 2688 x 1520 (4 Megapixel)
Frame rate 15fps (2688 x 1520)
Bit rate Main Stream: 1000~12000kps ; Sub Stream: 512~2048kbps
Network
Protocols TCP/IP, UDP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP, NTP
Compliance ONVIF V2.4(1.02 backward compatible), CGI
PC Client and Browser ISS, IE6.0 and above, Google Chrome, Mozilla Firefox, Mac Safari
Mobile phone iPhone, iPad, Android
WIFI n/a
WIFI Encryption n/a
3G Network n/a
Interface
Video Output n/a
Audio Input n/a
Audio Output n/a
Alarm Input n/a
Alarm Output n/a
LAN 1 RJ45 10M / 100M Ethernet port
RS-485 n/a
Storage Interface Built-in micro sd slot, up to 64GB
PIR n/a
Reset Button n/a
General
Working temperature -10 °C ~ +50 °C
Working humidity 0% ~ 90%
Weather Proof Ratings IP66
Impact protection n/a
Power Supply 12 VDC ± 10% , PoE (802.3af)
Power Consumption 4.6W IR ON , 2.8W IR OFF
Dimensions 145 x 134 x 91mm
Weight Approx. 750g

1 Product Reviews - Average rating 5 / 5 (Show All)

Review product

Well made, Easy to setup

- 27/02/2017

Have just installed 2x of these at my parents house. Camera is easy to install and to setup. Plug and play Power over Ethernet meant it was a simple single cable that was required.
wide field of vision and the option to adjust on installation meant the cameras were very flexible.
Night Vision IR is good and the camera gives an excellent quality picture.

Only criticism is the the connector and power cable is a single unit, making it unsightly and difficult to conceal if mounting to a wall. It would have been nice if the camera came with a tail so the Ethernet / Power connector could be located away from the camera body.

Lack of detailed instructions a little disappointing, but if you are competent at DIY, shouldn't be much of an issue.
