| Camera |
| Image Sensor |
1/2.8” Progressive Scan CMOS |
| Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) |
| Shutter Time |
1/3s ~ 1/100,000s |
| Lens |
2.8mm @ F2.0 - horizontal field of view 114.5° |
| Lens Mount |
M12 |
| Day & Night |
IR Cut Filter |
| IR Range |
up to 30m |
| Adjustment Range: (Manual) |
Pan:0° - 360°, Tilt: -90° to 90°, Rotation: 0° to 90° |
| Digital noise reduction |
3D DNR |
| WDR |
Digital WDR |
| Compression Standard |
| Video compression |
Main stream: H.264
Sub stream: H.264/MJPEG |
| H.264 Type |
Baseline Profile/Main Profile |
| H.265 Type |
Not Supported |
| Bit rate |
32 Kbps ~ 8 Mbps |
| Audio Compression |
G.711 /G.722.1 /G.726 /MP2L2 /PCM |
| Audio Bit Rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 192Kbps(MP2L2) |
| Image |
| Max. Image Resolution |
1920 × 1080 |
| Main Stream |
50Hz: 25fps(1920x1080 / 1280x960 / 1280x720) |
| Sub Stream |
50Hz: 25fps(640x480 / 320x240) |
| Image Enhancement |
BLC, 3D DNR |
| Image settings |
Rotate mode, saturation, brightness, contrast , sharpness , AGC, white balance adjustable by client software or web browser |
| Day/Night Switch |
Day, night , auto, scheduled |
| Network |
| Alarm trigger |
Motion detection, video tampering alarm, illegal login |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP SMTP, IGMP, IPv6, UDP, QoS, Bonjour |
| System Compatibility |
ONVIF (PROFILE S, PROFILE G), ISAPI |
| General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| Interface |
| Communication interface |
1 RJ45 10M / 100M Self adaptive Ethernet port |
| Audio |
1 Built in mic, mono sound |
| Wi-Fi |
| Wi-Fi standard |
IEEE 802.11b/g/n |
| Frequency range |
2.4 GHz ~ 2.4835 GHz |
| Communication bandwidth |
Support 20/40 MHz |
| Protocols |
802.11b: CCK, DQPSK, DBPSK
802.11g/n: 64 QAM, 16 QAM, QPSK, BPSK |
Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Wireless range |
Up to 50m (The performance varies based on actual environment) |
| Audio |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
8 kHz / 16 kHz |
| General |
| Operating Conditions |
-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25% |
| Power Consumption |
Max. 5W |
| Ingress Protection |
IP66 |
| Material |
Front cover: metal, back cover: plastic |

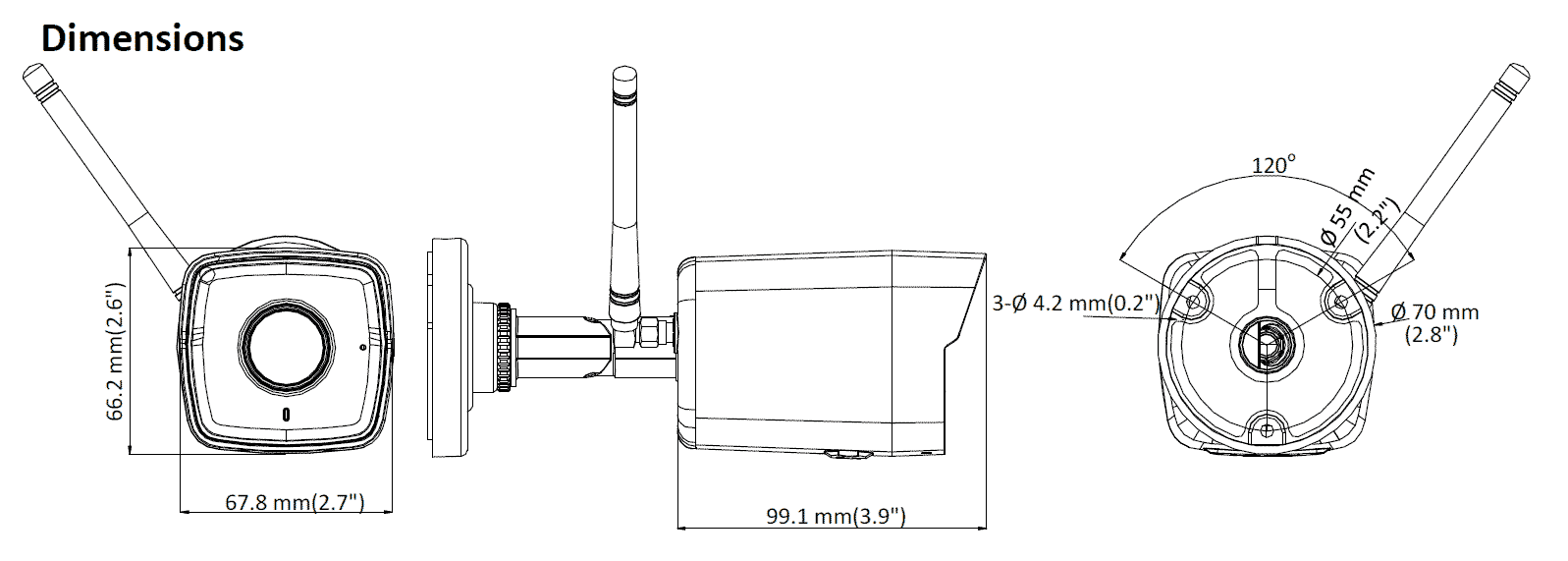

| Dimensions |
99 mm × 68 mm × 66 mm |
| Weight |
Approx. 272g |
