| Camera |
| Image Sensor |
1/2.8" progressive scan CMOS |
| Min. Illumination |
0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time |
1/3s ~ 1/100,000s |
| Lens |
2.8mm to 12mm @F1.4, horizontal field of view: 100° to 35° |
| Day & Night |
ICR |
| Digital noise reduction |
3D DNR |
| WDR |
120dB |
| Compression Standard |
| Video compression |
H.264+/H.264/MJPEG |
| H.264 Type |
Baseline profile/Main profile |
| Bit rate |
32 Kbps ~ 8 Mbps |
| Dual Stream |
Yes |
| Image |
| Max. Image Resolution |
1920 x 1080 |
| Main Stream |
50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream |
50Hz: 25fps @(704 × 576, 640 × 480, 352 × 288, 320 × 240) |
| Image settings |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Day/Night Switch |
Support auto, scheduled |
| BLC |
Yes, zone configurable |
| ROI |
support 1 fixed region |
| Network |
| Network Storage |
Micro SD/SDHC/SDXC card (128G), NAS(NFS, SMB/CIFS), edge recording |
| Detections |
Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
802.1X, QoS, IPv6, Bonjour |
| System Compatibility |
ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| General Function |
Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access |
| Interface |
| Communication interface |
1 RJ45 10M / 100M Ethernet interface |
| On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button |
Support |
| General |
| Operating Conditions |
-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption |
Max. 11W |
| Weather Proof Ratings |
IP67 |
| IR Range |
up to 30m |

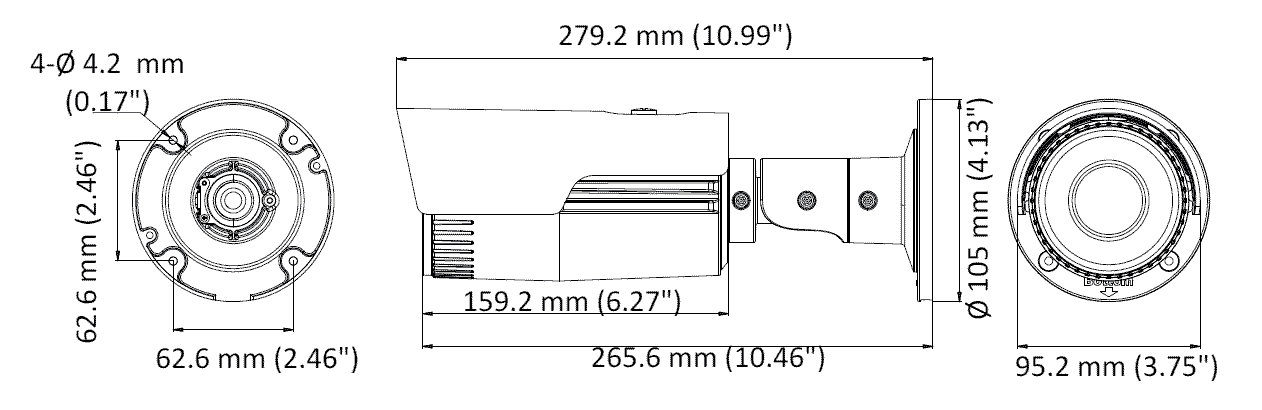

| Dimensions |
95.2 mm × 105 mm × 279.2 mm |
| Weight |
Approx. 1200g |
