IPC-D140H HiWatch by Hikvision 4MP H.265 IP IK10 Dome Camera with 30m Night Vision & PoE
Product Code IPC-D140H

IPC-D140H HiWatch by Hikvision 4MP H.265 IP IK10 Dome Camera with 30m Night Vision & PoE

£72.50
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Description

The IPC-D140H is a 4 megapixel (2560 x 1440) fixed lens true day/night dome camera with Digital WDR. The camera has built in IR with a range of up to 30m and is housed in an IP67 rated housing. Some of the great features this camera includes are region of interest, day/night function and digital wide dynamic range. The camera can be powered over ethernet (PoE) for quick and easy installation when used with the plug and play features of our HiWatch Series by Hikvision NVRs.

On top of this, the camera is IK10 Vandal rated so is suitable for high risk areas.

When installing this camera outdoors, as with all domes, you need to protect the glass dome from the elements or else you might have night vision issues everytime it rains. So either install the camera so it is covered from rain, or try the wall mount brackets so the dome is facing down instead of outwards. There is also a rain proof cap (DS-1250ZJ) available.

Important Note: This is a 2 Axis camera, this means the camera is ideally suited for being mounted on a ceiling - if you need to mount the camera on a wall it is advised you use the DS-1272ZJ-110 Wall mount bracket. If you do not use the wall mount bracket the camera will only be able to point directly forward when mounted on a wall.

This is one of the new H.265/H.265+ models saving you considerable bandwidth and recording space in comparison to the older H.264 models.

Key Features

  • 4 megapixel / 2560 x 1440 @ 20fps
  • 1/3" progressive scan CMOS
  • 2.8mm Lens - Horizontal FOV 100°
  • Digital Wide Dynamic Range
  • up to 20m IR
  • PoE
  • IP67, IK10
  • 2 Axis Lens rotation

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/3s ~ 1/100,000s
Lens 2.8mm @ F2.0 - horizontal field of view 100°
Lens Mount M12
Day & Night ICR
IR Range up to 30m
Adjustment Range: (Manual) Pan:0° - 355°, Tilt: 0° - 70°
Digital noise reduction 3D DNR
WDR Digital WDR
Compression Standard
Video compression Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Type Main stream supports
H.265 Type Main Profile
H.265+ Type Main stream supports
Bit rate 32 Kbps ~ 8 Mbps
Smart Feature-set
Region of Interest 1 fixed region for main stream and sub-stream
Max. Image Resolution 2560 x 1440
Main Stream 50Hz: 20fps (2560 × 1440), 25fps(2304×1296 / 1920×1080 / 1280×720)
Sub Stream 50Hz: 25fps(640×480 / 640×360 / 352×240)
Image Enhancement BLC, 3D DNR
Image settings Saturation, brightness, contrast, sharpeness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, scheduled
Network
Network Storage NAS (NFS, SMB/CIFS)
Alarm trigger Motion detection, video tampering alarm, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
System Compatibility ONVIF (Profile S, Profile G), ISAPI
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Interface
Communication interface 1 RJ45 10 M / 100 M Self adaptive Ethernet port
Reset Button Yes
General
Operating Conditions -30 °C ~ 50 °C (-22°F ~ 122 °F) humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25% , PoE (802.3af)
Power Consumption Max. 7W
Ingress Protection IP67, IK10
TVS 2000V lightning protection, surge protection and voltage transient protection
Material Metal & Plastic

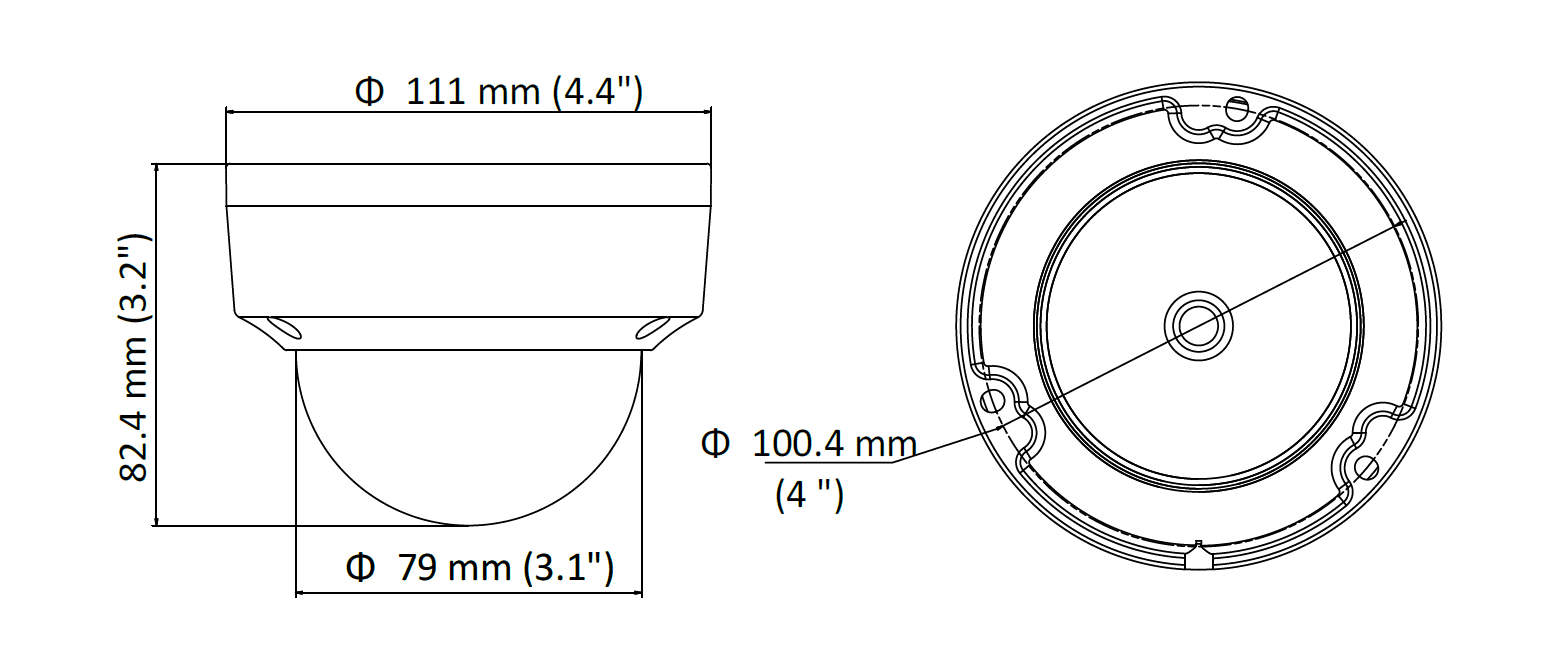

Dimensions Φ111 x 82.4mm
Weight Approx. 410g
