Product ID
IPC-EBW8600

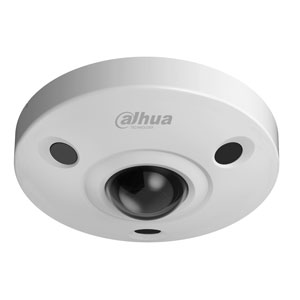

IPC-EBW8600 Dahua 6.0 Megapixel IP Fisheye (IK10) Camera with 10m IR, Audio I/O & PoE
Login For Prices
In Stock
0
0 reviews |
Write a review
Tweet
Summary
Full Spec
Diagram
Key Features
1/1.8” 6Megapixel progressive scan CMOS
H.264 & MJPEG dual-stream encoding
Max 25fps @ 6.0M (3072x2048)
Multiple De-wrap Mode: Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures
DWDR, Day/Night(ICR), 3DNR,ROI,AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
1.55mm fixed lens
Max.IR LEDs Length 10m
1/1 Audio in/out (Built in Mic)
Micro SD memery,IP67,IK10,PoE
De-warp only supported on Dahua 4K NVR's
Download
Manufacturers Spec Sheet
(PDF)
Need a Bracket:
You can download the Dahua
Bracket Guide here
.
CAMERA
Image Sensor
1/1.8” 6Megapixel progressive scan CMOS
Effective Pixels
3072(H) x 2048(V)
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/10000s
Min. Illumination
0.01Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio
more than 50dB
CAMERA FEATURES
Max. IR LEDs Length
10m
Day/Night
Auto(ICR) / Color / B/W
Backlight Compensation
BLC / HLC / DWDR
White Balance
Auto/Manual
Gain Control
Auto/Manual
Noise Reduction
3D
Privacy Masking
Up to 4 areas
LENS
Lens
1.55mm
Max Aperture
F2.0
Angle of View
185°/185°/185°
VIDEO
Compression
H.264H / H.264 / MJPEG / JPEG
Resolution
6M ( 3072×2048 / 3M (2048×1536) / 1080P (1920×1080)
Frame Rate
Main Stream: 6M(1~25fps)
Sub Stream: D1 / CIF (1 ~ 25fps)
Bit Rate
40Kbps~8192Kbps
De-warp Mode
Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures
AUDIO
Compression
G.711a/G.711u/PCM
Interface
1/1 channel In/Out (Built in Mic)
NETWORK
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP,TCP,ARP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PPPOE,IPv4/v6,SNMP,QoS,UPnP,NTP
Compatibility
ONVIF, PSIA, CGI
Max. User Access
20 users
Smart Phone
iPhone, iPad, Android, Windows Phone
AUXILIARY INTERFACE
Memory Slot
Micro SD, Max 64GB
RS485
n/a
Alarm
2/1 channel In/Out
PIR Sensor Range
n/a
GENERAL
Power Supply
DC12V, PoE (802.3at)
Power Consumption
Max 11W
Working Environment
-30°C~+60°C, Less than 95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Dimension
Φ150mm x 50.7mm
Weight
Approx. 0.58kg
