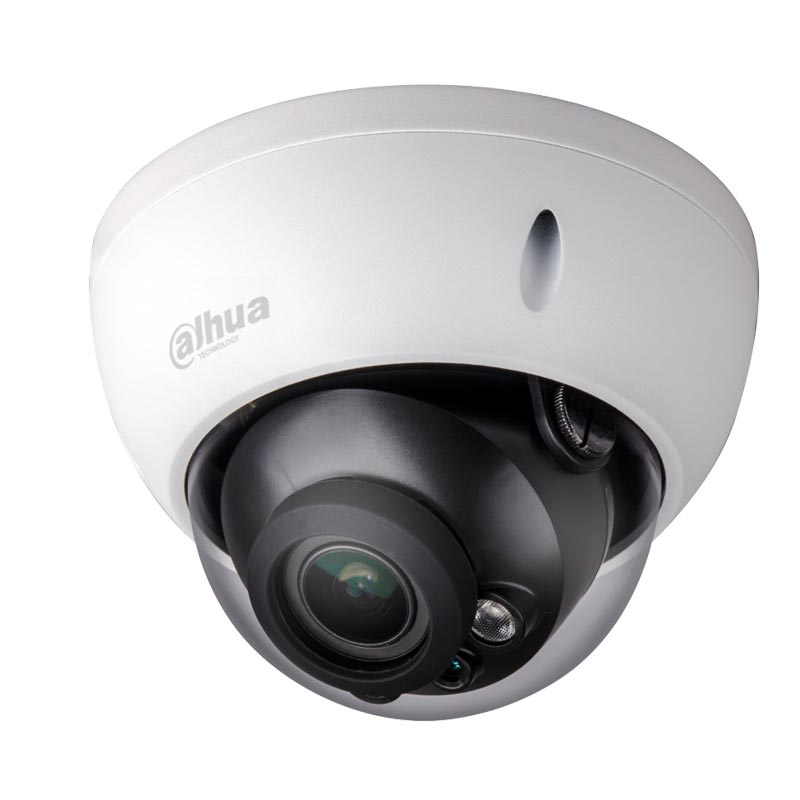

IPC-HDBW2300R-Z Dahua 3.0MP Motorised Zoom (IK10) IP Dome Camera with 30m IR and PoE
Product Code IPC-HDBW2300R-Z

IPC-HDBW2300R-Z Dahua 3.0MP Motorised Zoom (IK10) IP Dome Camera with 30m IR and PoE

Login for Price
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 1/3” 3Megapixel progressive CMOS
  • Support H.264 & MJPEG dual-stream encoding
  • Max 20fps @ 3M(2048 × 1536), 25fps @ 1080P
  • DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.7~12mm motorised lens
  • IR LEDs: 30m
  • IP66, IK10, PoE

Download

Manufacturers Spec Sheet (PDF)

Please note:

This is a 2-axis dome camera, meaning it is built for installation on a ceiling or on the eaves of your house. If you were to wall mount this camera it can only point directly forward - unless you use it with a wall bracket, you can download a Bracket Guide here.

CAMERA
Image Sensor 1/3” 3Megapixel progressive scan CMOS
Effective Pixels 2048(H) x 1536(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s
Min. Illumination 0. 01Lux/F1.4 (Color), 0Lux/F1.4(IR on)
S/N Ratio more than 50dB
CAMERA FEATURES
Max. IR LEDs Length 30m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
LENS
Lens 2.7mm~12mm
Max Aperture F1.4
Angle of View H: 92°~28°
Focus Control Auto
Lens Type Motorised
VIDEO
Compression H.264 / H.264H / MJPEG
Resolution 3M (2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288)
Frame Rate Main Stream: 3M (1~20fps)/1080P/720P(1 ~ 25fps)
Sub Stream: D1/CIF(1 ~ 25fps)
Bit Rate H.264H: 40K ~ 8192Kbps; MJPEG: 40K~16384Kbps
Corridor mode n/a
AUDIO
Compression n/a
Interface n/a
NETWORK
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
AUXILIARY INTERFACE
Memory Slot n/a
RS485 n/a
Alarm n/a
PIR Sensor Range n/a
GENERAL
Power Supply DC12V, PoE(802.3af)
Power Consumption Max 8.5W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP66
Vandal Resistance IK10

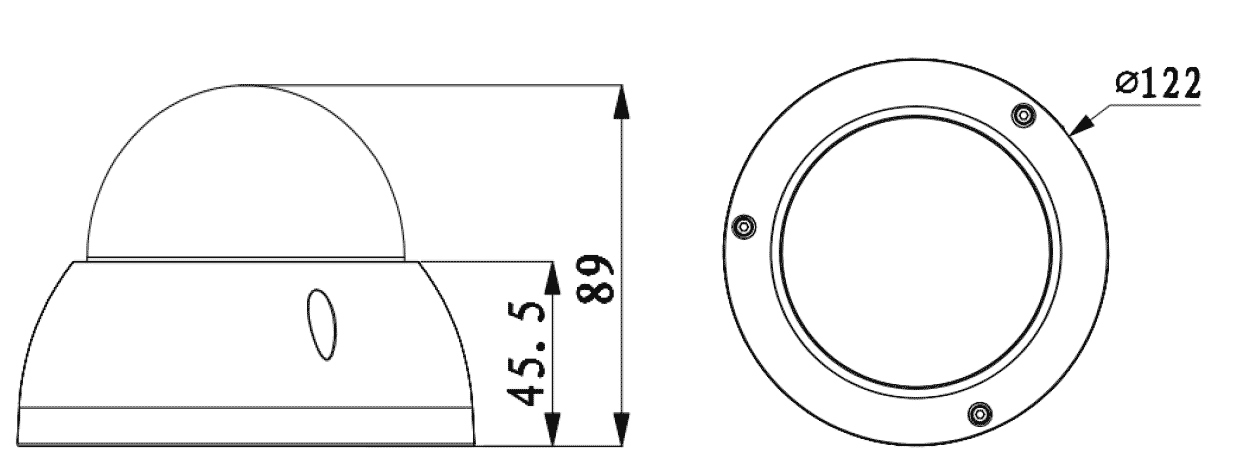

Dimension Φ122mm × 89mm
Weight Approx. 0.5kg
