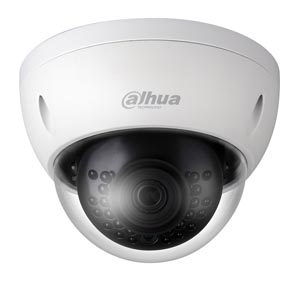

IPC-HDBW4421E Dahua 4.0 Megapixel 120dB WDR IP (IK10) Dome Camera with 30m Night Vision & PoE
Product ID IPC-HDBW4421E

IPC-HDBW4421E Dahua 4.0 Megapixel 120dB WDR IP (IK10) Dome Camera with 30m Night Vision & PoE

Login for Price
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 1/3” 4Megapixel progressive scan CMOS
  • Support H.264 & MJPEG dual codec
  • Max 20fps @ 4MP (2688×1520), 25fps @ 3MP (2304x1296)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 3.6mm fixed lens (2.8mm optional)
  • IR LEDs: 30m
  • IP67, IK10, PoE

Download

Manufacturers Spec Sheet (PDF)

Need a Bracket:

You can download the Dahua Bracket Guide here.

CAMERA
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H) x 1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Min. Illumination 0.01Lux/F2.0 Color), 0Lux/F2.0(IR on)
S/N Ratio more than 50dB
CAMERA FEATURES
Max. IR LEDs Length 30m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
LENS
Lens 3.6mm (2.8mm optional)
Max Aperture F2.0
Angle of View H: 84°/106°
VIDEO
Compression H.264 / H.264B / H.264H / MJPEG
Resolution 4M (2688 x 1520) / 4M (2560 x 1440) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 720P (1280 × 720)
Frame Rate Main Stream: 4M (1~20fps) / 3M (1 ~ 25fps)
Sub Stream: D1 / CIF (1 ~ 25fps)
Third Stream: 720P(1-20fps)
Bit Rate H.264: 32K ~ 10Mbps
Corridor mode Support
SMART FUNCTION
Tripwire
Intrusion
Abandoned / Missing
Scene Change
Audio detect
Face detect
NETWORK
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
AUXILIARY INTERFACE
Memory Slot n/a
RS485 n/a
Alarm n/a
PIR Sensor Range n/a
GENERAL
Power Supply DC12V, PoE(802.3af)
Power Consumption Max 4W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10

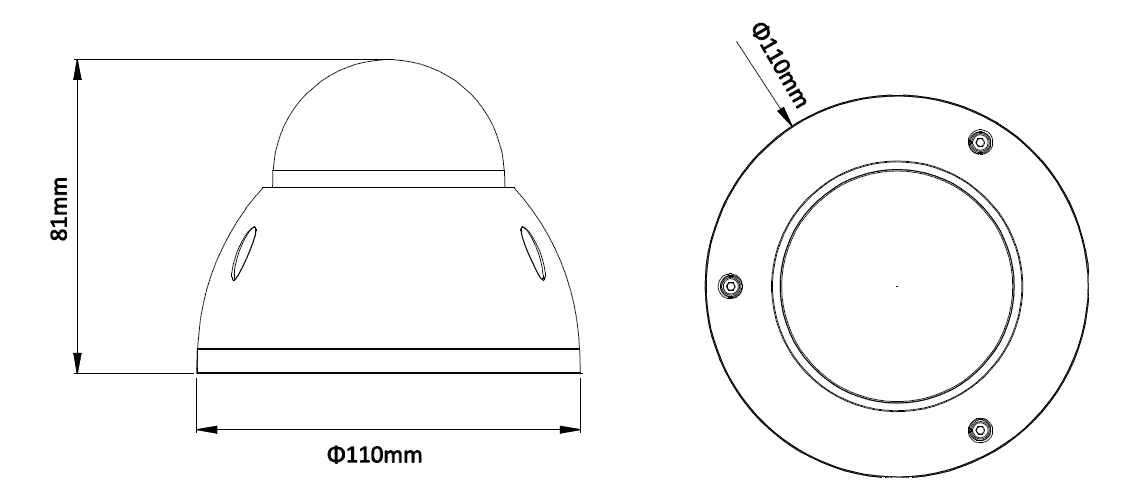

Dimension Φ110mm × 81mm
Weight Approx. 0.33kg
