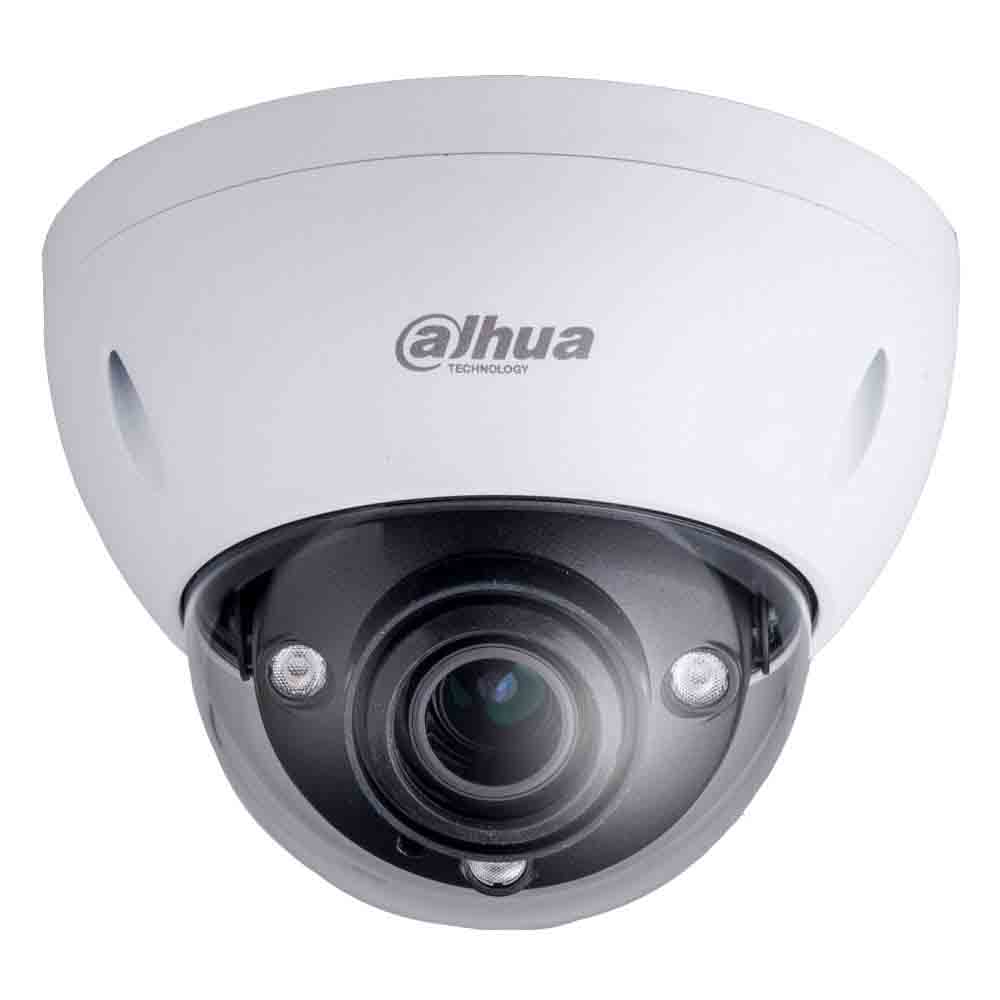

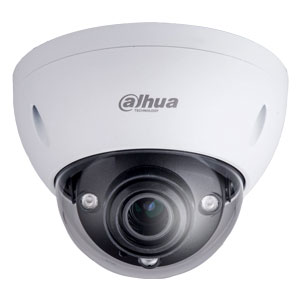

IPC-HDBW5421E-Z Dahua 4.0MP WDR Motorised Zoom IP Dome Camera with 50m IR and PoE
Product Code IPC-HDBW5421E-Z

IPC-HDBW5421E-Z Dahua 4.0MP WDR Motorised Zoom IP Dome Camera with 50m IR and PoE

Login for Price
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 1/3” 4Megapixel progressive scan CMOS
  • Support H.264 & MJPEG dual codec
  • Max 20fps @ 4MP (2688×1520), 25fps @ 3MP (2304x1296)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Lens: 2.7-12mm Motorised Lens
  • IR LEDs: 50m
  • Micro SD memory, IP67, IK10, PoE

Download

Manufacturers Spec Sheet (PDF)

Need a Bracket:

You can download the Dahua Bracket Guide here.

CAMERA
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H) x 1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s
Min. Illumination 0.01Lux/F1.4(Color); 0Lux/F1.4(IR on)
S/N Ratio more than 50dB
CAMERA FEATURES
Max. IR LEDs Length 50m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
LENS
Lens 2.7-12mm Motorised Lens
Max Aperture F1.4
Angle of View H: 100°~33°
VIDEO
Resolution 4M (2688 x 1520) / 4M (2560 x 1440) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 × 960) / 720P (1280 × 720)
Frame Rate Main Stream: 4M (1~20fps) / 3M (1 ~ 25fps)
Sub Stream: D1 / CIF (1 ~ 25fps)
Third Stream: 720P(1-20fps)
Bit Rate H.264: 32K ~ 10Mbps
Corridor mode Support
AUDIO
Compression G.711a/ G.711u/ AAC
Interface 1/1 channel In/Out
SMART FUNCTION
Tripwire
Intrusion
Abandoned / Missing
Scene Change
Audio detect
Face detect
NETWORK
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
AUXILIARY INTERFACE
Memory Slot Micro SD, Max 128GB
Alarm 1/1 channel In/Out
GENERAL
Power Supply DC12V, PoE(802.3af)
Power Consumption Max 10W (with IR on, motorized lens working)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10

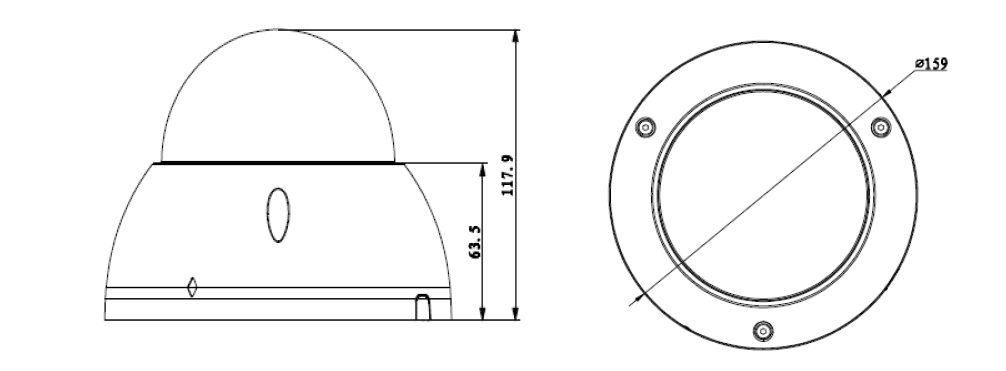

Dimension Φ159mm×117.9mm
Weight Approx. 0.8kg
