IPC-HDW2421R-ZS Dahua 4MP 120dB WDR Motorised Zoom IP Dome Camera with 60m Night Vision & PoE
Product Code IPC-HDW2421R-ZS

IPC-HDW2421R-ZS Dahua 4MP 120dB WDR Motorised Zoom IP Dome Camera with 60m Night Vision & PoE

Login for Price
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 1/3” 4Megapixel progressive scan CMOS
  • H.264+ & H.264 dual-stream encoding
  • 20fps@4M (2688×1520)
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Micro SD card slot, up to 128GB (Card not included)
  • 2.7 ~ 12mm varifocal lens
  • IR LEDs: 60m
  • IP67, PoE

Download

Manufacturers Spec Sheet (PDF)

CAMERA
Image Sensor 1/3” 4Megapixel progressive CMOS
Effective Pixels 2688(H) x 1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Min. Illumination 0.1Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio more than 50dB
Max. IR LEDs Length 60m
IR On/Off Control Auto/ Manual
LENS
Lens Type Motorized
Lens 2.7mm~12mm
Max Aperture F1.4
Angle of View H:100°~35°, V:54°~20°
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
VIDEO
Compression H.264+ / H.264
Streaming Capability 2 Streams
Resolution 4M(2688×1520)/3M(2304×1296)/
1080P(1920x1080)/1.3M(1280x960)/
720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate Main Stream: 4M(1~20fps)
Sub Stream: D1(1~25fps)
Bit Rate H264:24K ~ 8Mbps
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression n/a
NETWORK
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS; DDNS; PPPOE;IPv4/v6;QoS; UPnP;NTP; Bonjour; 802.1x;Multicast;ICMP;IGMP;
Compatibility ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
Edge Storage NAS
Local PC for instant recording
Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Interface
Video Interface n/a
Audio Interface n/a
RS485 n/a
Alarm n/a
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption Max 9.75W
Environmental
Operating Conditions -30°C~+60°C, Less than 95% RH
Strorage Conditions -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance n/a
Construction
Casing Metal

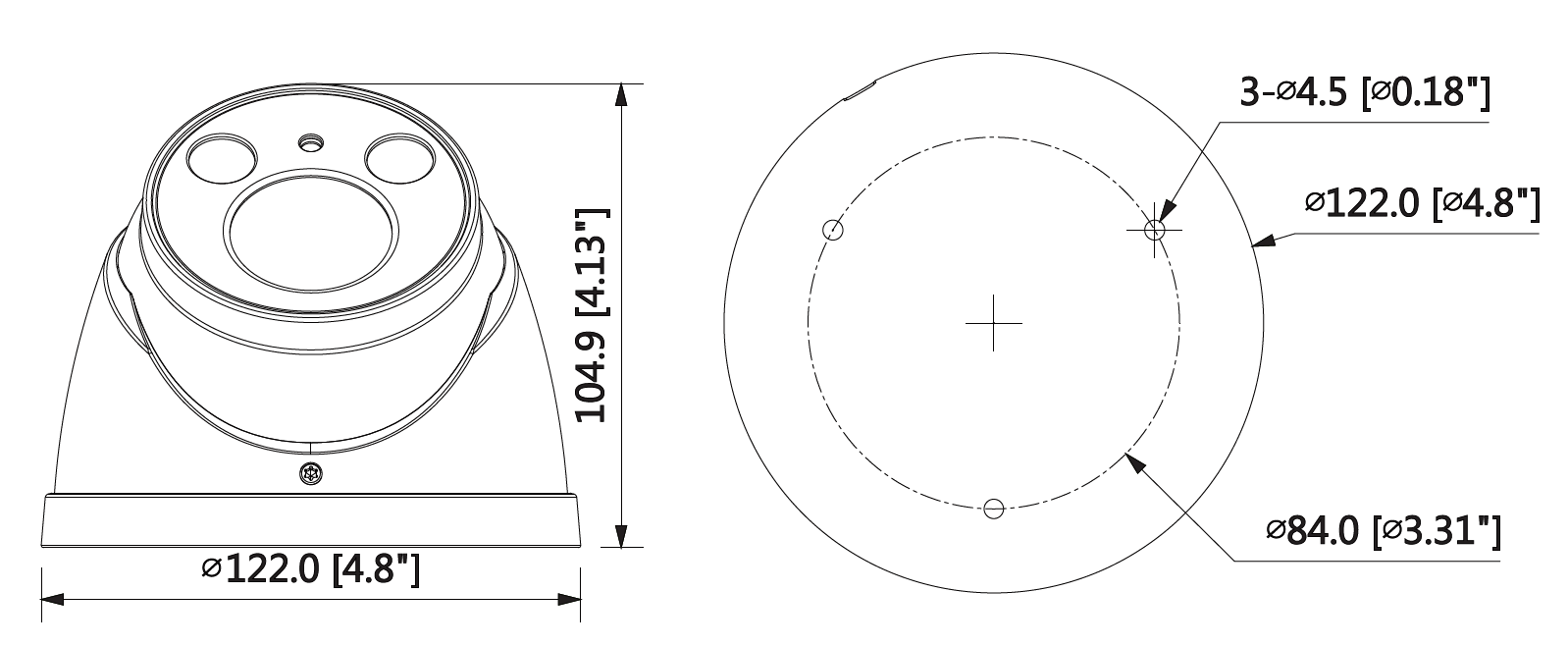

Dimension Φ122mm x 104.9mm
Weight Approx. 0.59kg
