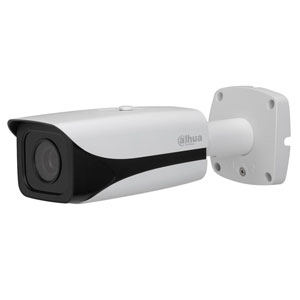

IPC-HFW5421E-Z Dahua 4.0MP WDR Motorised Zoom IP Bullet Camera with 50m IR and PoE

0 reviews | Write a review

Summary
Full Spec
Diagram

Key Features

1/3” 4Megapixel progressive scan CMOS
Support H.264 & MJPEG dual codec
Max 20fps @ 4MP (2688×1520), 25fps @ 3MP (2304x1296)
Smart Detection supported
WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
Lens: 2.7-12mm Motorised Lens
IR LEDs: 50m
Micro SD memory, IP67, PoE

Download

Manufacturers Spec Sheet (PDF)

Need a Junction Box / Bracket:

You can download the Dahua Bracket Guide here.

CAMERA
Image Sensor	1/3” 4Megapixel progressive scan CMOS
Effective Pixels	2688(H) x 1520(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/10000s
Min. Illumination	0.01Lux/F1.4(Color); 0Lux/F1.4(IR on)
S/N Ratio	more than 50dB
CAMERA FEATURES
Max. IR LEDs Length	50m
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / WDR(120dB)
White Balance	Auto/Sunny/Night/Outdoor/Customized
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
LENS
Lens	2.7-12mm Motorised Lens
Max Aperture	F1.4
Angle of View	H: 100°～33°
VIDEO
Resolution	4M (2688 x 1520) / 4M (2560 x 1440) / 3M (2304 x 1296) / 1080P (1920 x 1080) / 1.3M (1280 × 960) / 720P (1280 × 720)
Frame Rate	Main Stream: 4M (1~20fps) / 3M (1 ~ 25fps) Sub Stream: D1 / CIF (1 ~ 25fps) Third Stream: 720P(1-20fps)
Bit Rate	H.264: 32K ~ 10Mbps
Corridor mode	Support
AUDIO
Compression	G.711a/ G.711u/ AAC
Interface	1/1 channel In/Out
SMART FUNCTION
Tripwire
Intrusion
Abandoned / Missing
Scene Change
Audio detect
Face detect
NETWORK
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility	ONVIF, PSIA, CGI
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
AUXILIARY INTERFACE
Memory Slot	Micro SD, Max 128GB
Alarm	2/1 channel In/Out
GENERAL
Power Supply	DC12V, PoE(802.3af)
Power Consumption	Max 11.5W (with IR on, motorized lens working)
Working Environment	-40°C~+60°C, Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	N/A
Dimension	272.9 mm × 94.9mm× 94.9mm
Weight	Approx. 1.1kg
