IPC-HFW81200E-Z Dahua 12.0MP (4K Ultra HD) Motorised Zoom IP Bullet Camera with 50m IR and PoE
Product Code IPC-HFW81200E-Z

IPC-HFW81200E-Z Dahua 12.0MP (4K Ultra HD) Motorised Zoom IP Bullet Camera with 50m IR and PoE

Login for Price
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 1/1.7” 12Megapixel progressive scan CMOS
  • Support H.264 & MJPEG dual codec
  • Max 15fps @ 12Mp(4000×3000), 25fps @ 4K (3840x2160)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 4.1mm ~16.4mm motorized lens
  • IR LEDs: 50m
  • IP67, PoE

Download

Manufacturers Spec Sheet (PDF)

Need a Junction Box / Bracket:

You can download the Dahua Bracket Guide here.

CAMERA
Image Sensor 1/1.7” 12 Megapixel progressive scan CMOS
Effective Pixels 4000(H) x 3000(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s
Min. Illumination 0.05Lux/F1.4(Color); 0Lux/F1.4(IR on)
S/N Ratio more than 50dB
CAMERA FEATURES
Max. IR LEDs Length 50m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Sunny/Night/Outdoor/Customized
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
EIS Support
Ultra Defog Support
Smart focus Auto focus
LENS
Lens 4.1mm~16.4mm Motorised Lens
Max Aperture F1.53
Angle of View H: 85.4°~34°
VIDEO
Resolution 12M (4000 x 3000) / 8M (4096 × 2160) / 8M (3840 × 2160) / 1080P (1920 x 1080) / 720P (1280 × 720)
Frame Rate Main Stream: 12M (1~15fps) / 8M (3840x2160) (1~25fps)
Sub Stream: D1 / CIF (1 ~ 25fps)
Third Stream: 1080P/720P/D1(1 ~ 25fps)
Bit Rate H.264: 32K ~ 16Mbps
ROI Up to 4 areas
AUDIO
Compression G.711a/ G.711u/ AAC
Interface 1/1 channel In/Out
SMART FUNCTION
Tripwire
Intrusion
Abandoned / Missing
Scene Change
Audio detect
Defocus detect
Face detect
NETWORK
Ethernet RJ-45 (10/100/1000Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
AUXILIARY INTERFACE
Memory Slot Micro SD, Max 128GB
Alarm 2/1 channel In/Out
GENERAL
Power Supply DC12V, PoE (802.3at)
Power Consumption Max 24W (with IR on, motorized lens working)
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A

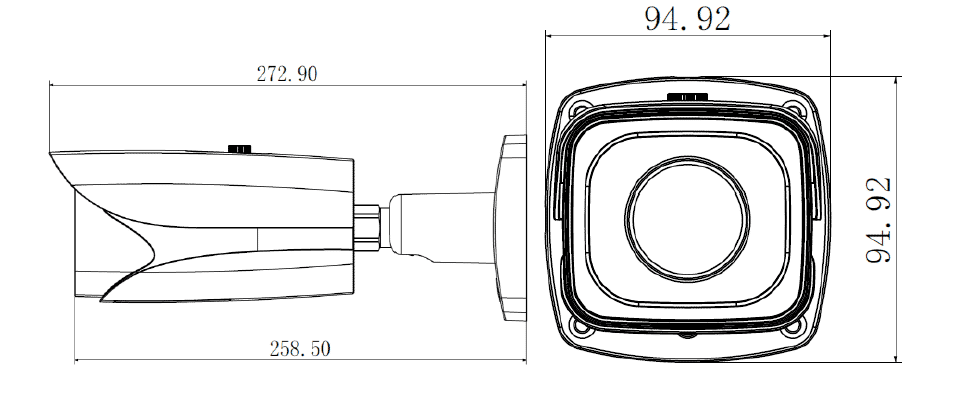

Dimension 272.9mm × 94.3mm × 94.3mm
Weight Approx. 0.8kg
