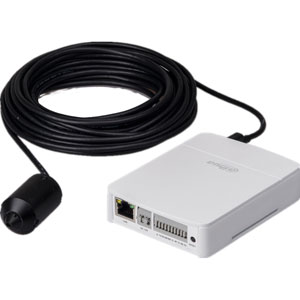

IPC-HUM8101 Dahua 1.3 Megapixel IP Covert Camera with Audio I/O & PoE
Product Code IPC-HUM8101

IPC-HUM8101 Dahua 1.3 Megapixel IP Covert Camera with Audio I/O & PoE

£298.50
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec

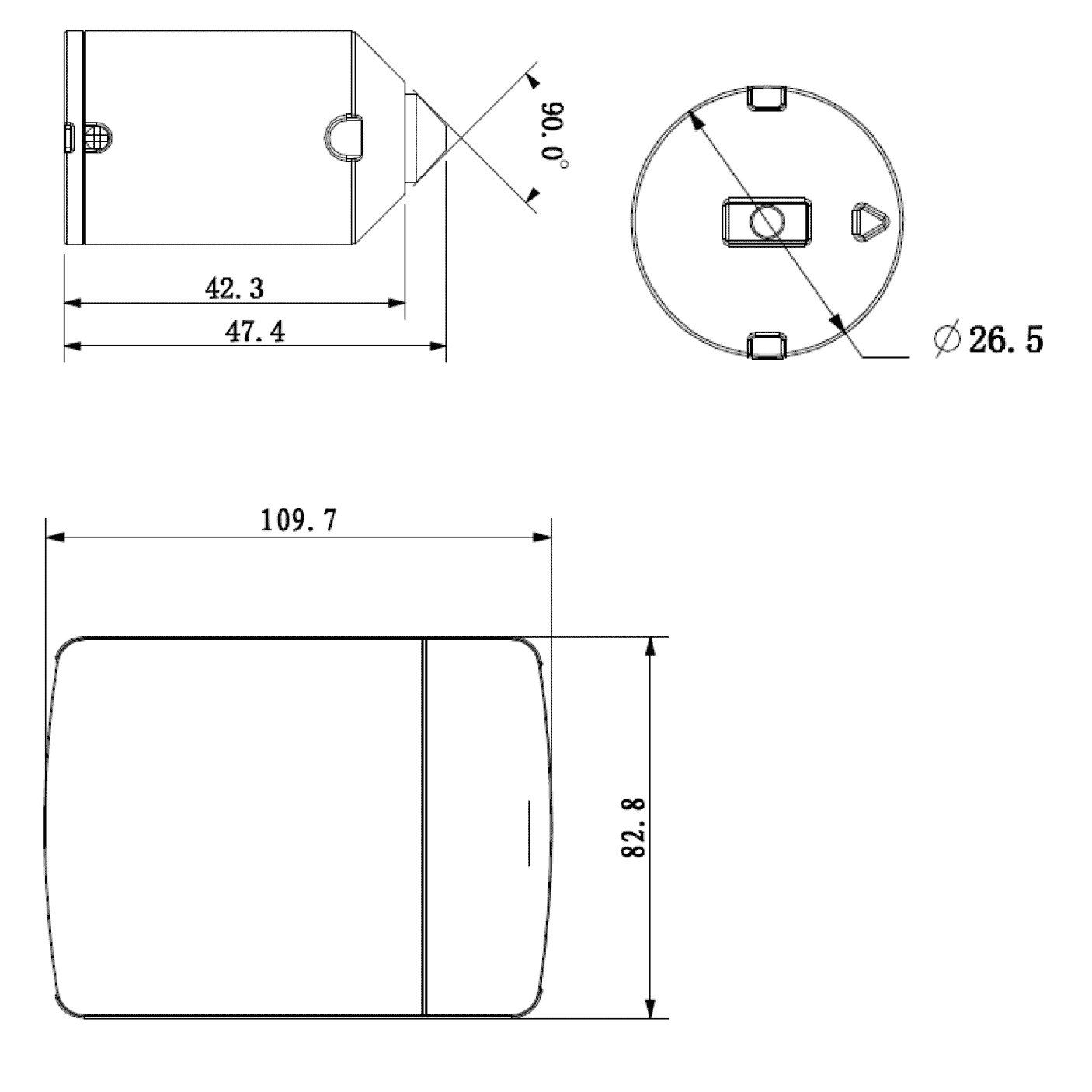

  • Diagram

Key Features

  • 1/3” 1.3Megapixel progressive scan CMOS
  • Max 25fps @ 1.3MP(1280x960)
  • Day/Night(Electronic), 3DNR, AWB,AGC,BLC
  • Smart detection: Face detection, Tripwire detection, Intrusion detection, Scene change detection
  • 3.6mm fixed lens
  • Micro SD memery,PoE

Download

Manufacturers Spec Sheet (PDF)

CAMERA
Image Sensor 1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels 1280(H) x 960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s
Min. Illumination 0.01Lux/F2.8 (Color), 0.001Lux/F2.8(B/W)
S/N Ratio more than 50dB
CAMERA FEATURES
Max. IR LEDs Length n/a
Day/Night Auto(Electronic) / Color / B/W
Backlight Compensation BLC / HLC / WDR(100dB)
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
LENS
Lens 3.6mm
Max Aperture F2.8
Angle of View H: 77°
VIDEO
Compression H.264 / MJPEG
Resolution 1.3M (1280×960) / 720P (1280×720) / D1 (704×576) / CIF (352× 288)
Frame Rate Main Stream: 1.3M/720P(1 ~ 25fps)
Sub Stream: D1 / CIF (1 ~ 25fps)
Bit Rate H.264: 48K ~ 8192Kbps
AUDIO
Compression G.711a/G.711u/PCM
Interface 1/1 channel In/Out
SMART FUNCTION
Tripwire
Intrusion
Abandoned / Missing
Scene Change
Audio detect
Face detect
NETWORK
Ethernet RJ-45 (10/100/1000Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
AUXILIARY INTERFACE
Memory Slot Micro SD, Max 64GB
RS485 n/a
Alarm 1/1 channel In/Out
PIR Sensor Range n/a
GENERAL
Power Supply DC12V, PoE (802.3at)
Power Consumption Max 7W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection n/a
Vandal Resistance n/a
Dimension 109.7mm×82.8mm×24.0mm
Weight Approx. 0.46kg
