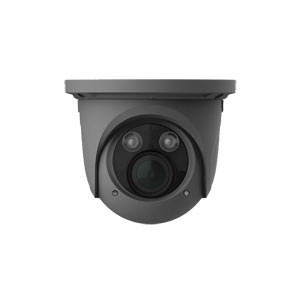

MEYEVIP-5-VG OYN-X 5MP 120dB WDR Motorised Zoom Eyeball Dome IP Camera with 30m Night Vision & PoE (Grey)

Was £123.25save £63.25
In Stock 0
0 reviews | Write a review
3 Year Warranty

Free Shipping

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 5MP ( 2592 × 1944 ) H.265 full real time coding
  • Max. resolution: 2592 × 1944
  • 3.3 - 12mm Lens - Motorized zoom lens
  • ICR auto switch, true day / night
  • 20 ~ 30m IR night view distance
  • Third generation of dot matrix LED IR lights, small size, efficient heat dissipation, long lifespan
  • PoE
  • IP66
  • Plug & play with ALL OYN-X "Falcon" NVR’S


Manufacturers Spec Sheet (PDF)

Sample Footage

Please make sure you select the highest resolution when viewing this footage.

Sample footage gives you a very good idea of the quality you can expect from this OYN-X MEYEVIP-5-VW Motorised Zoom camera - this video shows you actual footage of the camera during the day and night.

There are several videos above, so you can see the wide angle view and the zoomed in view - there is also some footage showing you the cameras motorised lens zooming in.

Image Sensor 1 / 2.5 “CMOS
Min. Illumination 0.03 lux @F1.2,AGC ON; 0 lux with IR
Shutter Time 1/25s ~ 1/100,000s
Lens 3.3 ~ 12 mm @F1.4, angle of view:93.9° ~ 34.8°
Lens Mount Φ14
Day & Night ICR
WDR >120dB
Digital noise reduction 2D / 3D DNR
Video compression H.265 / H.264 / MJPEG
H.265 Compression Standard Main Profile @Leve4.1 High Tier
Resolution 5MP ( 2592×1944 ), 4MP ( 2560×1440 ), 1080P (1920×1080 ),720P ( 1280×720 ), D1, CIF, 480×240
Frame rate Main stream: 5MP( 1 ~ 25fps ) / 4MP( 1 ~ 25ps ) /1080P( 1 ~ 50fps ) / 720P( 1 ~ 25fps )
Bit rate 128 Kbps ~ 10 Mbps
Encode Mode VBR / CBR
Quality Five levels under VBR; Freely adjustable under CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
Audio Compression G711A / U
ROI Each ROI to be configured separately
Network 1 RJ45
Audio MIC IN × 1 Audio Input
Built in Mic No
Video Output CVBS video output ( BNC × 1 )
Remote Monitoring IE browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users;
Support multi-stream real time transmission
Network Protocol TCP / IP, UDP, DHCP, NTP, R Network Protocol TSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol ONVIF, GB-T/28181-2011
Storage Network remote storage
Smart Alarm Motion Alarm
PoE Support
IR Distance 20 - 30m
Weather-Proof IP66
Power Supply 12 VDC / PoE
Power Consumption Max. 6W
Operating Conditions -20 °C ~ 50°C, 10 % ~ 90 % relative humidity
Dimensions Φ119.4 x 102.4mm
Weight Approx. 736g

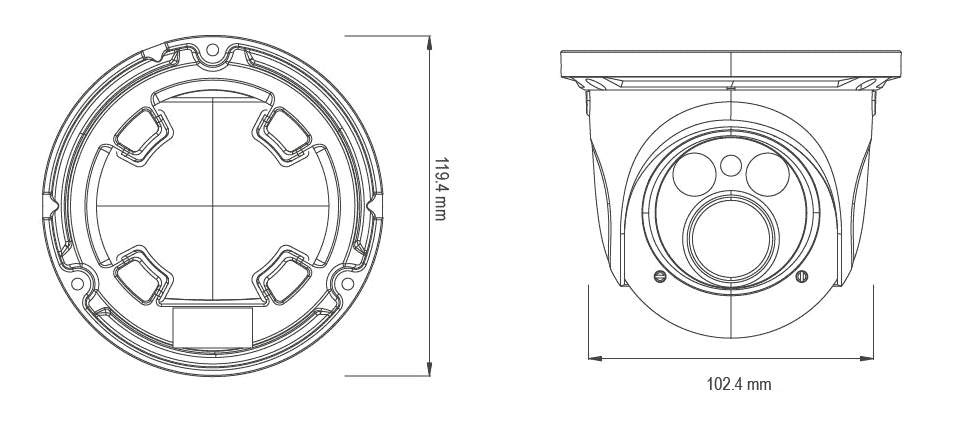

dvr dimensions
