| Camera |
| Image Sensor |
1 / 2.5 “CMOS |
| Min. Illumination |
0.03 lux @F1.2,AGC ON; 0 lux with IR |
| Shutter Time |
1/25s ~ 1/100,000s |
| Lens |
3.3 ~ 12 mm @F1.4, angle of view:93.9° ~ 34.8° |
| Lens Mount |
Φ14 |
| Day & Night |
ICR |
| WDR |
>120dB |
| Digital noise reduction |
2D / 3D DNR |
| Image |
| Video compression |
H.265 / H.264 / MJPEG |
| H.265 Compression Standard |
Main Profile @Leve4.1 High Tier |
| Resolution |
5MP ( 2592×1944 ), 4MP ( 2560×1440 ), 1080P (1920×1080 ),720P ( 1280×720 ), D1, CIF, 480×240 |
| Frame rate |
Main stream: 5MP( 1 ~ 25fps ) / 4MP( 1 ~ 25ps ) /1080P( 1 ~ 50fps ) / 720P( 1 ~ 25fps ) |
| Bit rate |
128 Kbps ~ 10 Mbps |
| Encode Mode |
VBR / CBR |
| Quality |
Five levels under VBR; Freely adjustable under CBR |
| Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| Audio Compression |
G711A / U |
| ROI |
Each ROI to be configured separately |
| Interfaces |
| Network |
1 RJ45 |
| Audio |
MIC IN × 1, MIC OUT x 1 |
| Built in Mic |
No |
| Video Output |
CVBS video output ( BNC × 1 ) |
| Storage Card |
Support TF card, up to 128GB |
| Alarm Input |
1ch |
| Alarm Output |
1ch |
| Functions |
| Remote Monitoring |
IE browsing,CMS remote control |
| Online Connection |
Support simultaneous monitoring for up to 10 users;
Support multi-stream real time transmission |
| Network Protocol |
TCP / IP, UDP, DHCP, NTP, R Network Protocol TSP, PPPoE, DDNS, SMTP, FTP |
| Interface Protocol |
ONVIF, GB-T/28181-2011 |
| Storage |
Network remote storage |
| Smart Alarm |
Motion Alarm |
| PoE |
Support |
| IR Distance |
20 - 30m |
| Weather-Proof |
IP66 |
| Impact Protection |
IK10 |
| General |
| Power Supply |
12 VDC / PoE |
| Power Consumption |
Max. 6W |
| Operating Conditions |
-20 °C ~ 50°C, 10 % ~ 90 % relative humidity |

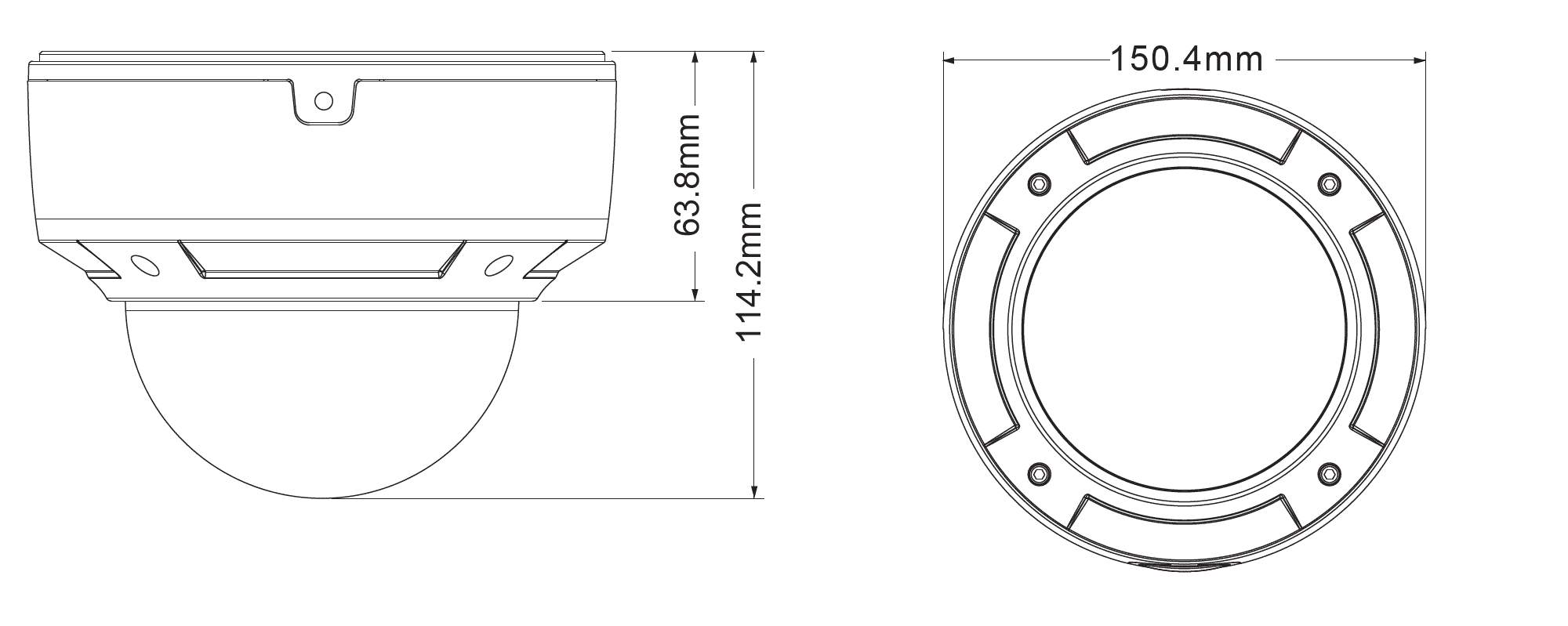

| Dimensions |
Φ150 x 114mm |
| Weight |
Approx. 1030g |
