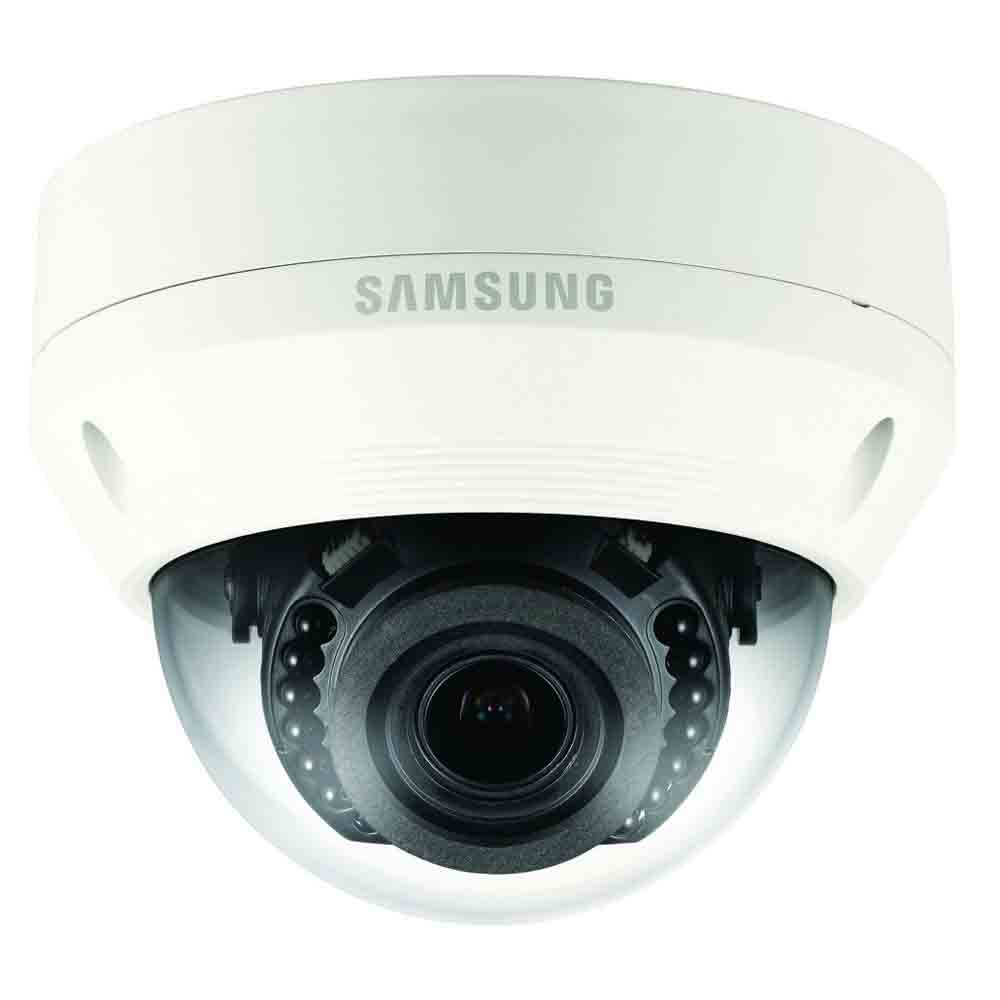

QNV-7080R Samsung WiseNetQ 4MP Motorised Zoom IK10 IP Dome Camera with 30m Night Vision and PoE
Product Code QNV-7080R

QNV-7080R Samsung WiseNetQ 4MP Motorised Zoom IK10 IP Dome Camera with 30m Night Vision and PoE

£312.00
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • Max. 4M resolution
  • 2.8 ~ 12mm (4.3x) motorized varifocal lens
  • Max. 20fps@4M resolutions, Max. 30fps@2M resolutions
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Motion detection, Tampering, Defocus detection
  • micro SD (128GB) memory slot, PoE / 12V DC
  • IR viewable length 30m, IP66, IK10
  • Hallway view support
  • LDC support (Lens Distortion Correction)

Download

Manufacturers Spec Sheet (PDF)

Video
Imaging Device 1/3" 4M CMOS
Total Pixels 2,720(H) x 1,536(V)
Effective Pixels 2,688(H) x 1,520(V)
Scanning System Progressive scan
Min illumination Color : 0.15Lux (30IRE), B/W : 0Lux (IR LED on)
Lens
Focal Length (Zoom Ratio) 2.8 ~ 12mm (4.3x) motorized varifocal
Max. Aperture Ratio F1.4
Angular Field of View H : 109.7˚ ~ 26.0˚ / V : 60.8˚ ~ 15.2˚ / D : 131.3˚ ~ 30.1˚
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network
Lens Type DC auto iris
Mount Type Board type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
Operational
IR Viewable Length 30m (98.43ft)
Camera Title Off / On (Displayed up to 20 characters per line)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
Transparency, Auto scale by resolution
Day & Night True Day & Night
Backlight Compensation Off / BLC / WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR (Off / On)
Motion Detection Off / On (4ea rectangular zones)
Privacy Masking Off / On (6ea rectangular zones)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker
Flip / Mirror Flip / Mirror / Hallway view
Intelligent Video Analytics Motion detection with metadata, Tampering, Defocus detection
Alarm I/O Input 1 / Output 1
Alarm Triggers Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection
Alarm Events File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter Support (Plug-in viewer only)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.265, H.264, MJPEG
Resolution 2592 x 1520, 2560 x 1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024,
1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480,
640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265/H.264 : Max 20fps at 4M, Max 30fps at under 2M
MJPEG : Max 15fps
Smart Codec WiseStream
Video Quality Adjustment H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.265/H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 3 profiles)
Audio I/O Line in
Audio Compression Format G.711 u-law / G.726 selectable
G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Uni-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 6 users at unicast mode
Storage micro SD/SDHC/SDXC Max. 128G, NAS
- Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC
Application Programming Interface ONVIF Profile S, G, SUNAPI (HTTP API)
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungarian, Greek
Web Viewer Supported OS : Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
Non-plugin Webviewer
- Supported Browser : Google Chrome 47, MS Edge 20
- Support Codec : - Video : H.264, MJPEG (Max. 1M 15fps) - Audio : G.711
Plug-in Webviewer
Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Central Management Software SmartViewer
Environmental
Operating Temp / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -20°C (-4°F)
Storage Temp / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Electrical
Input Voltage / Current PoE (IEEE802.3af, Class3) / 12V DC
Power Consumption Max. 7.2W (PoE), Max. 6.4W (12V DC)
Mechanical
Color / Material Ivory / Metal

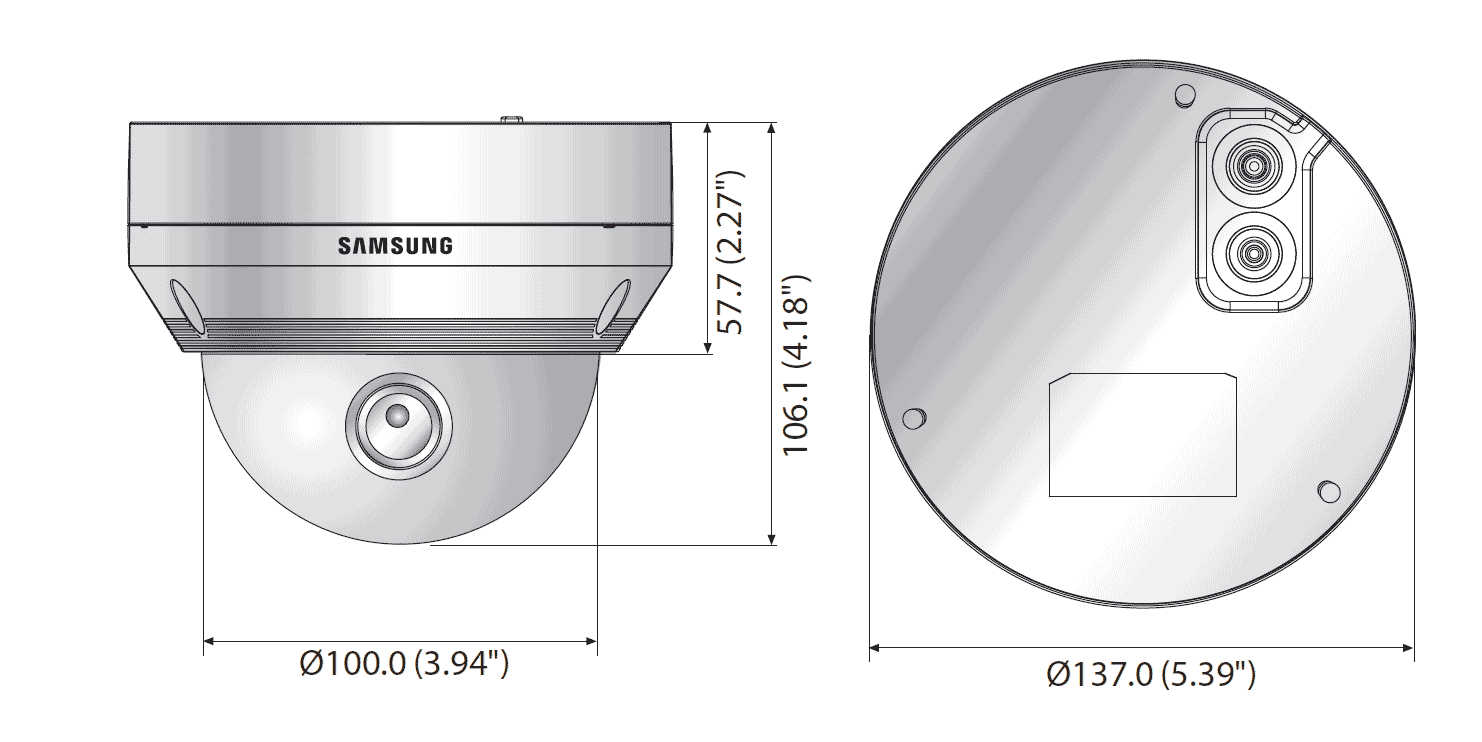

Dimensions (WxH) Ø137.0 x 106.1mm (Ø5.39" x 4.18")
Weight 680g (1.5 lb)
