| Image Sensor |
1/2.8” CMOS |
| Effective Pixels |
1944(H) x 1092(V), 2 Megapixels |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
1/1~1/30,000s |
| Min. Illumination |
Color: 0.05Lux@F1.6, B/W: 0.005Lux@F1.6 |
| S/N Ratio |
more than 50dB |
| Camera Features |
| Day/Night |
Auto(ICR) / Color / B/W |
| Backlight Compensation |
BLC / HLC / DWDR |
| White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control |
Auto/Manual |
| Noise Reduction |
2D / 3D |
| Privacy Masking |
Up to 24 areas |
| Digital Zoom |
16x |
| Lens |
| Focal Length |
2.7mm~11mm (4x Optical zoom) |
| Max Aperture |
F1.6 ~ F2.8 |
| Focus Control |
Auto / Manual |
| Angle of View |
H: 112.5° ~ 39° |
| PTZ |
| Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180° |
| Manual Control Speed |
Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s |
| Preset Speed |
Pan: 100° /s; Tilt: 60° /s/td>
|
| Preset |
300 |
| PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup |
Human-oriented focal length/ speed adaptation |
| Power up Action |
Auto restore to previous PTZ and lens status after power failure |
| Idle Motion |
Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period |
| IR Distance |
30m |
| Video |
| Compression |
H.264 / MJPEG |
| Resolution |
1080P(1920 x 1080) / 720P(1280 x 720) / D1(704 x 576) / CIF(352 x 288) |
| Frame Rate - Main Stream |
1080P(1 ~ 25fps)/ 720P (1 ~ 50fps) |
| Frame Rate - Sub Stream |
D1/CIF(1 ~ 25fps) |
| Bit Rate |
H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps |
| Audio |
| Compression |
G.711a / G.711Mu(32kbps)/ PCM(128kbps) |
| Interface |
Built-in Mic |
| Network |
| Ethernet |
RJ-45 (10/100Base-T) |
| Network Function |
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| ONVIF |
ONVIF Profile S |
| Max. User Access |
20 users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot |
Micro SD, Max 64GB |
| RS485 |
n/a |
| Alarm |
n/a |
| General |
| Power Supply |
DC12V, POE |
| Power Consumption |
10W, 13W (IR on) |
| Working Environment |
-30°C~+60°C / Less than 90% RH |
| Ingress Protection |
n/a |

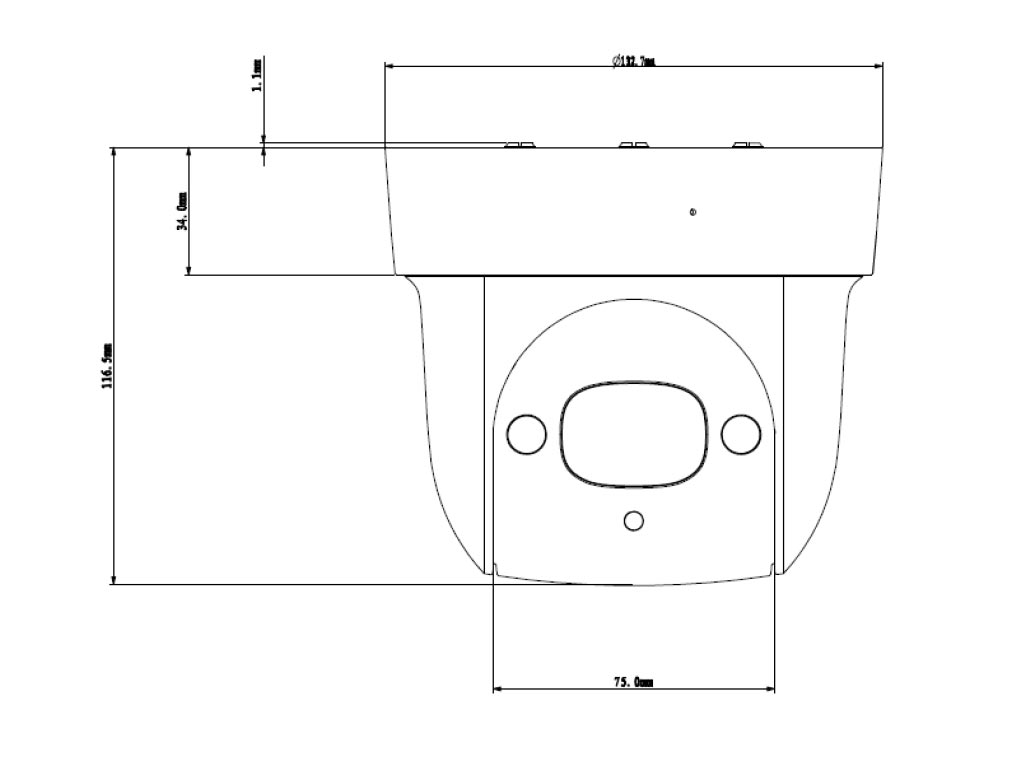

| Dimension |
Φ132.7 (mm) x 116.5 (mm) |
| Weight |
0.95kg |
