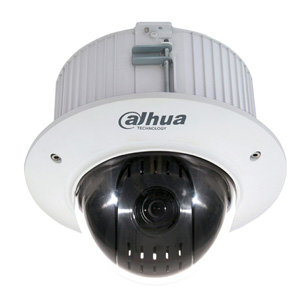

SD42C212I-HC Dahua HD-CVI 1080P In-Ceiling Mount Mini 12X Pan Tilt & Zoom Camera
Product Code SD42C212I-HC

SD42C212I-HC Dahua HD-CVI 1080P In-Ceiling Mount Mini 12X Pan Tilt & Zoom Camera

£448.50
0 reviews | Write a review
3 Year Warranty
HD-CVI CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • Powerful 12x optical zoom
  • Max. 25fps @1080P
  • DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
  • Max 300°/s pan speed, 360° continuous pan rotation
  • Control over coaxial cable, long distance real-time transmission
  • HD and SD switchable
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • OSD
  • PSU Included

Download

Manufacturers Spec Sheet (PDF)

Compatibility

For use with HD-CVI recorders ONLY.

Camera
Image Sensor 1/2.8” Exmor CMOS
Effective Pixels 1944(H) x 1092(V), 2 Megapixels
Scanning System Progressive
Electronic Shutter 1/1s~1/30,000s
Min. Illumination Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6
S/N Ratio More than 55dB
Resolution 25fps@1080P, 25/50fps@720P
Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction 2D/3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 5.1 mm~61.2mm (12x Optical zoom)
Max Aperture F1.6~ F3.0
Focus Control Auto / Manual
Angle of View H: 51.3° ~ 4.64°
Close Focus Distance 100mm ~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed Pan: 300° /s; Tilt: 200° /s
Preset 80(DH-SD) , 255(Pelco-P/D)
PTZ Mode 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)
IR Distance n/a
Audio
Interface 1 channel In
Auxiliary Interface
RS485 1
Alarm 2/1 channel In/Out
General
Power Supply AC24V/1.5A (±10%)
Power Consumption 10W
Working Environment -10ºC ~ 60ºC / Less than 90% RH
Ingress Protection n/a
Vandal Resistance n/a

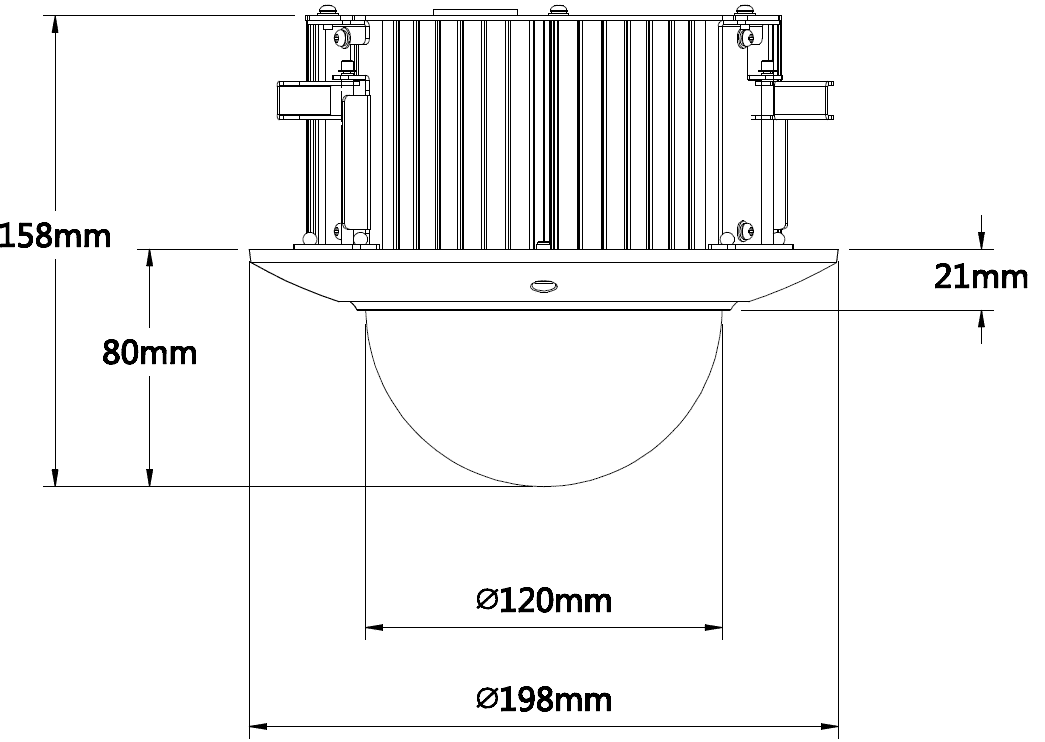

Dimensions Φ198mm × 158mm
Weight 2.0kg
