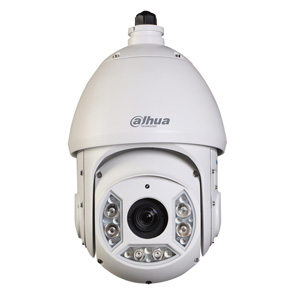

SD6C230I-HC Dahua HD-CVI 1080P 30X Pan Tilt & Zoom Camera with 100M Night Vision

£808.50

In Stock 0

0 reviews | Write a review

Free Shipping

Summary
Full Spec

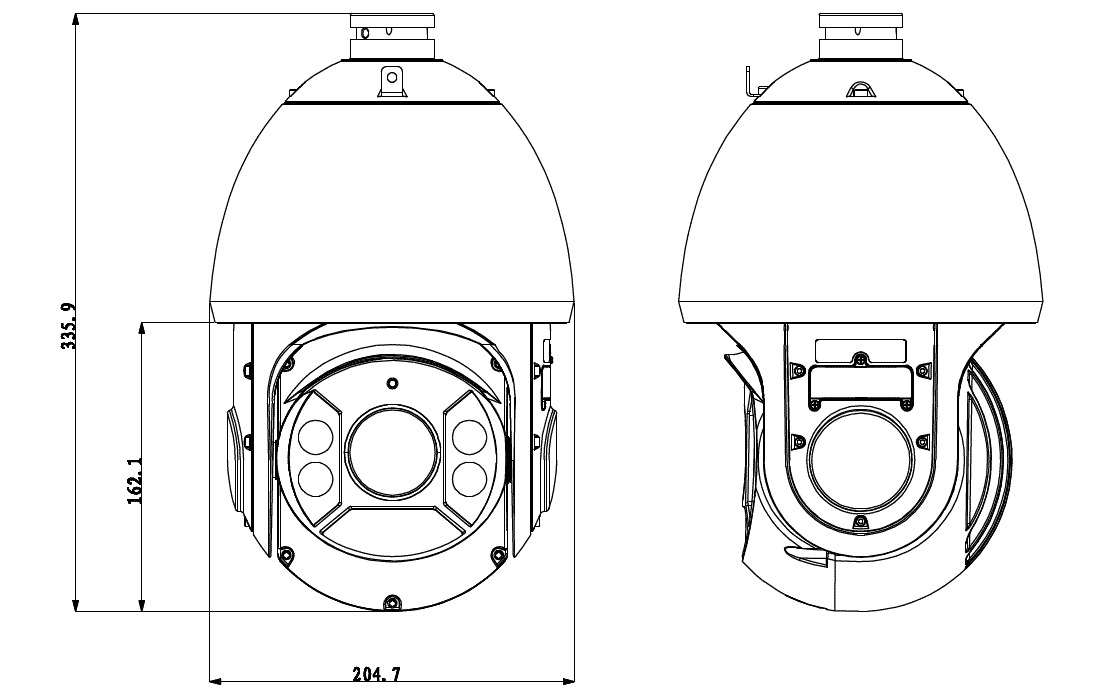

Diagram

Key Features

30x optical zoom
Max. 25fps @1080P(1920x1080) & 50fps @720P resolution
DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
Control over coaxial cable, long distance real-time transmission
HD and SD switchable
Max 240°/s pan speed, 360° endless pan rotation
Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
Built-in 2/1 alarm in/out
Support intelligent 3D positioning with DH-SD protocol
IR Distance up to 100m
IP66, OSD
Includes PFB303W wall bracket & PSU

Download

Manufacturers Spec Sheet (PDF)

Compatibility

For use with HD-CVI recorders ONLY.

Camera
Image Sensor	1/2.8” Exmor CMOS
Effective Pixels	1920(H) x 1080(V), 2Megapixels
Scanning System	Progressive
Electronic Shutter	1/1s~1/30,000s
Min. Illumination	Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux (IR on)
S/N Ratio	More than 50dB
Resolution	25fps@1080P, 25/50fps@720P
Video Output	1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR (Digital WDR)
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto / Manual
Noise Reduction	2D/3D
Privacy Masking	Up to 24 areas
Digital Zoom	16x
Lens
Focal Length	4.3mm~129mm (30x Optical zoom)
Max Aperture	F1.6~ F5.0
Focus Control	Auto / Manual
Angle of View	H: 65.1° ~ 2.34°
Close Focus Distance	100mm ~ 1000mm
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed	Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
Preset Speed	Pan: 240° /s; Tilt: 200° /s
Preset	300
PTZ Mode	5 Pattern, 8 Tour, Auto Scan, Auto Pan
Speed Setup	Human-oriented focal length/ speed adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol	DH-SD, Pelco-P/D (Auto recognition)
IR Distance	100m (2 near IR LED+ 4 far IR LED)
Audio
Interface	1 channel In
Auxiliary Interface
RS485	1
Alarm	2/1 channel In/Out
General
Power Supply	AC24V/3A (±10%)
Power Consumption	10.5W, 26W (IR on, Heater on)
Working Environment	-10ºC ~ 60ºC / Less than 90% RH
Ingress Protection	IP66
Vandal Resistance	n/a
Dimensions	Φ204.7(mm) x 359.9(mm)
Weight	7.5kg
