| Video |
| Imaging Device |
1/2.9" 2.19M CMOS |
| Total Pixels |
2,000(H) x 1,121(V) |
| Effective Pixels |
1,984(H) x 1,105(V) |
| Scanning System |
Progressive scan |
| Min illumination |
Color : 0.15Lux (1/30sec, F1.8), 0.003Lux (2sec, F1.8)
B/W : 0Lux (IR LED on) |
| Lens |
| Focal Length (Zoom Ratio) |
3.6mm fixed |
| Max. Aperture Ratio |
F1.8 |
| Angular Field of View |
H : 86.5Ëš / V : 47.8Ëš / D : 101.2Ëš |
| Min. Object Distance |
0.5m (1.64ft) |
| Lens Type |
fixed |
| Mount Type |
Board type |
| Pan / Tilt / Rotate |
| Pan / Tilt / Rotate Range |
0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Operational |
| IR Viewable Length |
15m (49.21ft) |
| Camera Title |
On / Off (Displayed 15 characters) |
| Day & Night |
True Day & Night |
| Backlight Compensation |
Off / BLC |
| Contrast Enhancement |
SSDR (Samsung Super Dynamic Range) (Off / On) |
| Digital Noise Reduction |
SSNR (Off / On) |
| Motion Detection |
Off / On (4ea rectangular zones) |
| Privacy Masking |
Off / On (6ea rectangular zones) |
| Gain Control |
Off / Low / Middle / High |
| White Balance |
ATW / AWC / Manual / Indoor / Outdoor |
| LDC (Lens Distortion Correction) |
Off / On (5 levels with min / max) |
| Electronic Shutter Speed |
Minimum / Maximum / Anti flicker |
| Flip / Mirror |
Flip / Mirror / Hallway view |
| Intelligent Video Analytics |
Motion detection with metadata, Tampering |
| Alarm Triggers |
Motion detection, Tampering detection, SD card error, NAS error |
| Alarm Events |
File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail |
| Network |
| Ethernet |
RJ-45 (10/100BASE-T) |
| Video Compression Format |
H.264, MJPEG |
| Resolution |
1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 320 x 240 |
| Max. Framerate |
H.264 : Max. 25fps at all resolutions
MJPEG : Max. 1fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768,
Max. 15fps at other resolution |
| Video Quality Adjustment |
H.264 : Target bitrate level control, MJPEG : Quality level control |
| Bitrate Control Method |
H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability |
Multiple streaming (Up to 3 profiles) |
| Audio I/O |
Built-in mic |
| Audio Compression Format |
G.711 u-law / G.726 selectable
G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Audio Communication |
Uni-directional audio |
| IP |
IPv4, IPv6 |
| Protocol |
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security |
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication |
| Streaming Method |
Unicast / Multicast |
| Max. User Access |
6 users at unicast mode |
| Storage |
micro SD/SDHC max. 32G, NAS
- Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC |
| Application Programming Interface |
ONVIF Profile S, G, SUNAPI (HTTP API) |
| Webpage Language |
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish |
| Web Viewer |
Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35),
Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X 10.10),
7.0.6(Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7)
* Mac OS X only |
| Central Management Software |
SmartViewer |
| Environmental |
| Operating Temp / Humidity |
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Storage Temp / Humidity |
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Electrical |
| Input Voltage / Current |
PoE (IEEE802.3af, Class2) |
| Power Consumption |
Max. 5.9W |
| Mechanical |
| Color / Material |
Ivory / Plastic |

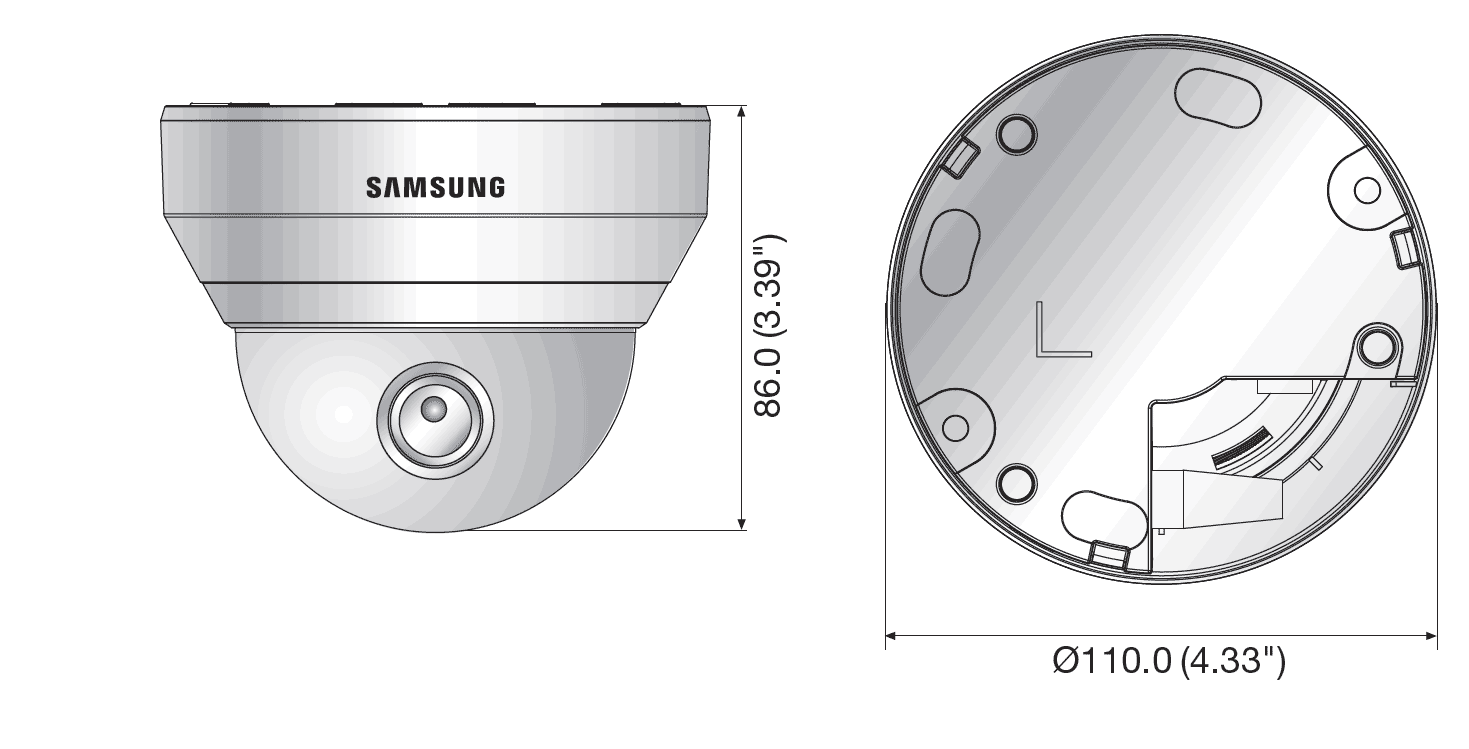

| Dimensions (WxH) |
Ø110.0 x 86.0mm (Ø4.33" x 3.39") |
| Weight |
245g (0.54 lb) |
