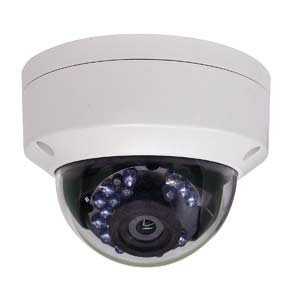

THC-D220 HiWatch by Hikvision HD-TVI 1080P IK10 Vandal Dome Camera with 20M IR Night Vision
Product ID THC-D220

THC-D220 HiWatch by Hikvision HD-TVI 1080P IK10 Vandal Dome Camera with 20M IR Night Vision

£35.00
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV

  • Summary
  • Full Spec
  • Diagram

Description

The THC-D220 is part of the HiWatch Series by Hikvision.

It offers 1080P HD resolution at very competitive price, ideal for home or small business security. The camera is nice and discreet, one of the smallest HD cameras available - it can be installed indoors or outdoors and provides night vision up to a maximum of 20 metres.

The THC-D220 has a 2.8mm lens which provides an angle of view of 105.8 - suitable for many applications.

On top of this, the camera is IK10 Vandal rated so is suitable for high risk areas.

When installing this camera outdoors, as with all domes, you need to protect the glass dome from the elements or else you might have night vision issues everytime it rains. So either install the camera so it is covered from rain, or try the wall mount brackets so the dome is facing down instead of outwards.

Important Note: This is a 2 Axis camera, this means the camera is ideally suited for being mounted on a ceiling - if you need to mount the camera on a wall it is advised you use the DS-1272ZJ-110 Wall mount bracket. If you do not use the wall mount bracket the camera will only be able to point directly forward when mounted on a wall.

Key Features

  • 2 Megapixel High Performance CMOS
  • Analogue HD output, up to 1080P
  • 2.8mm fixed lens
  • True Day/Night, DNR, Smart IR
  • up to 20m EXIR distance
  • IK10 Vandal rated
  • Switchable TVI / AHD / CVI / CVBS
  • IP66 weatherproof

Download

Manufacturers Spec Sheet (PDF)

Compatibility

We strongly advise using with HD-TVI recorders.

Camera
Image Sensor 2 MP CMOS image sensor
Effective Pixels 1930 (H) × 1088 (V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 2.8mm - Angle of View: 105.8°
Lens Mount φ14
Day & Night ICR
Adjustment Range Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355°
Synchronization Internal synchronization
Video Frame Rate 1080P @25fps
HD Video Output 1 Analog HD output
S/N Ratio Over 62dB
General
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4W
Weather Proof Ratings IP66
Impact Protection IK10
IR Range up to 20m

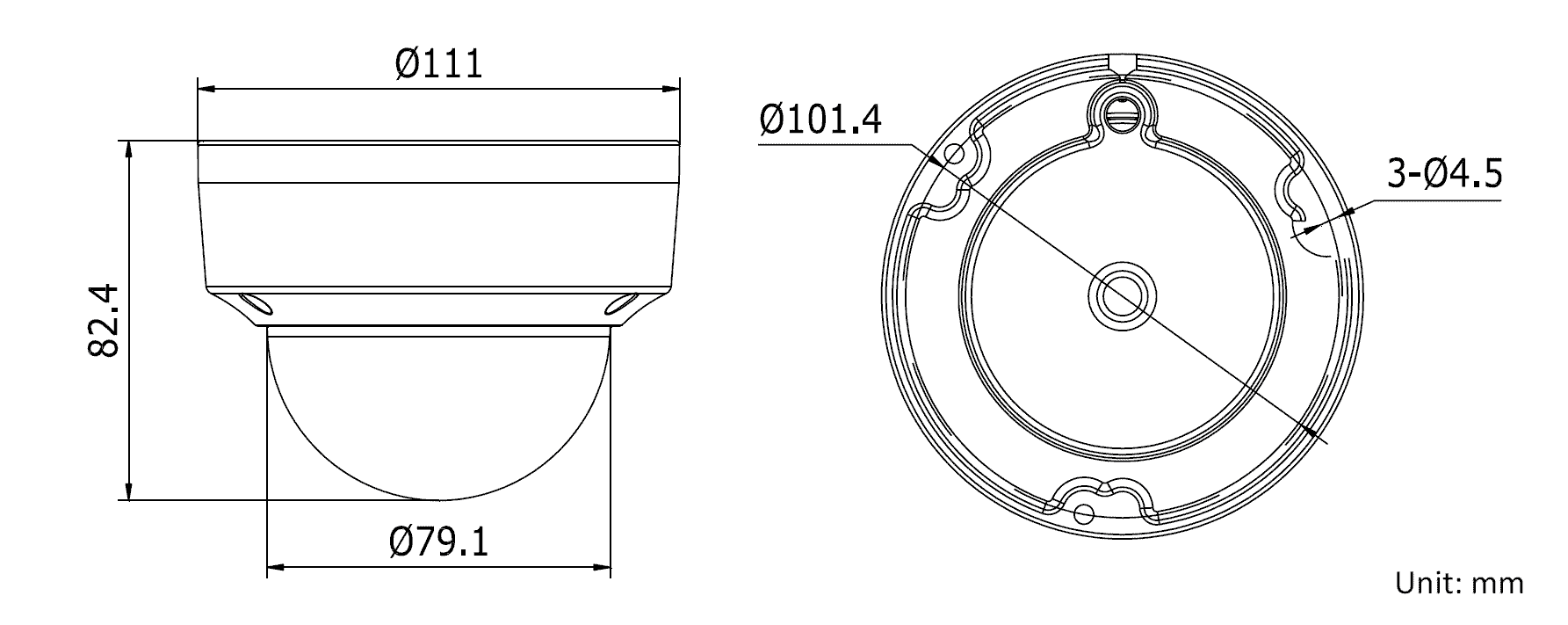

Dimensions Ø 111 × 82.4(
Weight Approx. 550g
