Product ID THC-T230

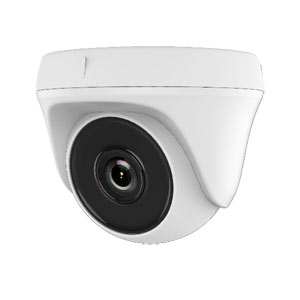

THC-T230 HiWatch by Hikvision HD-TVI 3MP Dome Camera with 40M EXIR Night Vision

In Stock 0
0 reviews | Write a review
3 Year Warranty

Free Shipping

  • Summary
  • Full Spec

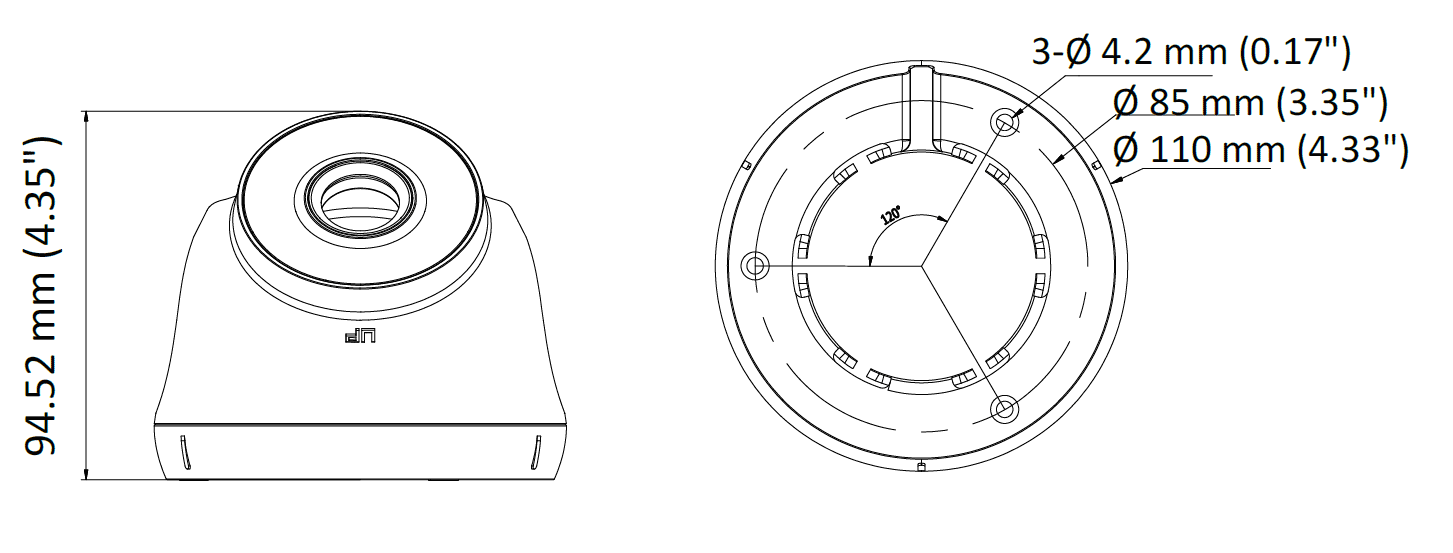

  • Diagram


This is part of the HiWatch Series by Hikvision.

It offers 3MP better than HD resolution at very competitive price, ideal for home or small business security. The camera is nice and discreet, one of the smallest HD cameras available - it can be installed indoors or outdoors and provides night vision up to a maximum of 40 metres.

The THC-T230 has a 2.8mm lens which provides an angle of view of 92° - suitable for many applications.

Key Features

  • 3 Megapixel High Performance CMOS
  • Analogue HD output, up to 3MP
  • 2.8mm fixed lens
  • True Day/Night, DNR, Smart IR
  • up to 40m EXIR distance
  • IP66 weatherproof


Manufacturers Spec Sheet (PDF)


We strongly advise using with 3MP (or above) HD-TVI recorders.

Sample Footage

Please make sure you select the highest resolution when viewing this footage.

Sample footage gives you a very good idea of the quality you can expect from this HiWatch Series by Hikvision THC-T230 3 Megapixel HD-TVI Mini Dome/Turret camera - this video shows you actual footage of the camera during the day and night.

Image Sensor 3 MP CMOS image sensor
Effective Pixels 2052 (H) × 1536 (V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 2.8mm - Angle of View: 92°
Lens Mount M12
Day & Night ICR
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1920 × 1536@18fps
HD Video Output 1 Analog HD output
S/N Ratio Over 62dB
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4W
Weather Proof Ratings IP66
IR Range up to 40m
Dimensions Ø 110 mm × 94.52 mm
Weight Approx. 240g
