ALQ-VVP9325DNIR-AHD ALTEQ 2MP Vari-Focal Dome 4in1 (AHD/TVI/CVI/CVBS) Camera with up to 40m Night Vision
Product ID ALQ-VVP9325DNIR-AHD

ALQ-VVP9325DNIR-AHD ALTEQ 2MP Vari-Focal Dome 4in1 (AHD/TVI/CVI/CVBS) Camera with up to 40m Night Vision

£50.00
0 reviews | Write a review
1 Year Warranty

  • Summary
  • Full Spec
  • Diagram

Key Features

  • Sensor: 1/2.8” Sony IMX322LQJ-C
  • Resolution: 1920 x 1080
  • Sensitivity Mono: 0.05 Lux/F1.2
  • All in One Solution: AHD/TVI/960H
  • IR Range: Up to 40m
  • LED Count: 18 IR
  • Water Resistance: IP66
  • Impact Resistance: IK08

Download

Manufacturers Spec Sheet (PDF)

Lens 2.8-12mm Vari-Focal (Manual)
Angle of View 86°Hx70°V (2.8mm) to 25°Hx19°V (12mm)
Angle Adjustment Rotation 0 ~ 360°, Azimuth 0 ~ 360°,
Alt. -15° ~ -90° (Horizontal Mount)
Sensor 1/2.8” Sony IMX322LQJ-C
DSP FH8536
Sensor Resolution 2MP
Effective Resolution 1920H x 1080V
Horizontal Resolution 1080P / 960H
Sync internal
Video Systems AHD / TVI / CVI / CVBS
Video Output 1.0Vpp, 75 OHM BNC
S/N Ratio ≥50dB (AGC off)
AE Mode Global/BLC
Image Enhancements Contrast, Sharpness, Colour Gain
WB Auto/Manual
2D-DNR 10 Levels
WDR OFF/ON
AGC YES
Gamma 0.45
Min Illumination (no IR) 0.05 Lux/F1.2
Min Illumination (IR on) 0 Lux
Day/Night True D/N with ICR (Colour / Mono / Smart)
IR Status CDS Auto Control
IR Range up to 40m
LED Count 18 IR
OSD Menu YES, with Inline Joystick Controller

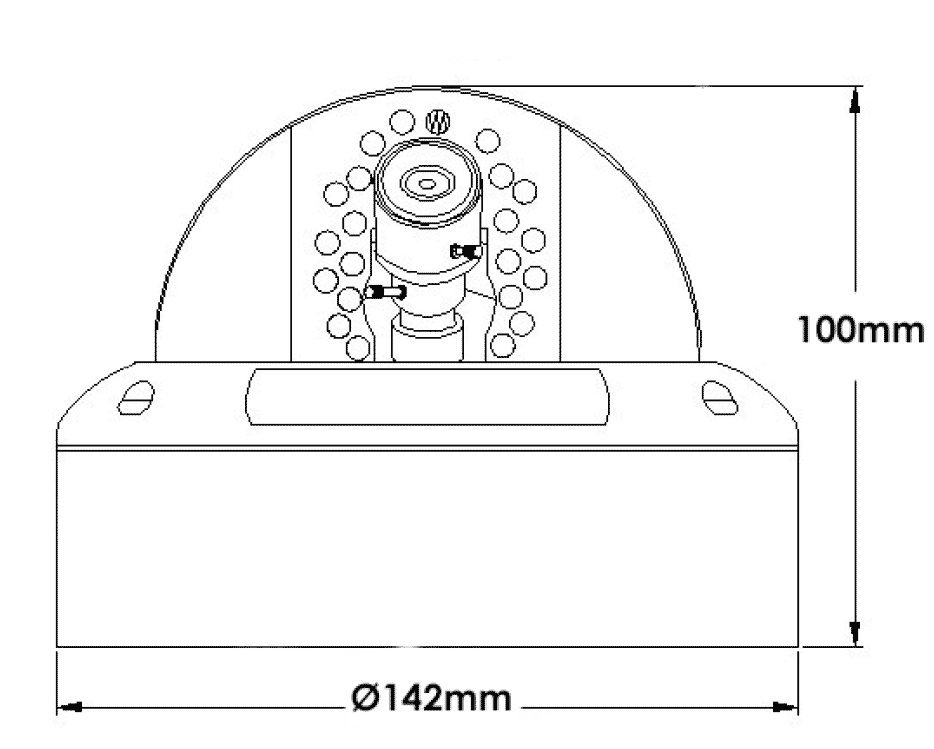

Dimensions Ø142mm x H100mm
Weight Approx. 630g
Water Resistance IP65
Impact Resistance IK08
Supply Voltage 12VDC +/-10%
Supply Current (max) 450mA
Storage Temperature -30°C to +60°C
Operating Temperature -10°C to +50°C
