Hikvision ColorVu DS-2CE72HFT-F28 5MP Full Time Colour Turret Camera (Black)

Product ID DS-2CE72HFT-F28-B

0 reviews | Write a review

Trade Only Item

In Stock 0

Hikvision ColorVu DS-2CE72HFT-F28 5MP Full Time Colour Turret Camera (Black)

Add Plug n Play Cable

20m

Add Power Supply

Yes

Trade Only Item

Free Shipping

Summary
Full Spec
Diagram

About the DS-2CE72HFT-F28-B

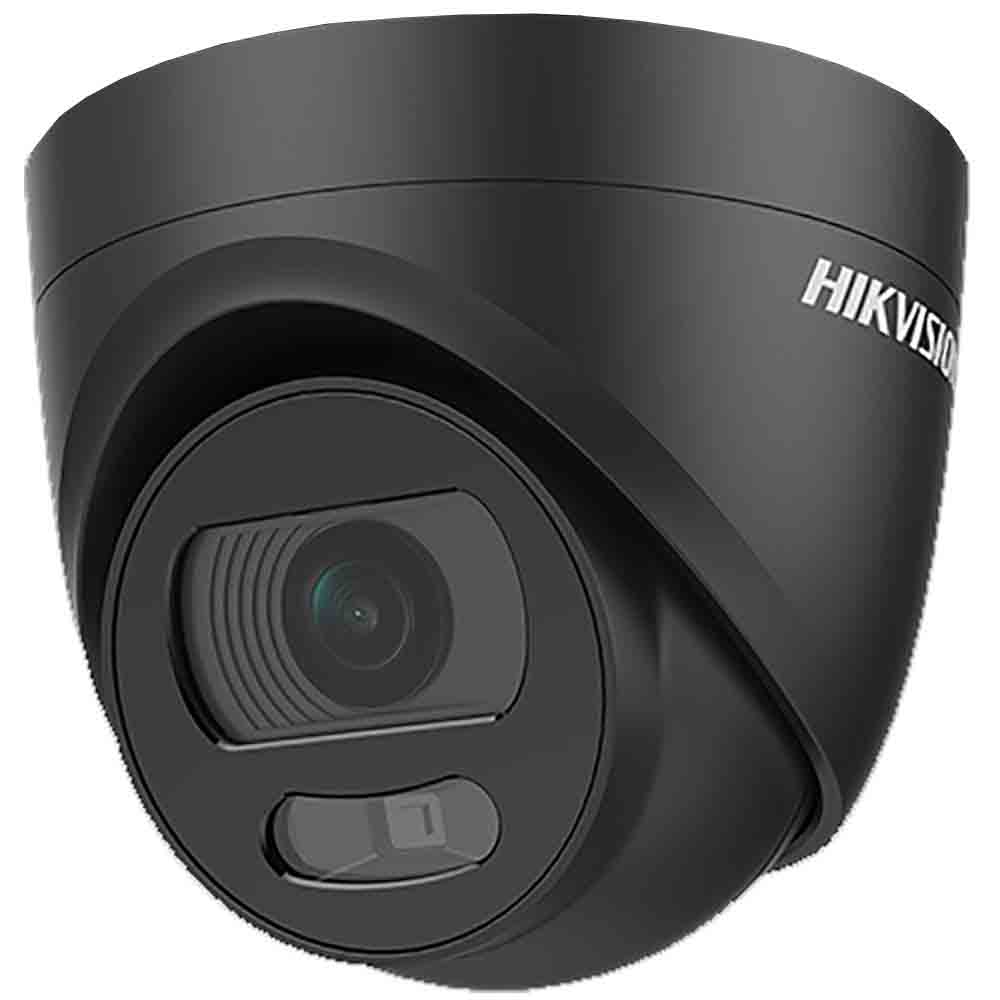

The DS-2CE72HFT-F28 is a Hikvision 5MP ColorVu turret camera in black, for HD-TVI (coax) CCTV systems.

ColorVu keeps the footage in colour day and night, with a white light up to 20m when it's dark. The 2.8mm lens gives a wide view, it copes well with bright backgrounds (130dB WDR) and it's weatherproof (IP67). It works with TVI, AHD, CVI or analogue recorders.

Key Features

5 MP, 2560 × 1944 resolution
24-hour color image
130 dB true WDR, 3D DNR
2.8 mm fixed focal lens
Smart Light, up to 20 m white light distance
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP67

Download

Manufacturers Spec Sheet (PDF)

Specification
Camera
Image Sensor	5 MP CMOS
Signal System	PAL/NTSC
Resolution	2560 (H) × 1944 (V)
Frame Rate	TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps; CVI: 4MP@30fps, 4MP@25fps; AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps; CVBS: PAL/NTSC
Min. illumination	0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
Shutter Time	PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Slow Shutter	Max. 16 times
Lens	2.8 mm fixed lens
Horizontal Field of View	2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8°
Lens Mount	M16
Strobe Light Alarm	Yes
Day & Night	Color
WDR (Wide Dynamic Range)	≥ 130 dB
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Menu
White Light	Auto/ Off
Image Mode	STD/HIGH-SAT
AGC	Yes
Day/Night Mode	Color
White Balance	Auto/Manual
AE (Auto Exposure) Mode	WDR/ BLC/ HLC/ Global/ HLS/ Anti-banding
Privacy Mask	4 programmable privacy masks
Motion Detection	4 programmable motion areas
Noise Reduction	3D DNR
Language	English
Function	Brightness, Sharpness, Mirror, Smart Light
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply	12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption	Max. 3.5 W
Protection Level	IP67
Material	Main Body: Metal, Enclosure: Plastic
White Light Range	Up to 20 m
Communication	HIKVISION-C

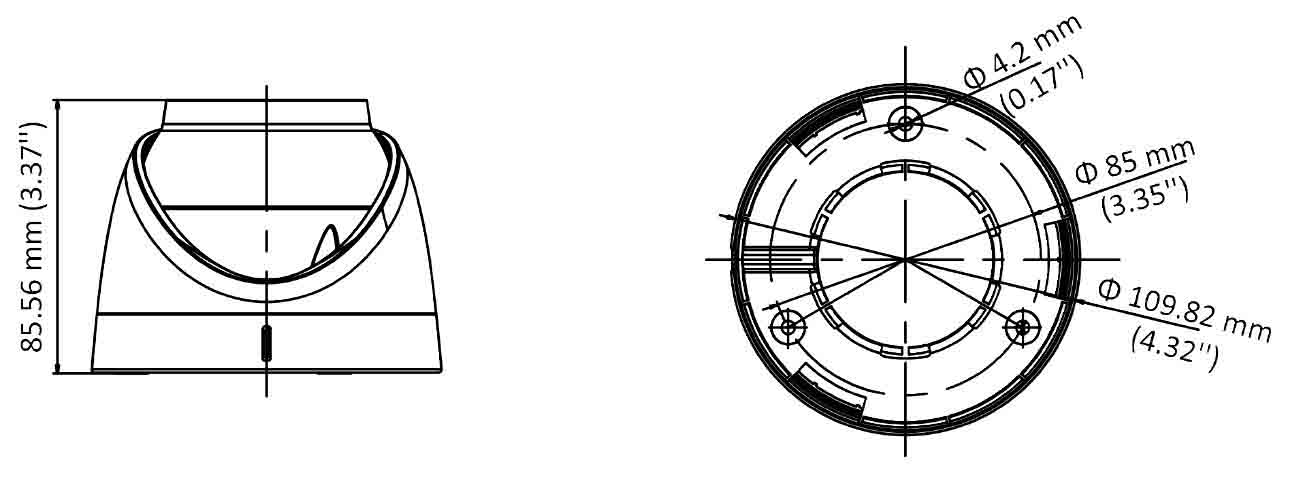

Dimensions	Ø 109.82 mm × 85.56 mm (4.32" × 3.37")
Weight	Approx. 350 g ( 0.77 lb.)
