DS-2CE56D8T-IT3 Hikvision HD-TVI Ultra Low Light 1080P WDR Turret Camera with 40M EXIR Night Vision
Product ID DS-2CE56D8T-IT3

DS-2CE56D8T-IT3 Hikvision HD-TVI Ultra Low Light 1080P WDR Turret Camera with 40M EXIR Night Vision

Trade Only Item
In Stock 0
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV
Happy Bday
Happy Bday
Happy Bday

Free Shipping


  • Summary
  • Full Spec
  • Diagram

Description

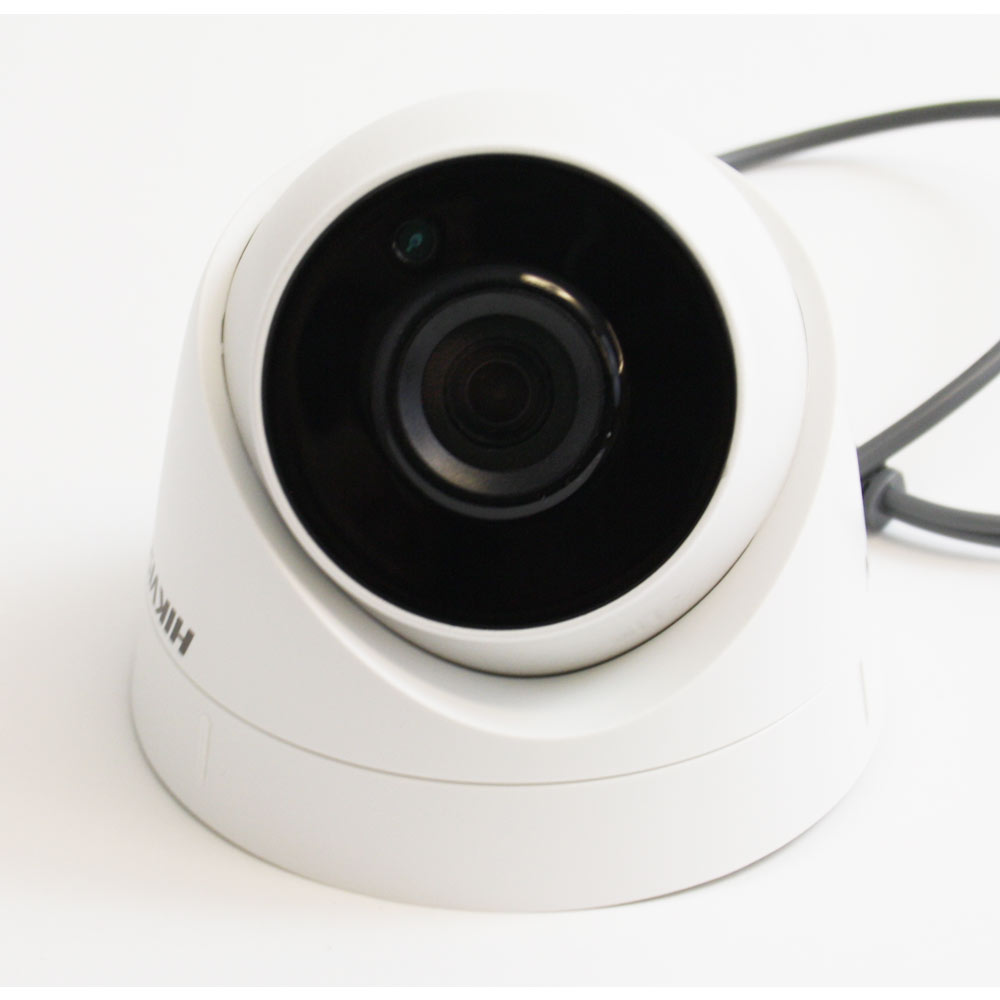

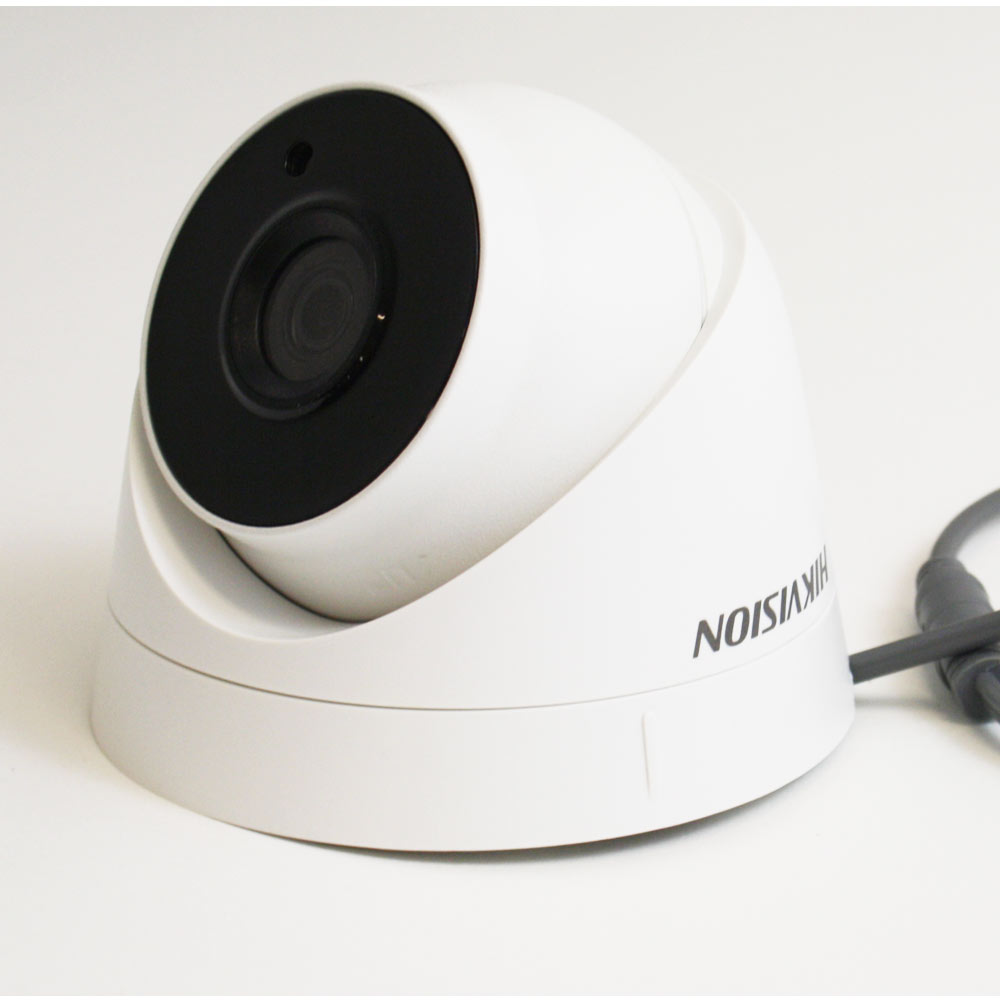

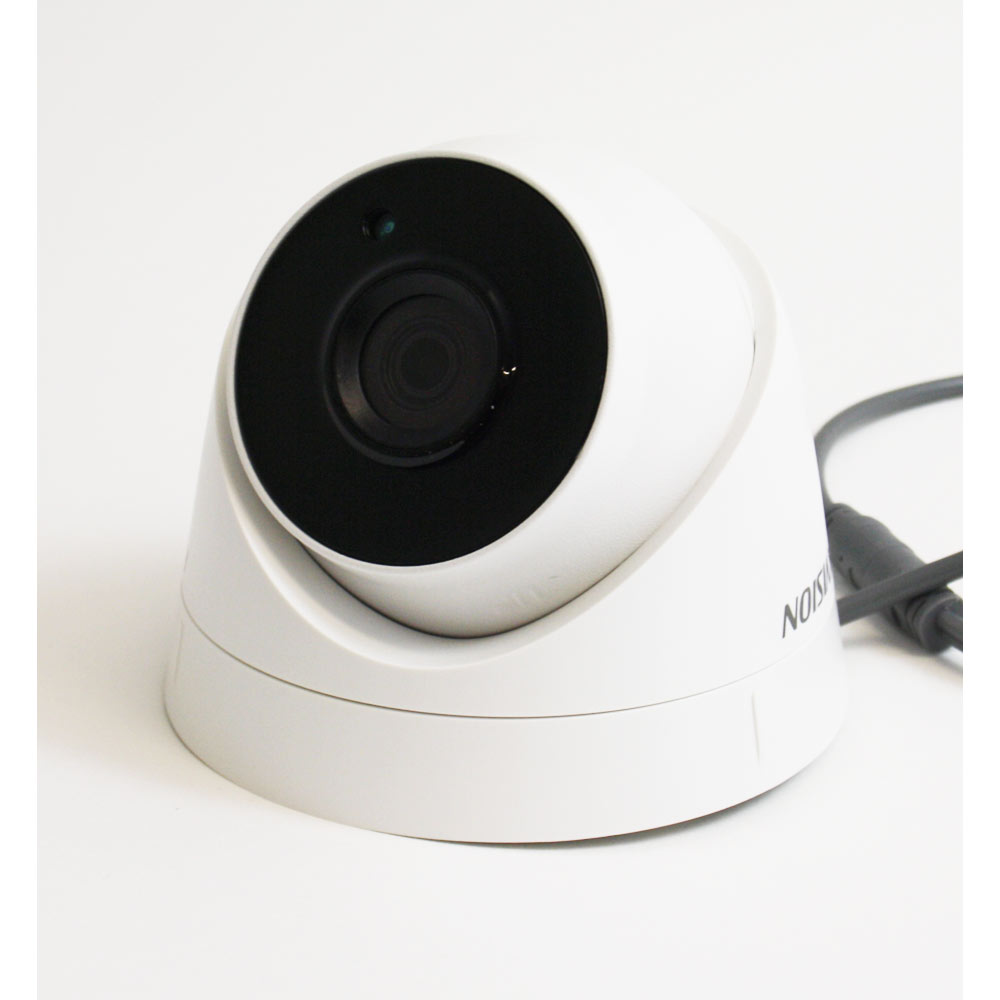

This is a nice neat Ultra Low Light Turret camera from Hikvision, offering 1080P High definition video with up to 40 metre night vision. This is a HD-TVI camera which will only work with a HD-TVI DVR.

The cameras have EXIR - which use less power than traditional IR LEDs and has a longer life-span, more importantly thou they offer very good night vision. It also has true WDR (120dB) allowing it to handle various light levels in the same scene much better than lower end cameras.

The DS-2CE56D8T-IT3 can be installed indoors or outdoors, on walls or ceilings, making it suitable for most installations.

Key Features

  • 2 Megapixel high-performance CMOS
  • 3.6mm - Angle of View: 82.6°
  • Analog HD output, up to 1080P resolution
  • True Day/Night
  • OSD Menu, DNR, Smart IR
  • True WDR, up to 120dB
  • EXIR technology, up to 40m IR distance
  • IP67 weatherproof
  • Up the Coax(HIKVISION-C Protocol)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

We strongly advise using with Hikvision HD-TVI recorders only.

Camera
Image Sensor 2MP CMOS Image Sensor
Effective Pixels 1920(H) x 1080(V)
Min. Illumination Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 3.6mm - Angle of View: 82.6°
Lens Mount M12
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day & Night IR cut filter with auto switch
Wide Dynamic Range 120dB
Video Frame Rate PAL: 1080p@25fps
HD Video Output 1 Analog HD output
Synchronization Internal synchronization
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
Auto White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
Language English / Chinese
General
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4W
Weather Proof Ratings IP67
IR Range up to 40m
Communication Up the coax
Protocol: HIKVISION-C(TVI output)
Dimensions Φ110 × 93.2 mm
Weight Approx. 350g
