DS-2CE56F7T-VPIT3Z Hikvision HD-TVI 3MP Motorised Zoom VandalProof Dome Camera with 40M EXIR Night Vision (1 Yr)
Product Code DS-2CE56F7T-VPIT3Z

DS-2CE56F7T-VPIT3Z Hikvision HD-TVI 3MP Motorised Zoom VandalProof Dome Camera with 40M EXIR Night Vision (1 Yr)

Login for Price
0 reviews | Write a review
1 Year Warranty
HD-TVI CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 3 Megapixel high-performance CMOS
  • Analog HD output, up to 3MP resolution
  • 2.8-12mm motorized vari-focal lens
  • True Day/Night, OSD Menu, Smart IR
  • True WDR, up to 120dB
  • EXIR technology, up to 40m IR distance
  • IP66 weatherproof & vandal proof
  • Up the Coax(HIKVISION-C Protocol)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

We strongly advise using with Hikvision HD-TVI recorders only.

Camera
Image Sensor 2MP CMOS Image Sensor
Effective Pixels 2052(H) x 1536(V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens Motorized VF lens; 2.8 - 12 mm
angel of view: 26.8° to 83°
Lens Mount φ14
Adjustment Range Pan: 0 - 340°, Tilt: 0 - 75°, Rotation: 0 - 355°
Day & Night IR cut filter with auto switch
Wide Dynamic Range 120dB
Video Frame Rate 1920 × 1536@18fps
HD Video Output 1 Analog HD output
Synchronization Internal synchronization
S/N Ratio Over 62dB
up the Coax Support
Menu
Auto White Balance Auto/MWB
BLC Support
AGC Support
Language English / Chinese
Functions Wide Dynamic Range; Digital Noise reduction; Mirror; SMART IR
General
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4.5W
Weather Proof Ratings IP66
Impact Protection IK10
IR Range up to 40m
Communication Up the coax
Protocol: HIKVISION-C(Coaxitron)

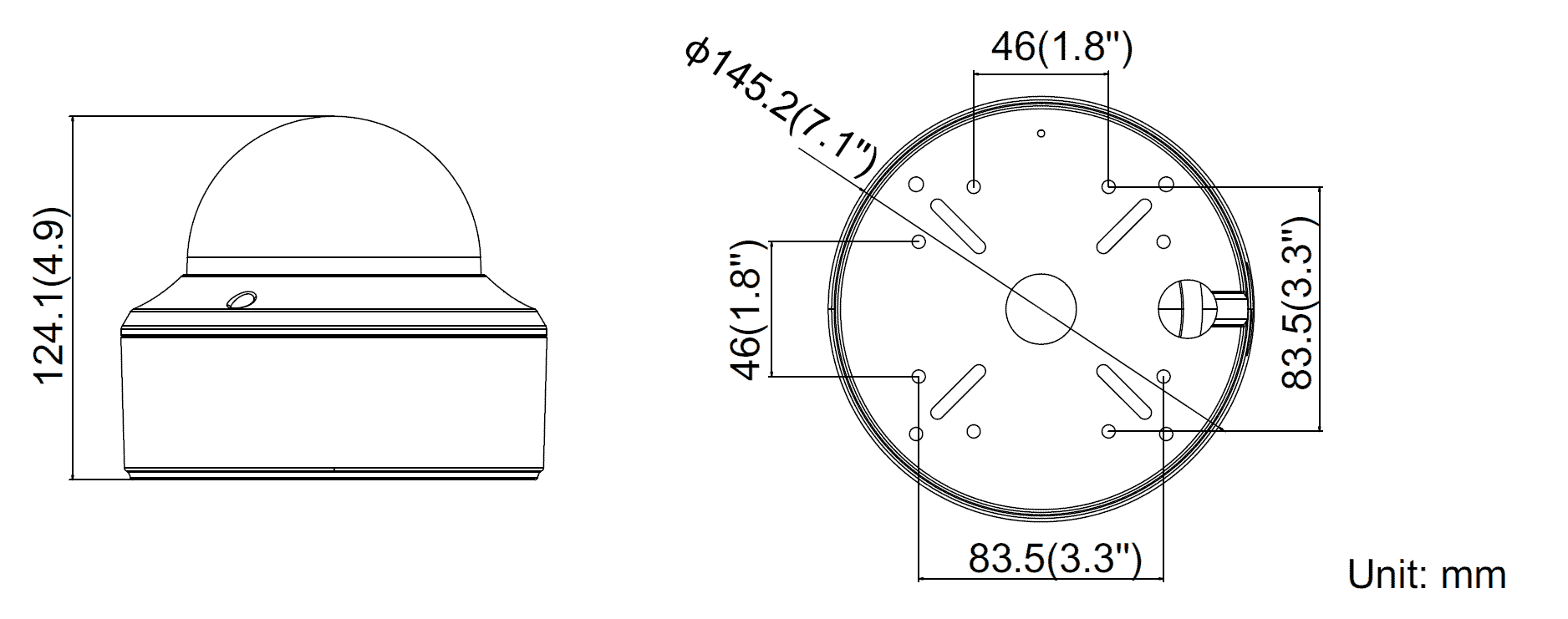

Dimensions φ145.2mm x 124.1mm
Weight Approx. 1600g
