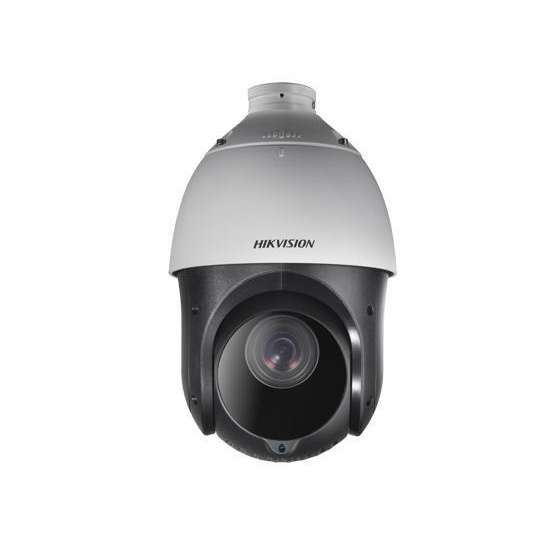

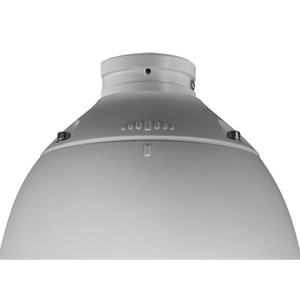

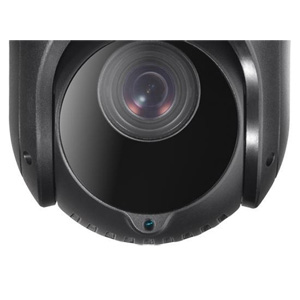

DS-2DE4220IW-DE Hikvision 1080P HD 20X Zoom IP PTZ Camera with 100m Night Vision #1DS-2DE4220IW-DE Hikvision 1080P HD 20X Zoom IP PTZ Camera with 100m Night Vision #2DS-2DE4220IW-DE Hikvision 1080P HD 20X Zoom IP PTZ Camera with 100m Night Vision #3
Product ID DS-2DE4220IW-DE

DS-2DE4220IW-DE Hikvision 1080P HD 20X Zoom IP PTZ Camera with 100m Night Vision

Trade Only Item
In Stock 0
0 reviews | Write a review
2 Year Warranty

Free Shipping

  • Summary
  • Full Spec
  • Diagram


The Hikvision DS-2DE4220IW-DE is a 2 megapixel (1920 x 1080) 20x PTZ zoom camera. The camera has built in IR with a range of upto 100m and is housed in an IP66 rated housing. Some of the great features this camera includes are day/night function and digital wide dynamic range.

Hikvision DS-2DE4220IW-DE PTZ Dome Cameras are able to capture high quality images in low light environment with its black anti-reflective glass. The H.265 video compression can reduce up to 50% transmission bandwidth. The black anti-reflective glass increase the luminousness which can reach up to 100m IR distance.

Embedded with 1/2.8’’ progressive scan CMOS chip makes DWDR and 2MP real-time resolution possible. With the 20X optical zoom Day/Night lens, the camera offers more details over expansive areas.

Key Features

  • Up to 1080P HD (1920 x 1080) resolution
  • 1/2.8" Progressive Scan CMOS
  • 20X Optical Zoom
  • Up to 100m IR distance
  • True day & night, Digital WDR
  • IP66
  • 12v DC (PSU not included)


Manufacturers Spec Sheet (PDF)

Image Sensor 1/2.8" Progressive Scan CMOS
Effective Pixels 1920(H) x 1080(V)
Min. Illumination F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux, 0 lux with IR
White Balance Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp
AGC Auto / Manual
S/N Ratio more than 52dB
BLC On / Off
HLC Support
WDR Support
Shutter Time 1-1/10,000s
Day & Night ICR
Digital Zoom 16X
Privacy Masking 8 privacy masks programmable
Auto Focus Auto / Semi-automatic / Manual
Focal Length 4.7-94.0mm, 20x
Zoom Speed Approx.3s(Optical Wide-Tele)
Angle of View 58.3-3.2 degree (Wide~Tele)
Minimum Working Distance 10 - 1000mm(Wide-Tele)
Aperture Range F1.6 - F3.5
Pan & Tilt
Pan Range 360°endless
Pan Speed Pan Manual Speed: 0.1° - 80°/s,
Pan Preset Speed: 80°/s
Tilt Range -15° - 90° (Auto Flip )
Tilt Speed Tilt Manual Speed: 0.1° - 80°/s,
Tilt Preset Speed: 80°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Power loss recovery Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display ON / OFF
IR irradiation distance 100m
IR irradiation angle Adjustable by zoom
Ethernet 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution 1920 x 1080
Frame Rate 50Hz:25 fps (1920 x 1080), 25 fps (1280 x 720)
Main Stream 50Hz:25 fps (1920 x 1080), 25 fps (1280 x 720)
Sub Stream 50Hz:25 fps (704 × 576), 25 fps (352 × 288), 25 fps (320 × 240)
Image Compression H.265/H.264/MJPEG
ROI encoding Support 4 areas with adjustable levels
No. of Simultaneous Users Up to 20 users
Dual Stream Support
Mini SD Card Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User / Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security User authentication (ID and PW)
host authentication (MAC address)
IP address filtering
EZVIZ Support
Client GUI
Camera Control Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display Time: Week: Date, 6 formats on the Client
Client Support iVMS-4200
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
Menu Language English
Power Supply 12v DC
Power Consumption Max. 20W
Working Temperature/Humidity -30 °C ~ 65 °C (-22°F ~ 149 °F)90% or less
Protection Level IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimensions Φ164.5(mm) × 295(mm)
Weight (approx.) 2kg (4.41lbs)
Mount Option Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ

dvr dimensions
