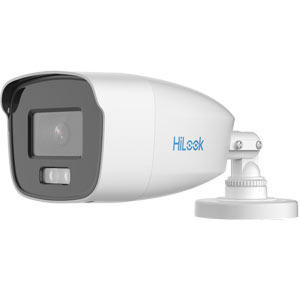

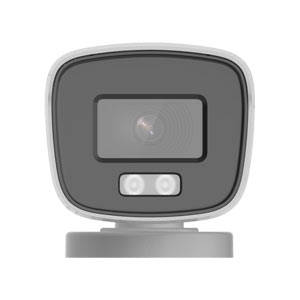

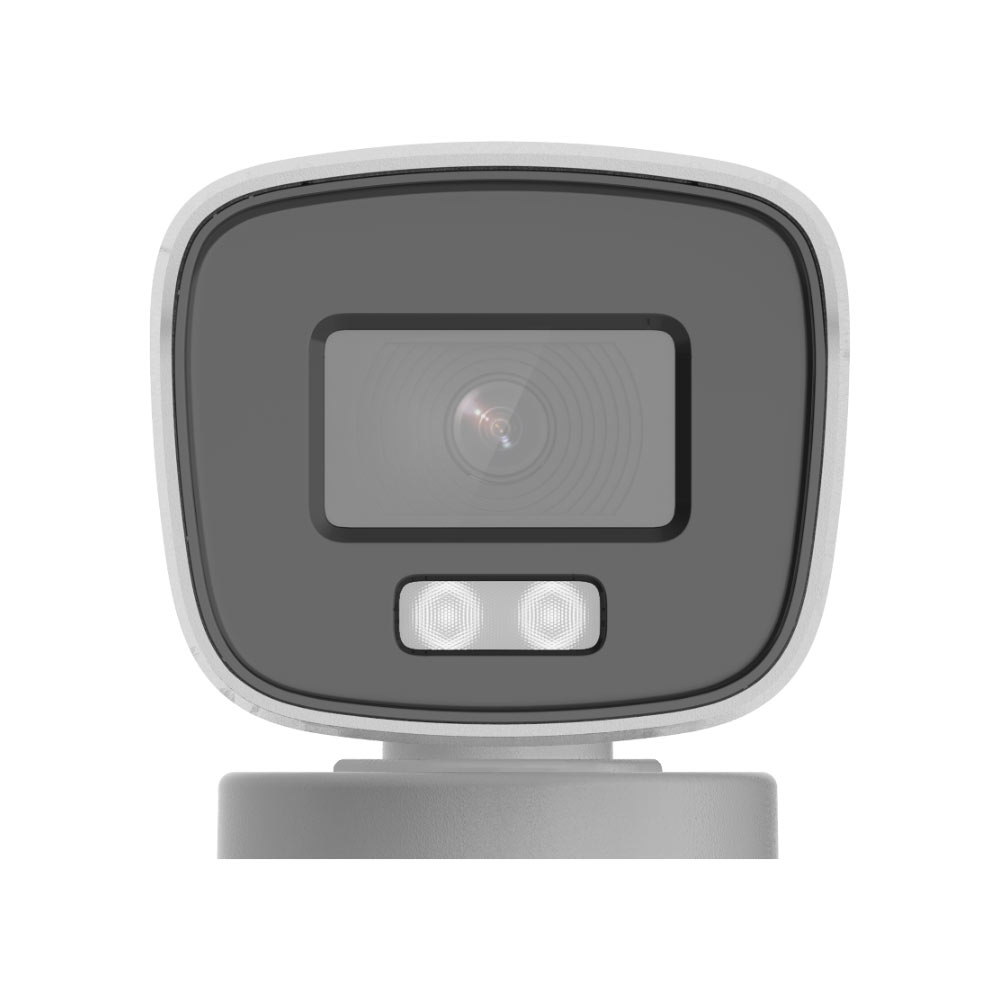

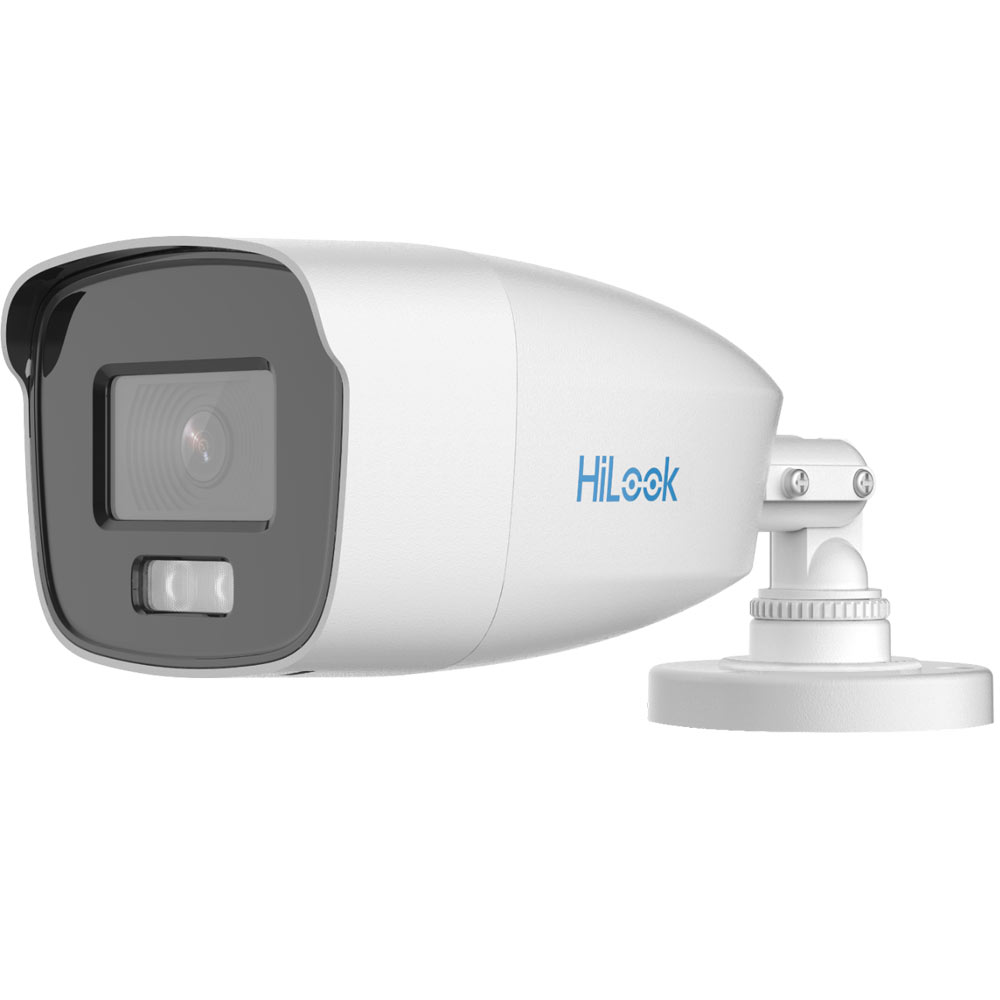

HiLook by Hikvision ColorVu Lite THC-B229-M 2MP Full Time 24/7 Colour (White Light) Bullet Camera

Product ID THC-B229-M

0 reviews | Write a review

£6.00

In Stock 0

HiLook by Hikvision ColorVu Lite THC-B229-M 2MP Full Time 24/7 Colour (White Light) Bullet Camera

HiLook by Hikvision ColorVu Lite THC-B229-M 2MP Full Time 24/7 Colour (White Light) Bullet Camera #1

HiLook by Hikvision ColorVu Lite THC-B229-M 2MP Full Time 24/7 Colour (White Light) Bullet Camera #2

Add Plug n Play Cable

20m

Add Power Supply

Yes

£6.00

Free Shipping

Summary
Full Spec
Diagram

About the THC-B229-M

The THC-B229-M is a HiLook by Hikvision 2MP (1080p) ColorVu Lite bullet camera for HD-TVI (coax) CCTV systems.

ColorVu Lite keeps the footage in colour day and night, with a white light up to 40m when it's dark. The 2.8mm lens gives a 102 degree view. It works with TVI, AHD, CVI or analogue recorders. It's weatherproof (IP66).

Key Features

2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
2.8mm fixed lens - FOV: 102°
Up to 40m white light distance for bright night imaging
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP66

Download

Manufacturers Spec Sheet (PDF)

Specification
Camera
Image Sensor	2 MP CMOS
Signal System	PAL/NTSC
Resolution	1920 (H) × 1080 (V)
Frame Rate	TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD:1080p@25fps/30fps CVBS: PAL/NTSC
Min. illumination	0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Lens	2.8 mm fixed lens
Horizontal Field of View	2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
Lens Mount	M12
Light Alarm	Solid Light Alarm (White Light)
Day & Night	Color
WDR (Wide Dynamic Range)	Digital WDR
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Menu
White Light	Auto/ Off
Image Mode	STD/HIGH-SAT/HIGHLIGHT
AGC	Yes
Day/Night Mode	Color
White Balance	Auto/Manual
AE (Auto Exposure) Mode	DWDR,BLC,HLC,Global
Noise Reduction	3D DNR/2D DNR
Language	English
Function	Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light
Lighting Mode	White Light
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply	12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption	Max. 4 W
Protection Level	IP66
Material	Metal
White Light Range	Up to 40 m

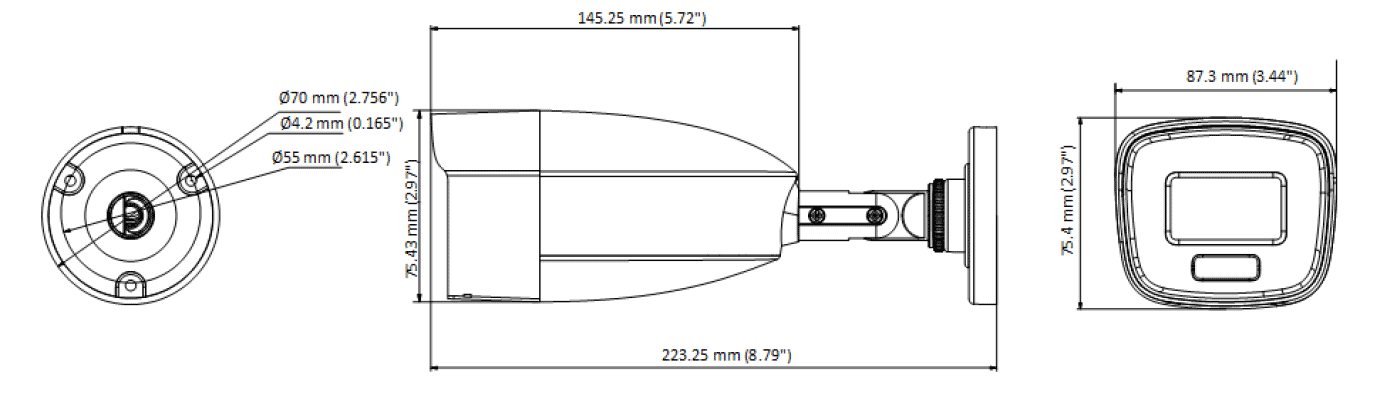

Dimensions	75.4 mm × 223.25 mm × 87.3 mm
Weight	Approx. 560g (1.23 lb)
