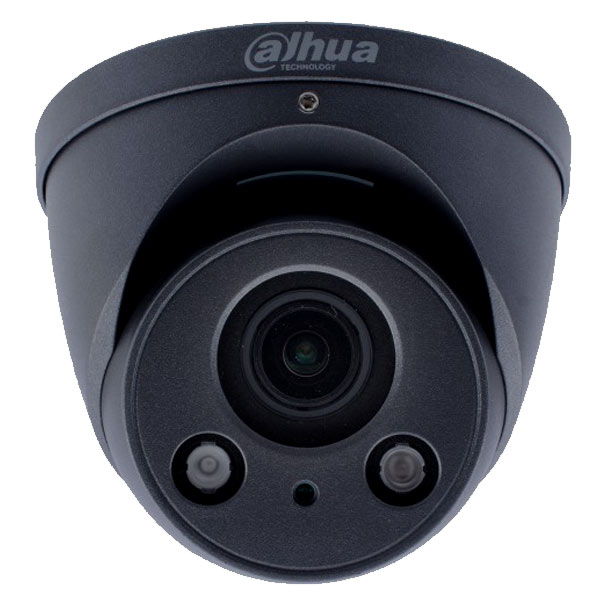

HAC-HDW2401R-Z-G Dahua HD-CVI 120dB WDR 4MP Motorised Zoom Eyeball Dome Camera with 60M Night Vision (Grey)
Product Code HAC-HDW2401R-Z-G

HAC-HDW2401R-Z-G Dahua HD-CVI 120dB WDR 4MP Motorised Zoom Eyeball Dome Camera with 60M Night Vision (Grey)

Login for Price
0 reviews | Write a review
3 Year Warranty
HD-CVI CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • Max 4MP real-time
  • 120dB True WDR, 3DNR
  • 2.7-12mm motorized lens (98°~26°)
  • Max. IR length 60m, Smart IR
  • IP67, DC12V

Download

Manufacturers Spec Sheet (PDF)

Compatibility

For use with HD-CVI recorders ONLY.

For 4MP resolution a 7000-4M series recorder is required

Sample Footage

Please make sure you select the highest resolution when viewing this footage.

There are several short clips showing actual footage of the Dahua HAC-HDW2401R-Z-G 4MP HD-CVI Camera in action, as you can see the camera provides exceptional image quality - with the added motorised zoom feature it makes this a very good option for many sites.

The first three clips we have the lens set to its widest angle (2.7mm lens) - the final three clips are at its most Zoomed in (12mm lens), this gives you very good knowledge of the kind of views capable from this camera.

Camera
Image Sensor 1/3" CMOS
Effective Pixels 2688(H)×1520(V), 4.1MP
Scanning System Progressive
Electronic Shutter PAL: 1/4s~1/100,000s
Min. Illumination 0.01Lux/F1.3, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 60m (197feet)
IR On/Off Control Auto / Manual
IR LEDs 2
Lens
Lens Type Motorized lens / Fixed iris
Focal Length 2.7-12mm
Angle of View H: 98°~26°
Max Aperture F1.3
Focus Control Auto / Manual
Pan / Tilt / Rotation
Pan / Tilt / Rotation Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
Video
Resolution 4MP (2560×1440)
Frame Rate 25fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual
Interface
Audio Interface N/A
Eelectrical
Power Supply DC12V ±25%
Power Consumption Max 8.4W
Environmental
Operating Conditions -30°C~+60°C / Less than 90% RH
* Start up should be done at above -30°C
Storage Conditions -30°C~+60°C / Less than 90% RH
Ingress Protection & Vandal Resistance IP67
Environmental
Casing Aluminium
Dimensions Φ122mm × 104.9mm
Weight 0.59kg
