Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Min. Illumination |
0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time |
1/3s ~ 1/100,000s |
Lens |
2.8mm @ F2.0 - horizontal field of view 100° |
Lens Mount |
M12 |
Day & Night |
ICR |
IR Range |
up to 30m |
Adjustment Range: (Manual) |
Pan:0° - 360°, Tilt: 0° - 180°, Rotation: 0° - 360° |
Digital noise reduction |
3D DNR |
WDR |
Digital WDR |
Compression Standard |
Video compression |
Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG |
H.264 Type |
Baseline Profile/Main Profile/High Profile |
H.264+ Type |
Main stream supports |
H.265 Type |
Main Profile |
H.265+ Type |
Main stream supports |
Bit rate |
32 Kbps ~ 8 Mbps |
Smart Feature-set |
Region of Interest |
1 fixed region for main stream and sub-stream |
Image |
Max. Image Resolution |
2560 x 1440 |
Main Stream |
50Hz: 20fps (2560 × 1440), 25fps(2304×1296 / 1920×1080 / 1280×720) |
Sub Stream |
50Hz: 25fps(640×480 / 640×360 / 352×240) |
Image Enhancement |
BLC, 3D DNR |
Image settings |
Saturation, brightness, contrast, sharpeness, AGC, white balance adjustable by client software or web browser |
Day/Night Switch |
Auto, scheduled |
Network |
Network Storage |
NAS (NFS, SMB/CIFS) |
Alarm trigger |
Motion detection, video tampering alarm, illegal login |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
System Compatibility |
ONVIF (Profile S, Profile G), ISAPI |
General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
Interface |
Communication interface |
1 RJ45 10 M / 100 M Self adaptive Ethernet port |
General |
Operating Conditions |
-30 °C ~ 50 °C (-22°F ~ 122 °F) humidity 95% or less (non-condensing) |
Power Supply |
12 VDC ± 25% , PoE (802.3af) |
Power Consumption |
Max. 7W |
Ingress Protection |
IP67 TVS 2000V lightning protection, surge protection and voltage transient protection |
Material |
Metal & Plastic |

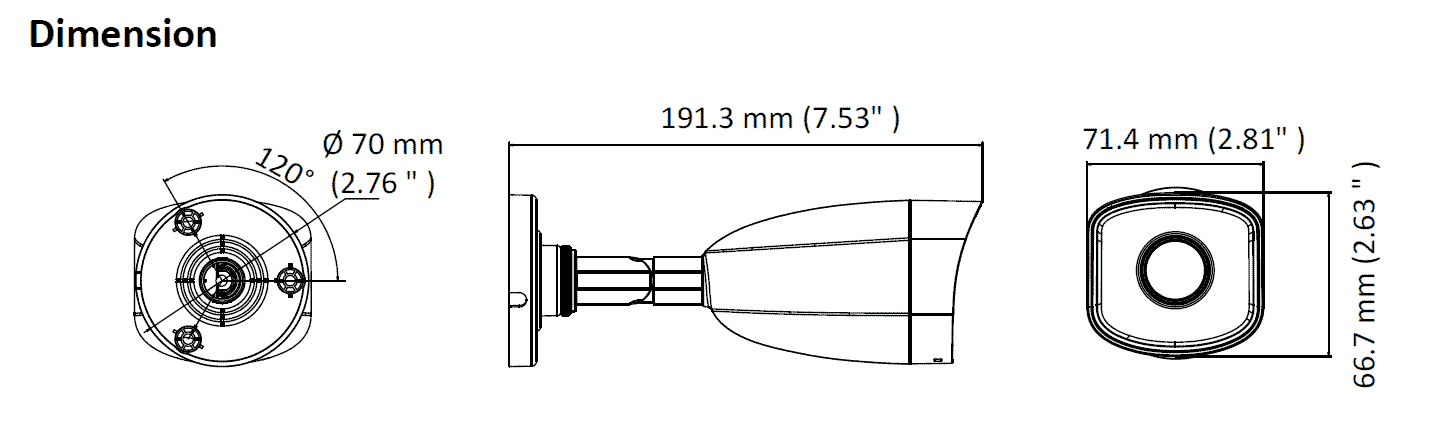

Dimensions |
Φ70 x 191.3mm |
Weight |
Approx. 350g |
