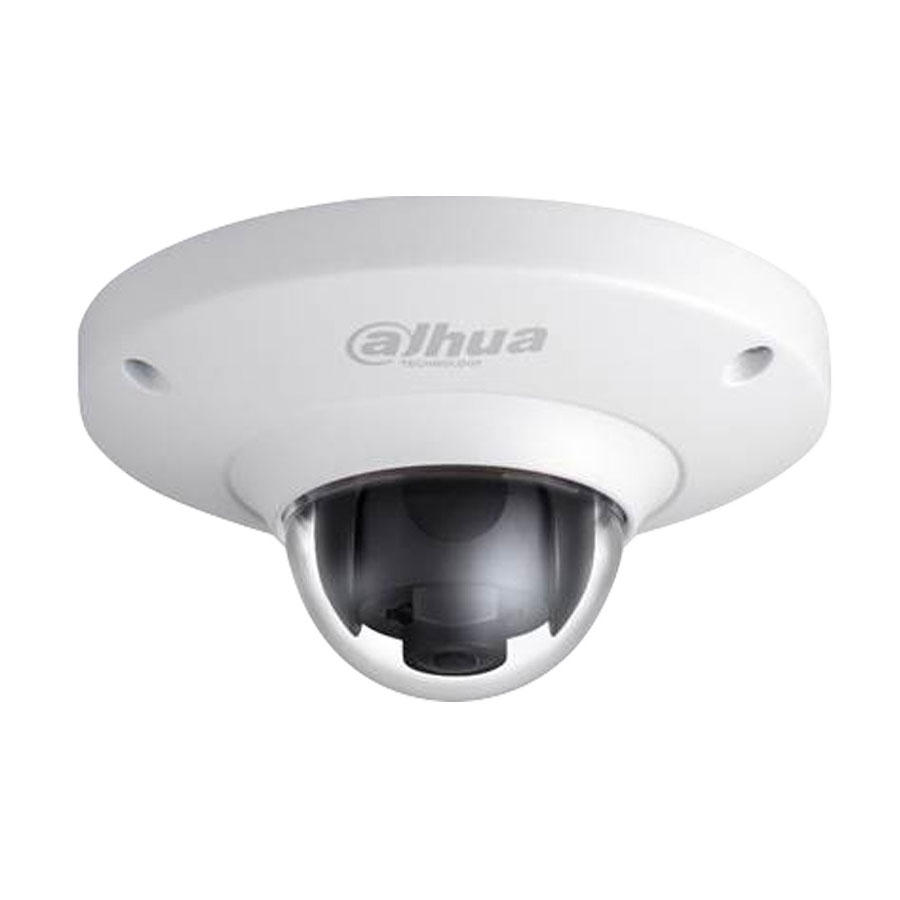

IPC-EB5500 Dahua 5.0 Megapixel IP Fisheye Camera with Audio I/O & PoE
Product ID IPC-EB5500

IPC-EB5500 Dahua 5.0 Megapixel IP Fisheye Camera with Audio I/O & PoE

£238.50
In Stock 0
Sold out

0 reviews | Write a review
3 Year Warranty
IP CCTV
Happy Bday
Happy Bday
Happy Bday

Free Shipping


  • Summary
  • Full Spec

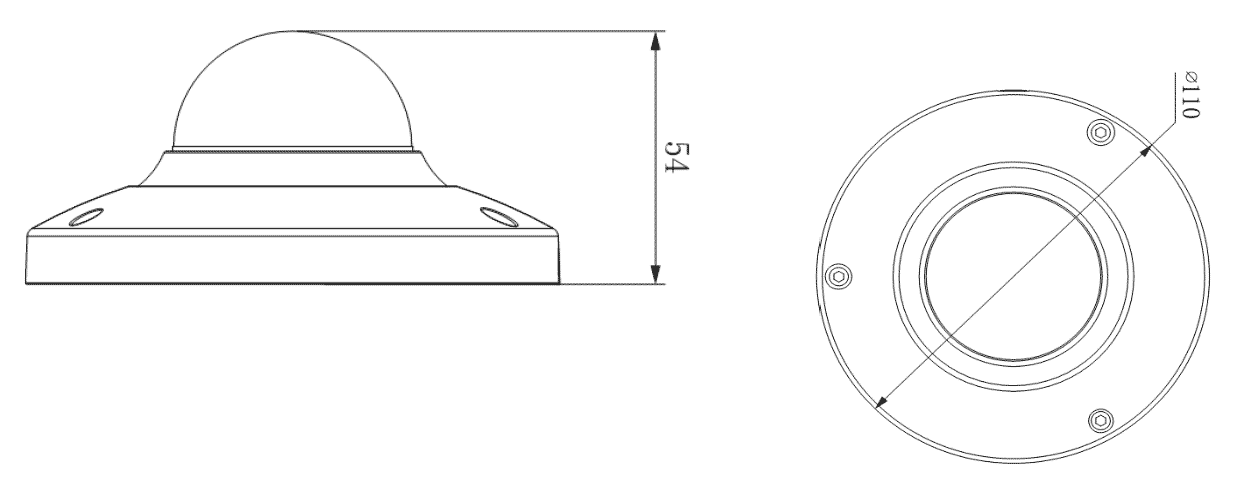

  • Diagram

Key Features

  • 1/3” 5 Megapixel progressive scan CMOS
  • H.264 & MJPEG dual-stream encoding
  • Max 12fps@5M(2560×1920), 25/30fps@UXGA
  • Day/Night(Electronic), 3DNR, AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 1.42mm fixed lens
  • Micro SD memory, IK10, PoE
  • De-warp only supported on Dahua 4K NVR's

Download

Manufacturers Spec Sheet (PDF)

Need a Bracket:

You can download the Dahua Bracket Guide here.

CAMERA
Image Sensor 1/3” 5 Megapixel progressive scan CMOS
Effective Pixels 2592(H) x 1944(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s
Min. Illumination 0.01lux/F2.6(color) ,0.001Lux@F2.6(B/W)
S/N Ratio more than 50dB
CAMERA FEATURES
Max. IR LEDs Length n/a
Day/Night Auto(Electronic) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
LENS
Lens 1.42mm
Max Aperture F2.6
Angle of View H: 185°
VIDEO
Compression H.264 / MJPEG
Resolution 5M (2560x1920) / 3M (2048×1520) / UXGA (1600×1200) / 1.3M (1280×960) / 720P (1280×720) / D1 (704×576) / CIF (352×288)
Frame Rate Main Stream: 5M(1~12fps)/ UXGA (1 ~ 25fps)
Sub Stream: D1 / CIF (1 ~ 25fps)
Bit Rate H.264: 20K ~ 8192Kbps
Corridor mode n/a
AUDIO
Compression G.711a/G.711u/PCM
Interface 1/1 channel In/Out (Built in Mic)
NETWORK
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
AUXILIARY INTERFACE
Memory Slot Micro SD, Max 64GB
RS485 n/a
Alarm 1/1 channel In/Out
PIR Sensor Range n/a
GENERAL
Power Supply DC12V, PoE
Power Consumption Max 6W
Working Environment -30°C~+60°C, Less than 95% RH
Ingress Protection n/a
Vandal Resistance IK10
Dimension Φ110mm × 54mm
Weight Approx. 0.25kg
