Product Code
IPC-HDBW4800E

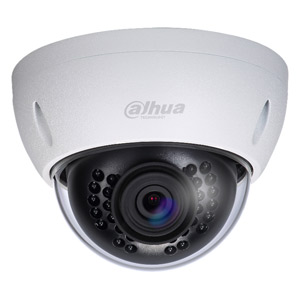

IPC-HDBW4800E Dahua Ultra HD 4K (7fps) IP Dome Camera with 20m IR Night Vision & PoE
£373.50
0 reviews |
Write a review
Tweet
Summary
Full Spec
Diagram
Key Features
1/2.3” 4K progressive scan CMOS
H.264/MJPEG & dual-stream encoding
7fps@4K(3840×2160)
DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
Lens: 4mm
Max. IR LEDs Length 20m
IP66, IK10, PoE
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Download
Manufacturers Spec Sheet
(PDF)
Compatibility
Dahua Ultra HD 4K Network IP Recorders only.
Image Sensor
1/2.3” 4K progressive scan CMOS
Effective Pixels
3840(H)x2160(V)
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/10000s
Min. Illumination
0. 1Lux/F1.6 (Color), 0Lux/F1.8(IR on)
S/N Ratio
more than 50dB
Camera Features
Max. IR LEDs Length
20m
Day/Night
Auto(ICR) / Color / B/W
Backlight Compensation
BLC / HLC / DWDR
White Balance
Auto/Manual
Gain Control
Auto/Manual
Noise Reduction
3D
Privacy Masking
Up to 4 areas
Lens
Focal Length
4mm
Max Aperture
F1.6
Angle of View
H: 80°
Mount Type
Board-in Type
Video
Compression
H.264 / MJPEG
Resolution
4K(3840×2160) / 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate - Main Stream
4K(1~7fps)/3M/1080P/ (1 ~ 25/30fps)
Frame Rate - Sub Stream
D1/CIF(1 ~ 25fps)
Bit Rate
H.264: 20K ~ 16Mbps
Network
Ethernet
RJ-45 (10/100Base-T)
Network Function
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility
ONVIF, PSIA, CGI
Max. User Access
20 users
Smart Phone
iPhone, iPad, Android, Windows Phone
General
Power Supply
DC12V, PoE(802.3af)
Power Consumption
Below 7W
Working Environment
-30°C~+60°C, Less than 95% RH
Ingress Protection
IP66
Vandal Resistance
IK10

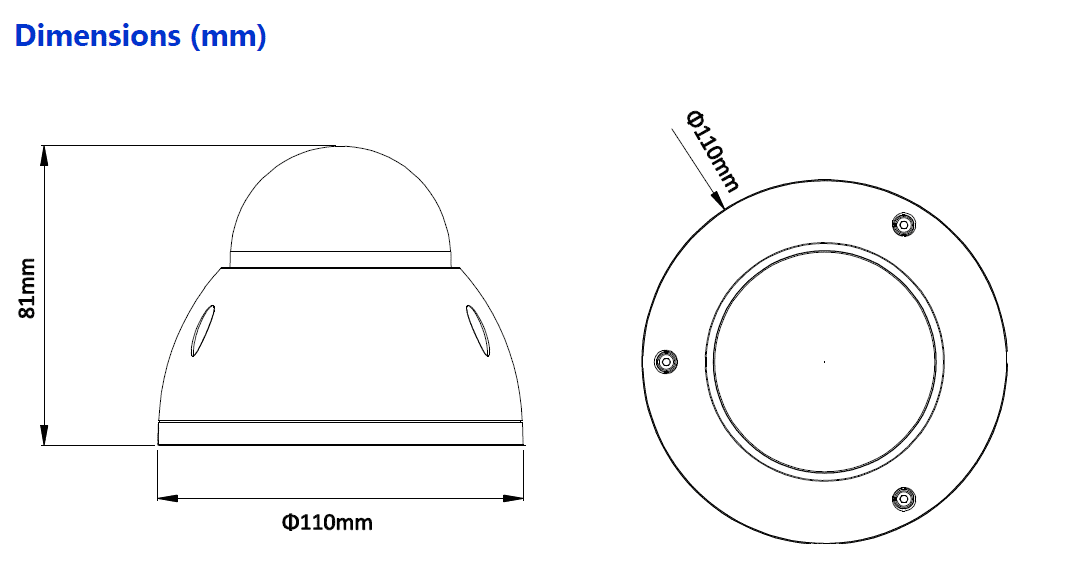

Dimension
Φ110mm x 81mm
Weight
Approx. 550g
