IPC-HFW4631E-SE Dahua 6MP 120dB WDR IP Bullet Camera with 40m Night Vision & PoE
Product Code IPC-HFW4631E-SE

IPC-HFW4631E-SE Dahua 6MP 120dB WDR IP Bullet Camera with 40m Night Vision & PoE

Login for Price
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec

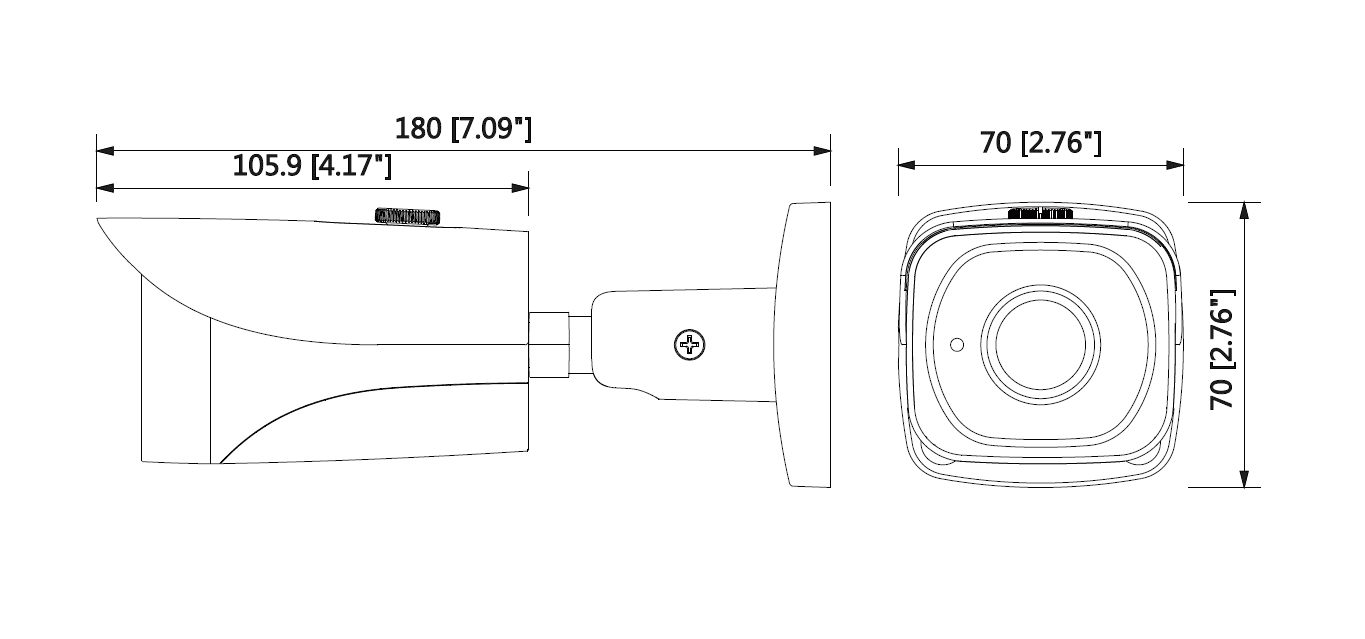

  • Diagram

Key Features

  • 1/2.9” 6Megapixel progressive scan STARVIS™ CMOS
  • H.265 & H.264 triple-stream encoding
  • 20fps@6MP (3072x2048), 25fps@4MP (2688x1520)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 3.6mm fixed lens
  • IR LEDs: 40m
  • Micro SD memory, IP67, PoE

Download

Manufacturers Spec Sheet (PDF)

CAMERA
Image Sensor 1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels 3072(H) x 2048(V)
Scanning System Progressive
Min. Illumination 0.04Lux/F1.6( Color,1/3s,30IRE)
0.4Lux/F1.6( Color,1/30s,30IRE)
0Lux/F1.6(IR on)
S/N Ratio more than 50dB
Max. IR LEDs Length 40m
IR On/Off Control Auto/ Manual
LENS
Lens 3.6mm
Max Aperture F1.6
Angle of View H:69°, V:48°
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
IVS (optional) Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
VIDEO
Compression H.265+ / H.265 / H.264+ / H.264
Streaming Capability 3 Streams
Resolution (3072×2048) / (3072×1728) / (2592×1944) / (2688×1520) / (2560×1440) / (2304×1296) / 1080P (1920×1080) / SXGA (1280×1024) / 1.3M (1280× 960) / 720P (1280×720) / D1 (704×576/704×480) / CIF (352×288/352×240)
Frame Rate Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)
Sub Stream: D1(1~25fps)
Third Stream: 1080P(1~25fps)
Bit Rate H.264: 24K ~ 10240Kbps
H.265: 14K ~ 9984Kbps
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
NETWORK
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Compatibility ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
Edge Storage NAS
Local PC for instant recording
Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Interface
Video Interface n/a
Audio Interface n/a
RS485 n/a
Alarm n/a
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption Max 6.5W
Environmental
Operating Conditions -30°C ~ +60°C, Less than 95% RH
Strorage Conditions -30°C ~ +60°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance n/a
Construction
Casing Metal
Dimension 180mm × 70mm × 70mm
Weight Approx. 0.53kg
