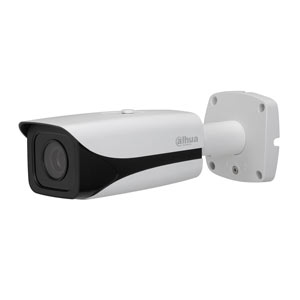

IPC-HFW5200E-Z12 Dahua 1080P 12X Zoom IP Bullet Camera with 50m Night Vision and PoE
Product ID IPC-HFW5200E-Z12

IPC-HFW5200E-Z12 Dahua 1080P 12X Zoom IP Bullet Camera with 50m Night Vision and PoE

£433.50
In Stock 0
Sold out

0 reviews | Write a review
3 Year Warranty
IP CCTV
Happy Bday
Happy Bday
Happy Bday

Free Shipping


  • Summary
  • Full Spec
  • Diagram

Key Features

  • Powerful 12x optical zoom
  • 5.1~61.2mm 12x optical zoom Lens
  • H.264 & MJPEG dual-stream encoding
  • Max 25fps@1080p
  • IR Distance up to 50m
  • Micro SD memory, IP66, PoE

Download

Manufacturers Spec Sheet (PDF)

Need a Junction Box / Bracket:

You can download the Dahua Bracket Guide here.

Image Sensor 1/2.8” 2Megapixel Exmor CMOS
Effective Pixels 1920(H)x1080(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s
Min. Illumination Color: 0.05Lux@F1.6
S/N Ratio more than 50dB
Camera Features
Max. IR LEDs Length 50m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 3D
Privacy Masking Up to 8 areas
Lens
Focal Length 5.1mm ~ 61.2mm (12x optical zoom)
Max Aperture F1.6 ~ F3.0
Focus Control Auto / Manual
Angle of View H: 51.3° ~ 4.64°
Close Focus Distance 100mm ~ 1000mm
Video
Compression H.264 / MJPEG
Resolution 1080P(1920 x 1080) / 720P(1280 x 720) / D1(704 x 576) / CIF(352 x 288)
Frame Rate - Main Stream 1080P (1 ~ 25fps)
Frame Rate - Sub Stream D1/CIF(1 ~ 25fps)
Bit Rate H.264: 32K ~ 8192Kbps
Audio
Compression G.711a / G.711u
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100/1000Base-T)
Network Function IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
Alarm 1/1 channel In/Out
General
Power Supply DC12V, PoE (802.3af)
Power Consumption max 15W
Working Environment -30°C~+60°C / Less than 95% RH
Ingress Protection IP66

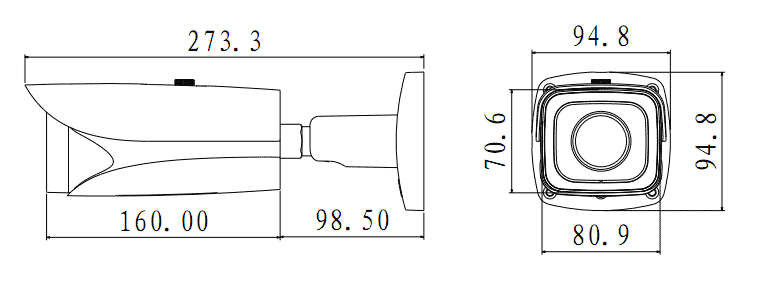

Dimension 273.3mm x 94.8mm x 94.8mm
Weight 1.3kg
