| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Min. Illumination |
0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time |
1/3s ~ 1/100,000s |
| Lens |
2.8mm to 12mm @F1.4, horizontal field of view: 98° to 30° |
| Lens Mount |
Φ14 |
| Day & Night |
ICR |
| Adjustment Range: (Manual) |
Pan:0° - 360°, Tilt: 0° - 65°, Rotation: 0° - 360° |
| Digital noise reduction |
3D DNR |
| WDR |
120dB |
| Compression Standard |
| Video compression |
Main Stream H.264 / H.264+
Sub Stream H.264 / MJPEG |
| H.264 Type |
Main profile / high profile |
| Bit rate |
32 Kbps ~ 16 Mbps |
| Image |
| Max. Image Resolution |
2688 × 1520 |
| Main Stream |
50Hz: 20fps (2688×1520), 20fps (2304×1296), 25fps(1920×1080 / 1280×720) |
| Sub Stream |
50Hz: 25fps(640×360 / 352×288) |
| Image settings |
Saturation, brightness, contrast, sharpeness adjustable through client software or web browser |
| Day/Night Switch |
Support auto, scheduled |
| Others |
Mirror, BLC (area configurable), region of interest (support 1 fixed region) |
| Network |
| Network Storage |
NAS (Support NFS,SMB/CIFS) |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| System Compatibility |
ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| General Function |
One key reset, Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering |
| Interface |
| Communication interface |
1 RJ45 10 M / 100 M Self adaptive Ethernet port |
| General |
| Operating Conditions |
-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25% , PoE (802.3af) |
| Power Consumption |
Max. 11W |
| Weather Proof Ratings |
IP67 |
| IR Range |
up to 30m |

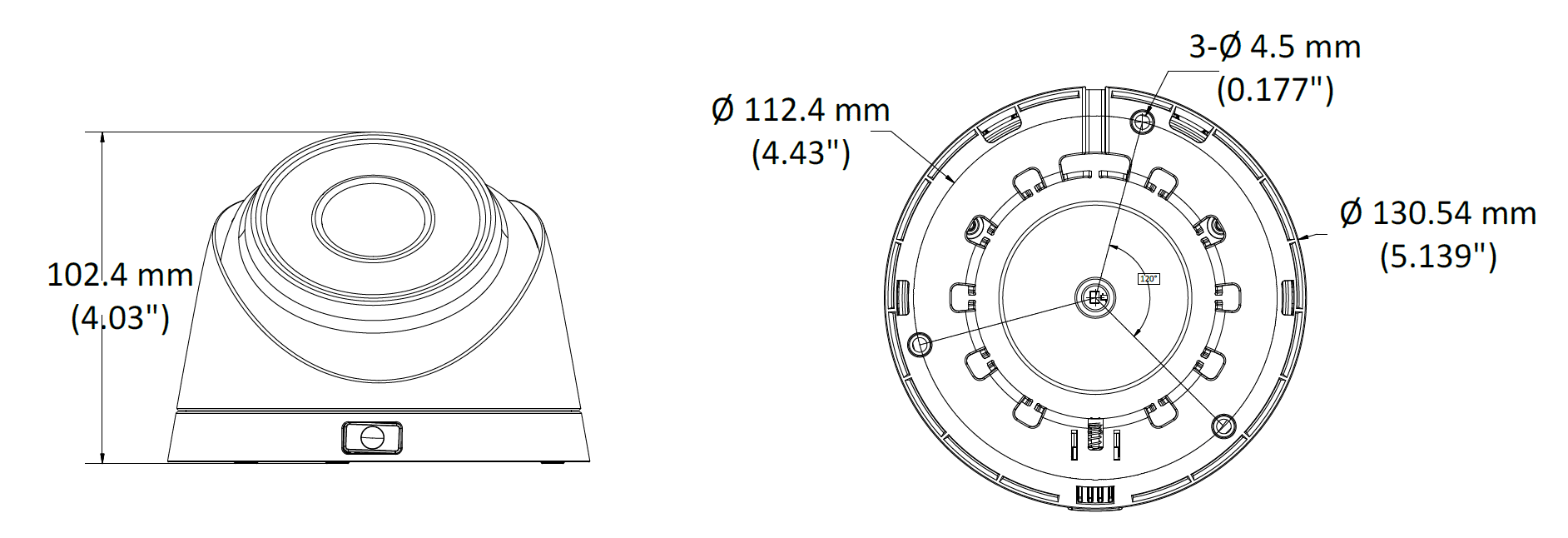

| Dimensions |
Φ130.5 x 102.4mm |
| Weight |
Approx. 485g |
