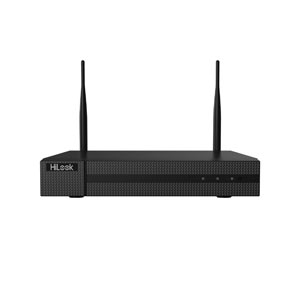

NVR-104MH-D/W HiLook by Hikvision 4 Channel H.265 4MP WiFi NVR
Product ID NVR-104MH-D-W

NVR-104MH-D/W HiLook by Hikvision 4 Channel H.265 4MP WiFi NVR

£65.00
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec

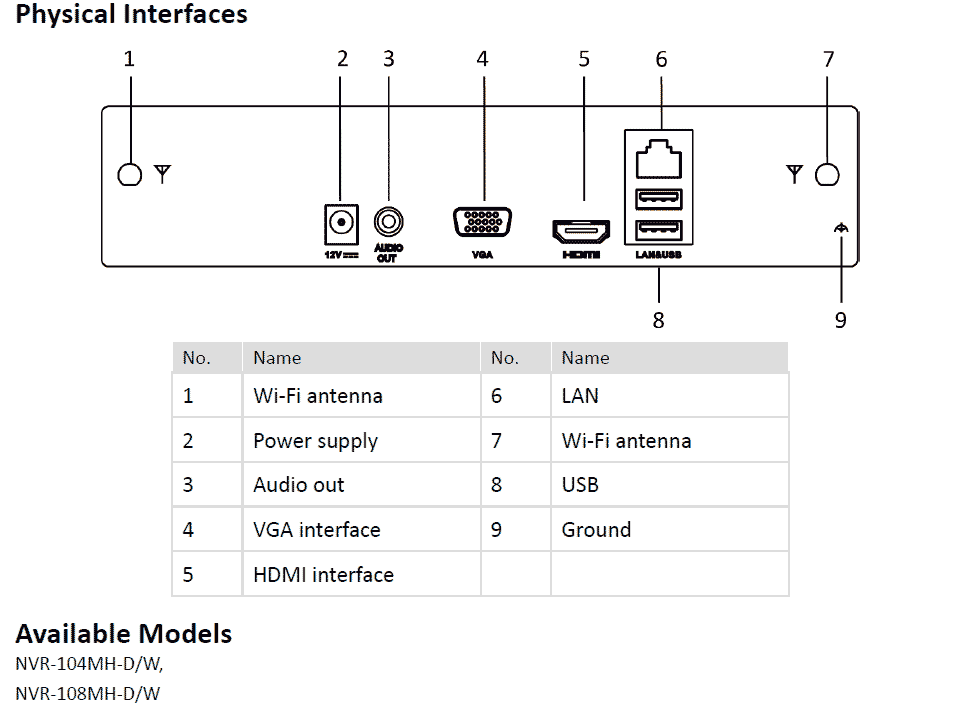

  • Diagram

Key Features

  • Up to 4 IP cameras
  • Live view of the connected camera at up to 4MP resolution
  • H.264, H.265, H.264+, and H.265+ compression
  • 50Mbps
  • Full channel recording at up to 4 MP resolution
  • HDMI/VGA output with up to 1920 × 1080 resolution
  • Up to 4-ch synchronous playback
  • Dual external antenna design offers more powerful and stable signal

Download

Manufacturers Spec Sheet (PDF)

IP video input 4CH
Incoming bandwidth 50Mbps
Outgoing bandwidth 50Mbps
Recording resolution 4 M/3 M/1080p/1.3 M/720p
HDMI / VGA output 1CH, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Decoding format H.265+/H.265/ H.264+/H.264
Live View / Playback resolution up to 4 MP
Synchronous playback 4-ch
Decoding 2-ch@1080p / 1-ch@4 MP
SATA 1 SATA interface
Capacity Up to 6TB
Frequency band 2.4 GHz
Antenna structure 2 × 2MIMO
Transmission speed 144 Mbps
Transmission standard IEEE 802.11b/g/n
Network interface 1, RJ-45 10/100Mbps Ethernet interface
USB interface rear panel: 2, USB2.0
Power supply 12V DC
Consumption Max 12W (without HDD)
Working temperature -10 °C ~ +55 °C
Working humidity 10% ~ 90%
Dimensions (W x D x H) 260 × 246 × 48 mm
Weight Approx. 1Kg (without hdd)
