| Video |
| Imaging Device |
1/3" 4M CMOS |
| Total Pixels |
2,720(H) x 1,536(V) |
| Effective Pixels |
2,688(H) x 1,520(V) |
| Scanning System |
Progressive scan |
| Min illumination |
Color : 0.5Lux B/W : 0Lux (IR LED on) |
| Lens |
| Focal Length (Zoom Ratio) |
2.8mm fixed |
| Max. Aperture Ratio |
F2.2 |
| Angular Field of View |
H : 110.0Ëš / V : 63.0Ëš / D : 128.0Ëš |
| Lens Type |
fixed |
| Mount Type |
Board type |
| Pan / Tilt / Rotate |
| Pan / Tilt / Rotate Range |
0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Operational |
| IR Viewable Length |
20m (65.62ft) |
| Camera Title |
Off / On (Displayed up to 20 characters per line)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
Transparency, Auto scale by resolution |
| Day & Night |
True Day & Night |
| Backlight Compensation |
Off / BLC |
| Wide Dynamic Range |
120dB |
| Digital Noise Reduction |
SSNR (Off / On) |
| Motion Detection |
Off / On (4ea rectangular zones) |
| Privacy Masking |
Off / On (6ea rectangular zones) |
| Gain Control |
Off / Low / Middle / High |
| White Balance |
ATW / AWC / Manual / Indoor / Outdoor |
| LDC (Lens Distortion Correction) |
Off / On (5 levels with min / max) |
| Electronic Shutter Speed |
Minimum / Maximum / Anti flicker |
| Flip / Mirror |
Flip / Mirror / Hallway view |
| Intelligent Video Analytics |
Motion detection with metadata, Tampering, Defocus detection |
| Alarm I/O |
Input 1 / Output 1 |
| Alarm Triggers |
Motion detection, Tampering detection, SD card error, NAS error,
Alarm input, Defocus detection |
| Alarm Events |
File upload via FTP and E-mail, Local storage recording at event,
Notification via E-mail, External output |
| Pixel Counter |
Support (Plug-in viewer only) |
| Network |
| Ethernet |
RJ-45 (10/100BASE-T) |
| Video Compression Format |
H.265, H.264, MJPEG |
| Resolution |
2592 x 1520, 2560 x 1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024,
1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480,
640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate |
H.265/H.264 : Max 20fps at 4M, Max 30fps at under 2M
MJPEG : Max 15fps |
| Smart Codec |
WiseStream |
| Video Quality Adjustment |
H.265/H.264 : Target bitrate level control, MJPEG : Quality level control |
| Bitrate Control Method |
H.265/H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability |
Multiple streaming (Up to 3 profiles) |
| Audio I/O |
Line in |
| Audio Compression Format |
G.711 u-law / G.726 selectable
G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Audio Communication |
Uni-directional audio |
| IP |
IPv4, IPv6 |
| Protocol |
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS,
DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS,
QoS, PIM-SM, UPnP, Bonjour |
| Security |
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication |
| Streaming Method |
Unicast / Multicast |
| Max. User Access |
6 users at unicast mode |
| Storage |
micro SD/SDHC/SDXC Max. 128G, NAS
- Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC |
| Application Programming Interface |
ONVIF Profile S, G, SUNAPI (HTTP API) |
| Webpage Language |
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungarian, Greek |
| Web Viewer |
Supported OS : Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
Non-plugin Webviewer
- Supported Browser : Google Chrome 47, MS Edge 20
- Support Codec : - Video : H.264, MJPEG (Max. 1M 15fps) - Audio : G.711
Plug-in Webviewer
Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only |
| Central Management Software |
SmartViewer |
| Environmental |
| Operating Temp / Humidity |
-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -20°C (-4°F) |
| Storage Temp / Humidity |
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Ingress Protection |
IP66 |
| Vandal Resistance |
IK10 |
| Electrical |
| Input Voltage / Current |
PoE (IEEE802.3af, Class3) / 12V DC |
| Power Consumption |
Max. 6.8W (PoE), Max. 5.7W (12V DC) |
| Mechanical |
| Color / Material |
Ivory / Metal |

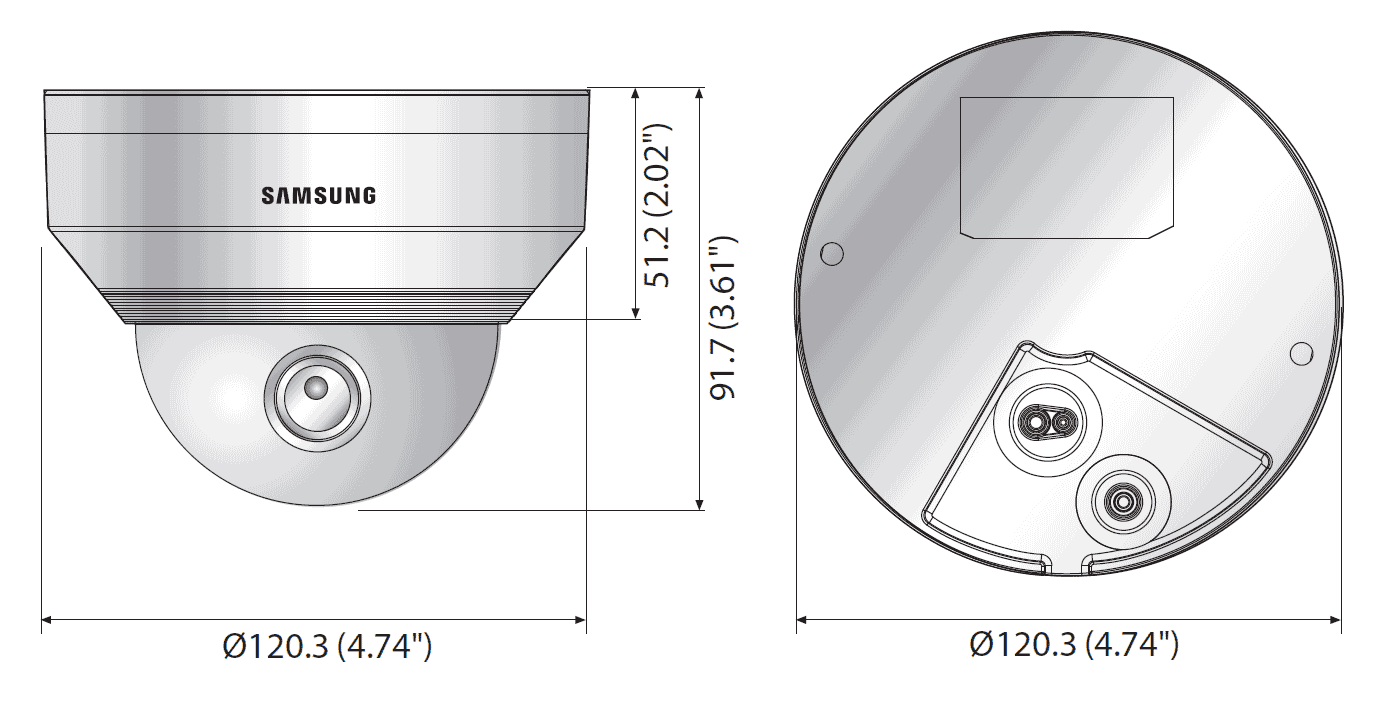

| Dimensions (WxH) |
Ø120.3 x 91.7mm (Ø4.74" x 3.61") |
| Weight |
490g (1.08 lb) |
