Vista VK2 1080MD37W 1080P Full HD Indoor Wireless IP Dome Camera with PoE and Edge storage
Product ID VK2-1080MD37W

Vista VK2 1080MD37W 1080P Full HD Indoor Wireless IP Dome Camera with PoE and Edge storage

£49.99
In Stock 26
0 reviews | Write a review
1 Year Warranty
IP CCTV

  • Summary
  • Full Spec

Description

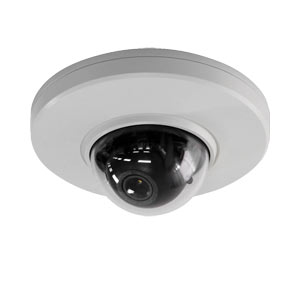

Part of the Vista’s VK2 range of IP products, the VK2-1080MD37W is a Wi-Fi Mini Dome that provides full HD resolution recording, ideal for evidential purposes.

The Wi-Fi capabilities makes it suitable for use with Wi-Fi networks which does not require any cabling between camera and recorder. A Micro SD card can also be used for local edge recording. Triple streaming technology allows one stream for recording at full resolution, one for local viewing and a lowresolution stream for remote viewing.

In addition to Wi-Fi operation the dome can also be hard wired to an IP network and can be powered using PoE (Power over Ethernet) switches..

The dome integrates with the complete range of VK2 control and recording packages, as well as many third party VMS solutions. In addition, the camera complies to ONVIF standards, meaning that any software designed to this specification will be able to view and record the video from the cameras.

Key Features

  • Supports Wireless capability or wired connectivity with PoE if preferred
  • Full 1080P HD resolution
  • 3.7mm Lens - Horizontal FOV 89°
  • Sleek and compact
  • Supports on board Micro SD up to 32Gb (Not Included)
  • PoE

Download

Manufacturers Spec Sheet (PDF)

Manufacturers User Manual (PDF)

Camera
Image Sensor 1/2.8” Progressive Scan - CMOS Sony IMX122
DSP TI DM368
Effective Pixel 1920(H) x 1080(V)
Lens 3.7mm F1.8
Angle of View 89° H x 46° V
Scanning Mode Progressive Scan
Min. Illumination 1.6 Lux
AE/AWB Yes
DNR 2DNR
Colour / Mono Yes
BLC BLC
Video
Video Out Internal J9 connector
Compression H.264=MPEG4 part:10/BP/MP/HP,
MPEG4=part:2/ASP/SP, & MJPEG
Resolution Supported 1920x1080(Full HD), 1280x720(HD), 720x480(NTSC), 720x576(PAL), 640x480(VGA), 352x288(CIF), 320x240(QVGA)
Frame Rate 30fps @ H.264 1080p & 720p (PAL).
Multiple Streaming Triple (2x H.264 and 1x MJPEG)
Input / Output
Audio In/Out No
Alarm In/Out Yes
Ethernet 10/100Mbps
Local Storage Micro SD (Up to 32GB max’ Class 6 or better)
Additional Features
Motion Detection Yes (Total 16 Include/Exclude windows)
Event Buffering (Pre & Post) Yes (FTP-30/30s) Record-10/10s)
Privacy Masking 8 Zones
Cross Web Browser IE, Safari, Firefox, Google Chrome
FTP Image Upload Yes
ONVIF Certificate Yes
System
Network Time Sync Yes
Zero Configuration Yes
Security Password Protection, IP Filtering, HTTPS, SSL
Network
Max. Connections 10
Protocols IPv4/IPv6, Manual, TCP/IP,UDP,HTTP,RTP,RTSP,NTP,DHCP,SMTP, DDNS, HTTPS,RTCP,FTP,Zeroconfig, Bonjour.
NAS Support Yes
JPEG push Yes
DDNS Yes
Remote Client Web, SmartManager, VK2-Client, VK2-Remote
Wireless
Security WEP, WPA2, WPA-PSK, WPS. (Software WPS setup)
Power Consumption
PoE 48VDC 0.093mA 4.5Watts. (PoE 802.3af Class 0)
External Power 12VDC 500mA
Power Consumption Approx’ 240mA 12VDC (running current) Max. 4W
Environmental
Operating Conditions -10º~ +50º / 0~80% RH
Ingress Protection Indoor use only.
Dimensions 55(H) x 115(ø)mm
Weight Approx. 235g
