ALARM-D201P10-WE HiLook by Hikvision Wireless PIR Detector with Pet Immunity

About the ALARM-D201P10-WE

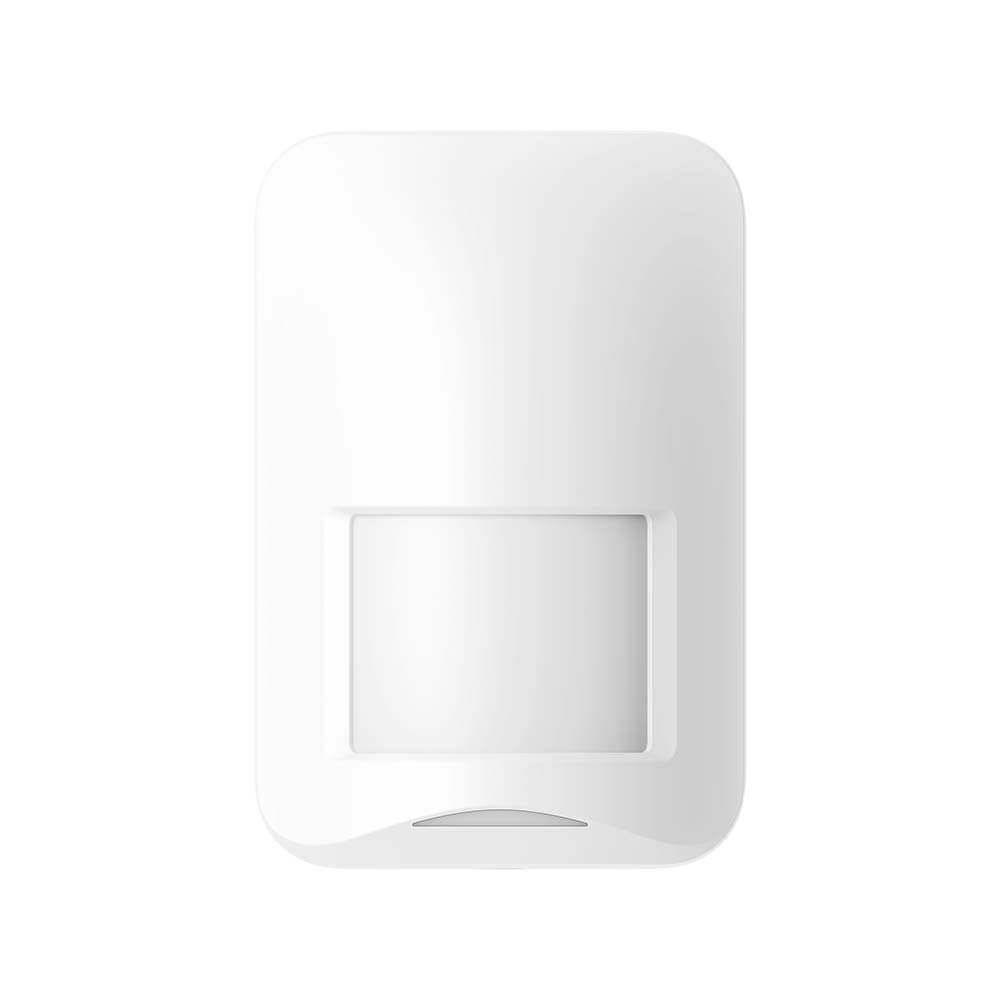

The ALARM-D201P10-WE is a HiLook by Hikvision wireless PIR motion detector with pet immunity.

It covers 10m across a 90 degree angle and ignores pets up to 24kg on its low setting. A light filter stops sunlight and headlights causing false alarms, and the sealed optics keep dust and insects out.

It runs for around two years on 2 AA batteries and reports low battery and tampering to the panel. Mount it indoors at 2m to 2.4m high.

ALARM-D201P10-WE Key Features

• 10 m detection range at 90° across 78 detection zones
• Pet immunity up to 24 kg on the low sensitivity setting
• Three sensitivity settings, high, auto and low
• 3500 lux white light filter against sunlight and headlights
• Sealed optics to keep dust and insects out
• Digital signal processing to cut false alarms
• Fully supervised two-way device with tamper and low battery reporting
• Around two years from 2 x AA batteries
• 868 MHz wireless with frequency hopping against jamming
• Mounts indoors at 2 m to 2.4 m

Optional brackets

• DS-PDB-IN-Wallbracket, internal wall mounted bracket
• DS-PDB-IN-Ceilingbracket, internal ceiling mounted bracket
• DS-PDB-IN-UBKT2, internal universal bracket

Download

Manufacturers Spec Sheet (PDF)
