Clearance Hikvision 4 Channel 1080P HD TVI Hybrid DVR (12 month)

Product ID CL-DS-7304HGHI-SH

£60.00

In Stock 0

**Clearance** Hikvision 4 Channel 1080P HD TVI Hybrid DVR (12 month)

Up Grade HDD

Recording times (in Days) with 2000GB HDD

Cameras Connected	2MP (1080P HD) resolution		5MP resolution		8MP resolution
Frame rate (per channel)	15fps	25fps	15fps	25fps	15fps	25fps
2 cameras	73	44	32	19	19	11
4 cameras	36	22	16	9	9	5
8 cameras	18	11	8	4	4	2
16 cameras	9	5	4	2	2	1

The above is based on a 2000Gb HDD in H.265, other hard drives will record for different periods of time for example a 4000Gb would record for double the above times and a 1000Gb would record for half the above times.

Recording times are only a guide and will vary dependent on the actually scene being recorded.

£60.00

Free Shipping

Summary
Full Spec
Diagram

Please be aware this is a Clearance item.

This has been replaced with newer models and is being cleared.

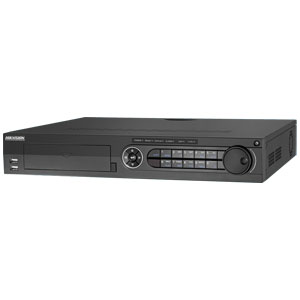

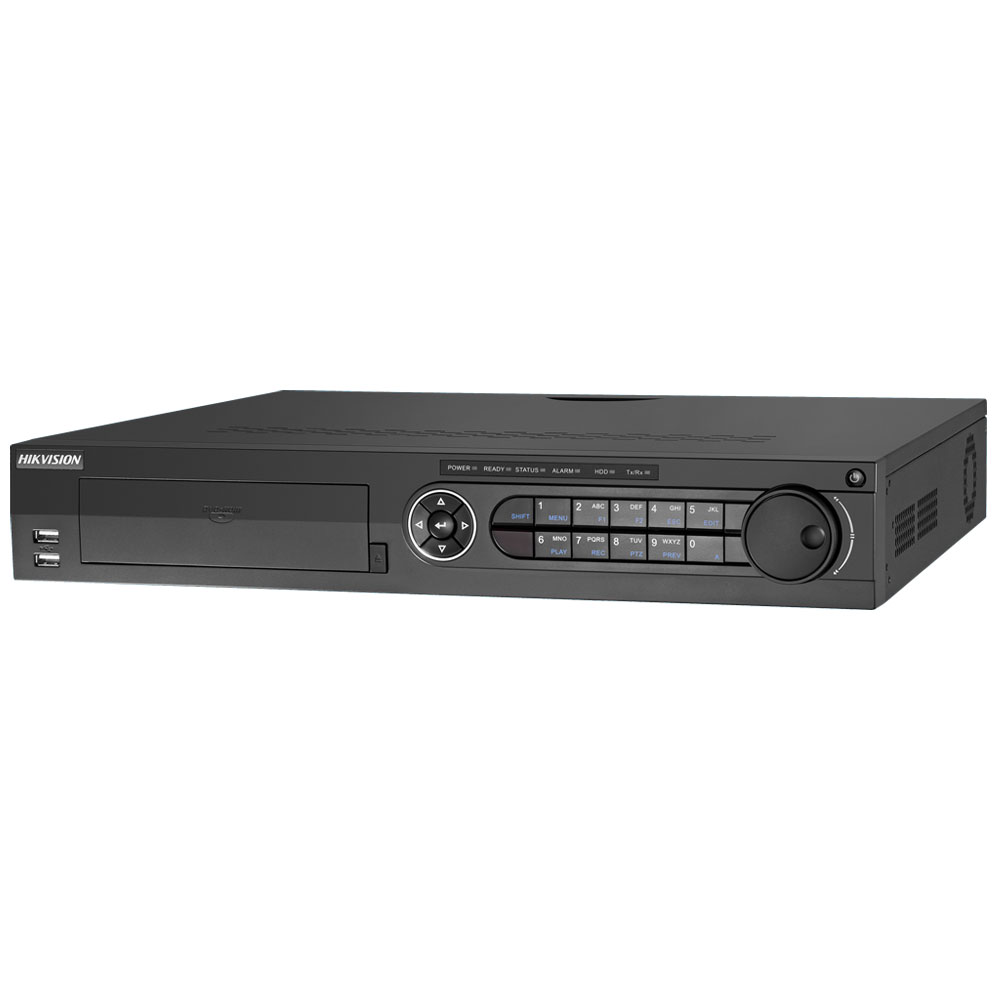

The DS-7304HGHI-SH is a Hikvision 4 channel 1080p HD-TVI DVR. It's a clearance item with a 12 month warranty.

It records HD-TVI and analogue cameras, at 720p in real time or 1080p at 12.5 frames per second, and takes a hard drive of up to 16TB (not included). It has HDMI and VGA outputs and works with the Hik-Connect app.

Sold with 12 month warranty.

Key Features

Support both HD-TVI and analog cameras with adaptive access
Full channel 720P resolution real-time recording
12.5fps recording on 1080P
HDMI and VGA output at up to 1920x1080P resolution
Long transmission distance over coax cable
Support up to 4-ch synchronous playback at 1080P resolution
Internet & Smart Phone compatible
Up to 16TB Storage

Download

Manufacturers Spec Sheet (PDF)

Compatibility

HD-TVI: Any Hikvision HD-TVI Camera
Analogue: Any Analogue CCTV Camera

Video / Audio Input
Video compression	H.264
Analog and HD-TVI Video Input	4CH; BNC interface (1.0Vp-p, 75 Ω)
Supported Camera Types	720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
Audio compression	G.711u
Audio input / Two-way audio in	4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
HDMI / VGA output	output 1920 x 1080 / 60 Hz,1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
Encoding resolution	Main stream: 1080P(non-real-time) / 720P / VGA / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame rate	Main stream: 1/16FPS ~ Real time frame rate Sub-stream: 1/16FPS~ Real time frame rate
Video bit rate	32 Kbps - 6 Mbps
Audio output	2-ch, RCA (Linear, 1 KΩ, for VGA output and CVBS output respectively)
Audio bit rate	64 Kbps
Dual-stream	Support
Stream type	Video, Video & Audio
Synchronous playback	4CH
Playback Resolution	1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network Management
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk
SATA	4 SATA interfaces for 4 HDDs; 1 eSATA interface
Capacity	Up to 4 TB capacity for each disk
External Interface
Network interface	1; 10M / 100M /1000M self-adaptive Ethernet interface
Serial interface	RS-232, RS-485, Keyboard
USB interface	3, USB2.0
Alarm in / out	16 / 4
General
Power supply	100 ~ 240VAC, 47 ~ 63HZ
Consumption	Max 30W
Working temperature	-10 °C ~ +55 °C
Working humidity	10% ~ 90%
Chassis	19-inch rack-mounted 1.5U chassis

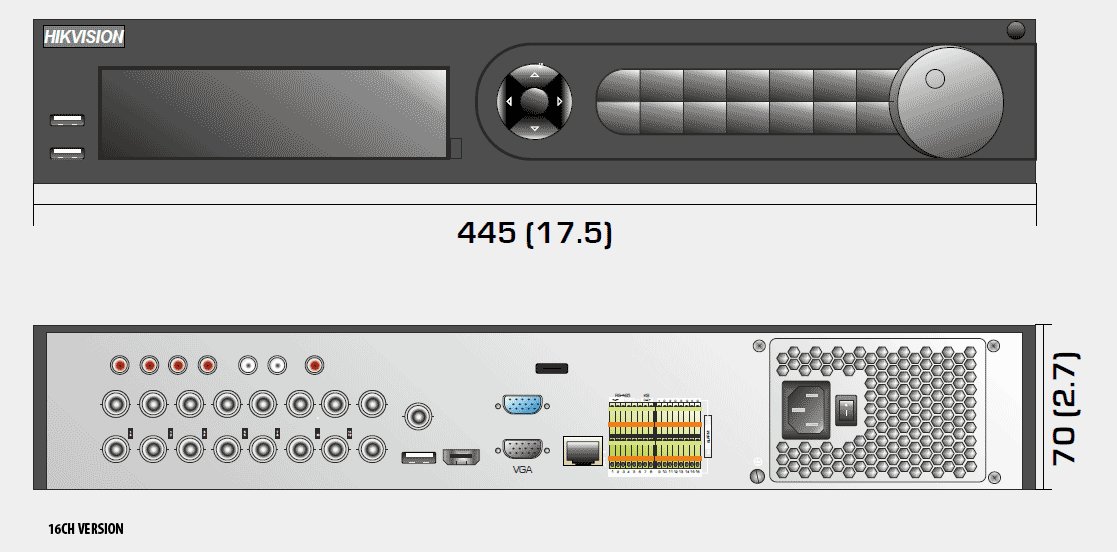

Dimensions (W x D x H))	445 x 390 x 70 mm
Weight	Approx. 5Kg
