CAMERA
SPECIFICATION	IPC-CMAX-FG36
Image Sensor	1/2.5" Progressive Scan CMOS Sensor
Min. Illumination	0.05 Lux (F1.2), 0 Lux (IR on)
Lens / Lens Mount	2.8mm@ horizontal FOV:97°, M14
IR Range	30m
Shutter Time	Auto, 1/25 ~ 1/10000s
Day/Night	IR cut filter with auto switch
Wide Dynamic Range	WDR & DWDR
Digital Noise Reduction	2D / 3D DNR
COMPRESSION STANDARD
Video Compression	H.264 / H.265 / H.265+
H.264 Codec Profile	Base / Main / High profile
H.265 Codec Profile	Main profile
Video Bit Rate	11 Kbps ~ 10Mbps
Audio Compression	n/a
Audio Bit Rate	n/a
Max. Image Resolution	3840 x 2160 (8MP,15fps)
Frame Rate	Main Stream: 8MP@15fps, 5MP, 4MP, 3MP, 1080P, 960P@25/30fps Sub Stream: 720P, D1, CIF@25/30fps Third stream: CIF@25/30fps
Smart Functions*	Line crossing, Area intrusion, Unattended object, Object missing, Region entrance, Region exiting, Fast moving, Loitering detection, People gathering detection, Parking detection, Blurred detection, Scene change detection, Audio exception detection, Crossin line statistics, Face detection *All Smart features need to be set directly via the camera web interface (not via NVRs)
NETWORK
Network Storage	NAS (NFS/CIFS)
Protocols	TCP/IP, ICMP, HTTP, DHCP DNS, DDNS, UDP, RTP, RTSP, RTCP, DNS, DDNS, DHCP, FTP, PPPOE, SMTP, UPNP, IGMP, SMTP, P2P, Bonjour
Access Standard	Onvif (Profile S), CGI
INTERFACE
Communication Interface	1 RJ45 10M / 100M Ethernet Port
GENERAL
Operating Conditions	-30°C ~ +60°C Humidity 90% or less (non-condensing)
Power Supply	DC12V ± 10%
POE Supply	PoE (802.3af)
Power Consumption	Max. 3W
Weather Proof	IP67

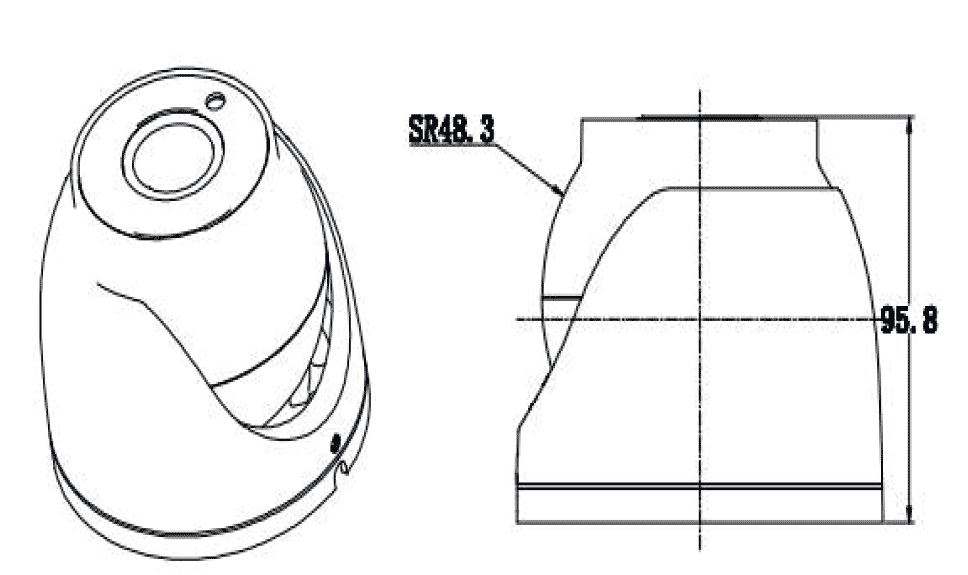

Dimensions	ø112*95.8mm
Weight	810g

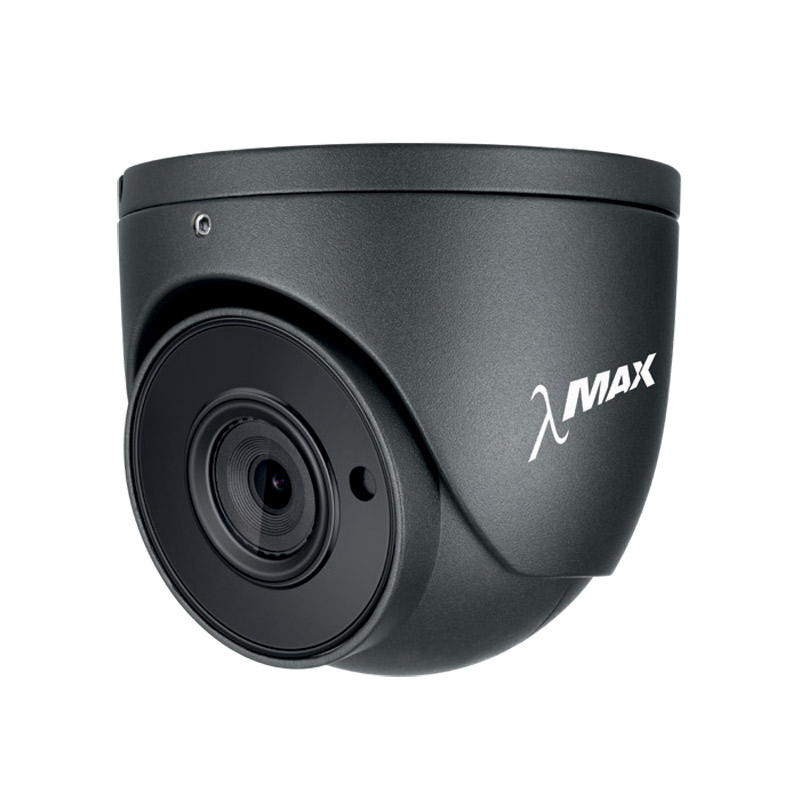

Cortex Max 8MP Fixed Eyeball IP PoE Camera with 30m Night Vision (Grey)

About the IPC-CMAX-FG36

Secure Your Property with the Cortex Max 8MP Fixed Eyeball IP PoE Camera

IPC-CMAX-FG36 Key Features
