| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Min. Illumination |
0.01Lux @ F1.2, AGC ON , 0.028Lux @ F2.0, AGC ON, 0 Lux with IR |
| Shutter time |
1/3 s to 1/10,000 s |
| Lens |
2.8mm @ F2.0 angle of view: 106° |
| Lens Mount |
M12 |
| Adjustment Range |
Pan: -90° ~ 90°, Tilt: 0° ~ 75° |
| Day & Night |
IR cut filter with auto switch |
| WDR |
120dB |
| Digital noise reduction |
3D DNR |
| Compression Standard |
| Video compression |
H.264 / MJPEG / H.264+ |
| H.264 codec profile |
Main profile |
| Bit rate |
32 Kbps ~ 16 Mbps |
| Dual Stream |
Yes |
| Image |
| Max. Image Resolution |
2688 × 1520 |
| Frame rate |
50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) |
| Image settings |
Rotate Mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser |
| BLC |
Yes, zone configurable |
| ROI |
Support |
| Network |
| Network Storage |
NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger |
Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function |
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering, Anonymous access |
| System Compatibility |
ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |

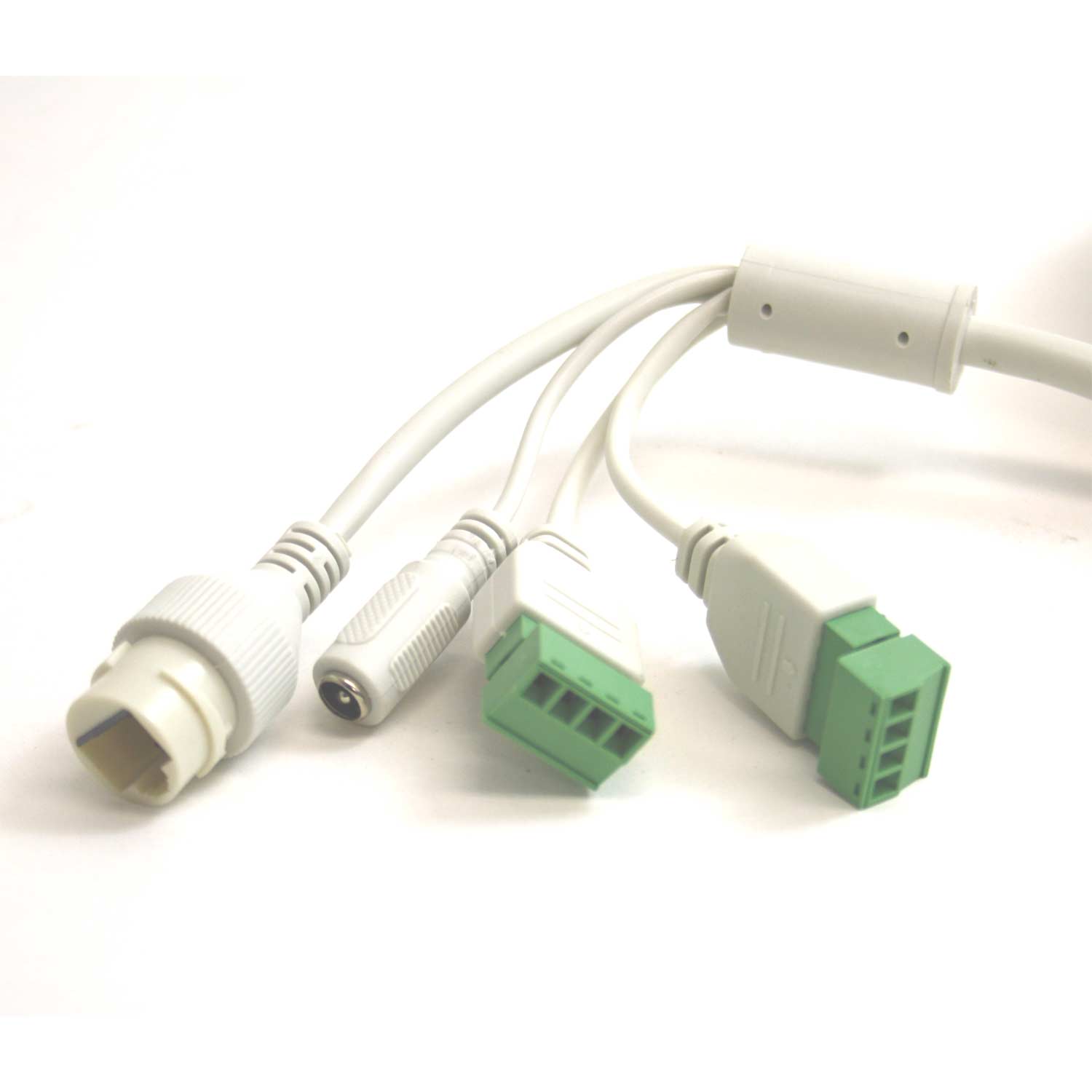

| Interface |
| Audio |
1-ch 3.5 mm audio in (Mic in/Line in)/out interface |
| Communication interface |
1 RJ45 10 M / 100 M Ethernet interface |
| Alarm |
1x alarm I/O |

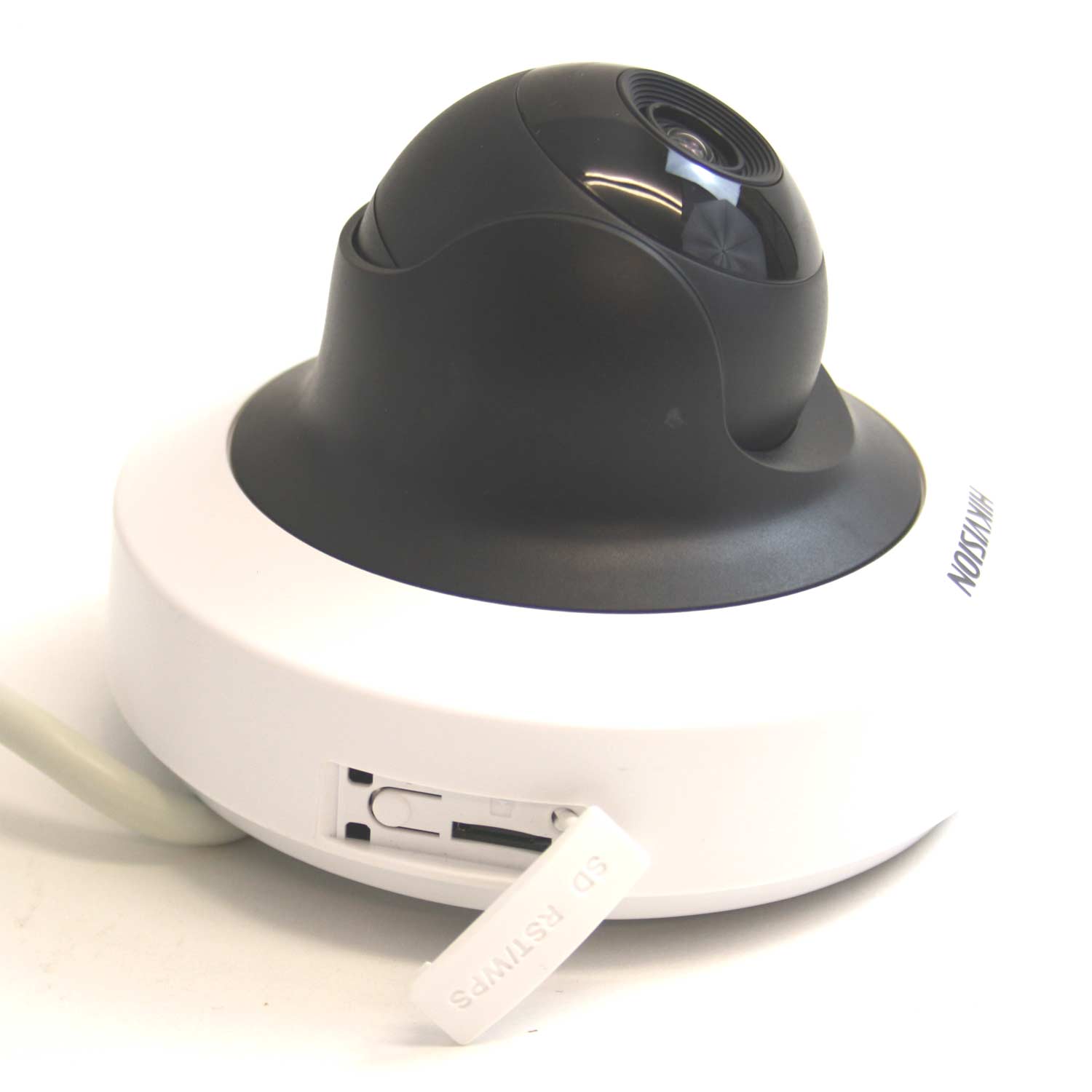

| On-board storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button |
Yes |
| Wi-Fi |
| Wi-Fi standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency range |
2.4 GHz ~ 2.4835 GHz |
| Channel bandwidth |
Support 20/40 MHz |
| Modulation Mode |
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmit Power |
11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps |
| Wireless Range |
50m(depend on environment) |
| General |
| Operating Conditions |
-10 °C ~ 40 °C (14°F ~ 104 °F) humidity 90% or less (non-condensing) |
| Power Supply |
12 VDC ± 10% , PoE (802.3af Class3) |
| Power Consumption |
Max. 5W (Max. 7 W with IR cut filter on, max. 9W with pan & tilt rotation) |
| Weather Proof Ratings |
n/a |
| IR Range |
up to 10m |

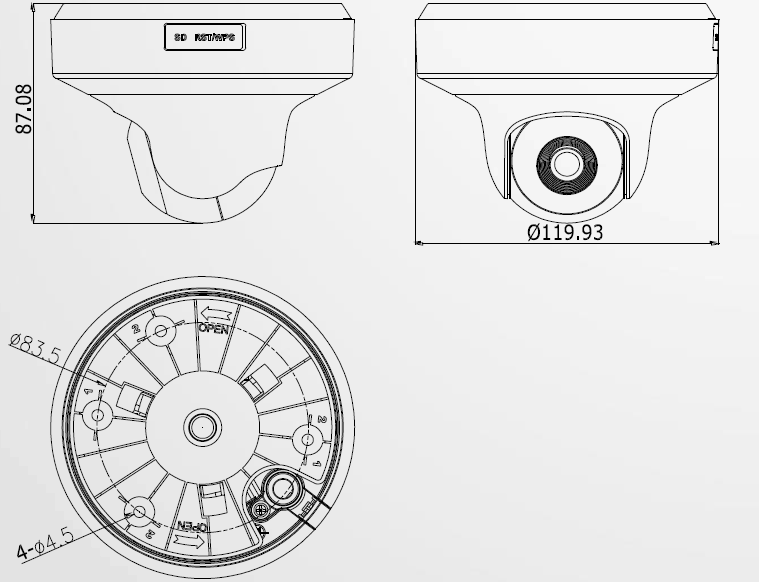

| Dimensions |
Φ119.93 × 87.08mm |
| Weight |
Approx. 500g |
