DS-2CE56H0T-VPITE Hikvision HD TVI 5MP Dome Camera with 20M EXIR Night Vision (PoC / 3.6mm Lens)

Product ID DS-2CE56H0T-VPITE-36MM

0 reviews | Write a review

Trade Only Item

In Stock 0

DS-2CE56H0T-VPITE Hikvision HD TVI 5MP Dome Camera with 20M EXIR Night Vision (PoC / 3.6mm Lens)

Add Plug n Play Cable

Add Power Supply

Trade Only Item

Free Shipping

Summary
Full Spec
Diagram

About the DS-2CE56H0T-VPITE-36MM

The DS-2CE56H0T-VPITE is a Hikvision 5MP vandal resistant dome camera for HD-TVI (coax) CCTV systems. It can be powered over the coax from a compatible PoC DVR.

EXIR infrared reaches up to 20m. The 3.6mm lens gives a slightly closer view than a 2.8mm. It's weatherproof (IP67) and impact rated (IK10).

Key Features

5 Megapixel high-performance CMOS
3.6mm fixed lens - FOV 80.1°
Analog HD output, up to 5MP resolution
True Day/Night, OSD Menu, 2D DNR
EXIR technology, up to 20m IR distance
IP67 weatherproof, IK10
Up the Coax(HIKVISION-C Protocol)
PoC.af (Power over Coax)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

Compatible with Hikvision HD-TVI DVRs capable of 5MP or above recording.

Camera
Image Sensor	5MP CMOS Image Sensor
Effective Pixels	2560(H) x 1944(V)
Min. Illumination	0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time	1/25 s to 1/50,000 s
Lens	3.6mm - Angle of View: 80.1°
Lens Mount	M12
Adjustment Range	Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355°
Day & Night	IR cut filter with auto switch
Video Frame Rate	PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
Synchronization	Internal synchronization
Menu
AGC	Support
D/N Mode	Auto / Color / B/W
Auto White Balance	Auto/MWB
BLC	Support
DWDR (Digital Wide Dynamic Range)	Support
Language	English, Chinese
Functions	Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output	1 HD analog output
General
Operating Conditions	-40 °C - 60 °C Humidity 90% or less (non-condensing)
Power Supply	12V DC / PoC.af
Power Consumption	Max. 5.4W
Vandal Ratings	IK10
Weather Proof Ratings	IP67
Material	Metal
IR Range	up to 20m
Communication	Up the coax Protocol: HIKVISION-C (TVI output)

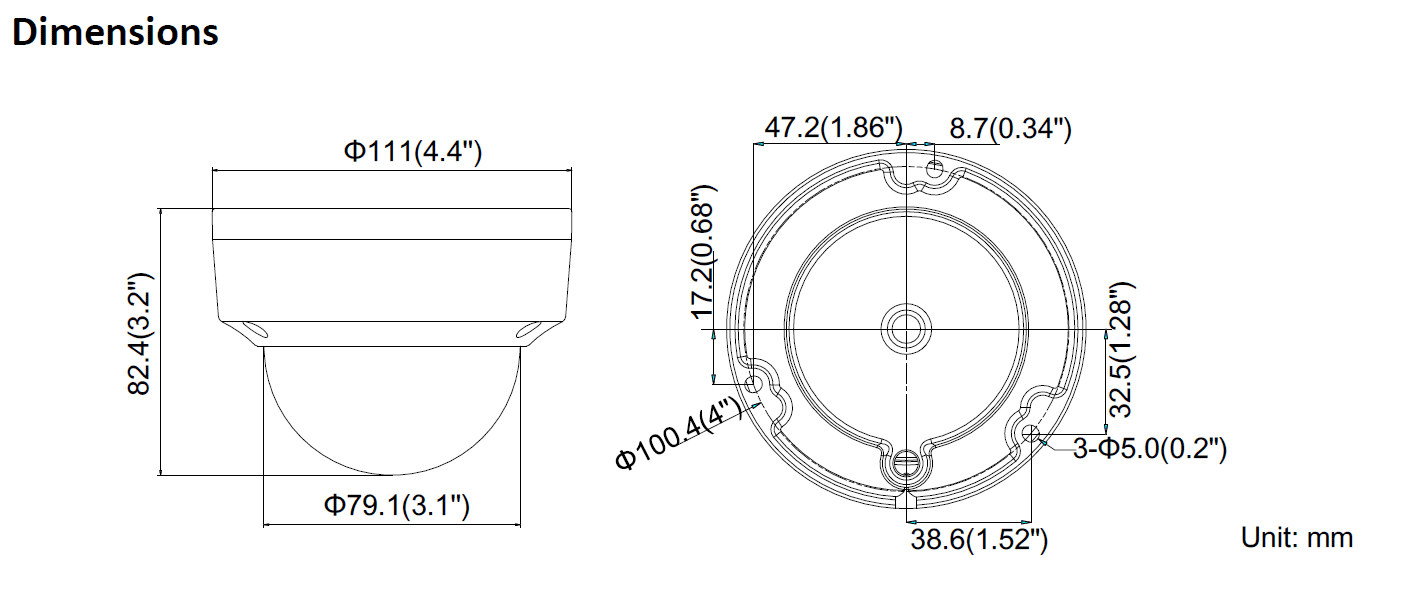

Dimensions	Ø 111 mm × 82.4 mm
Weight	Approx. 505g
